EXHAUST PIPE

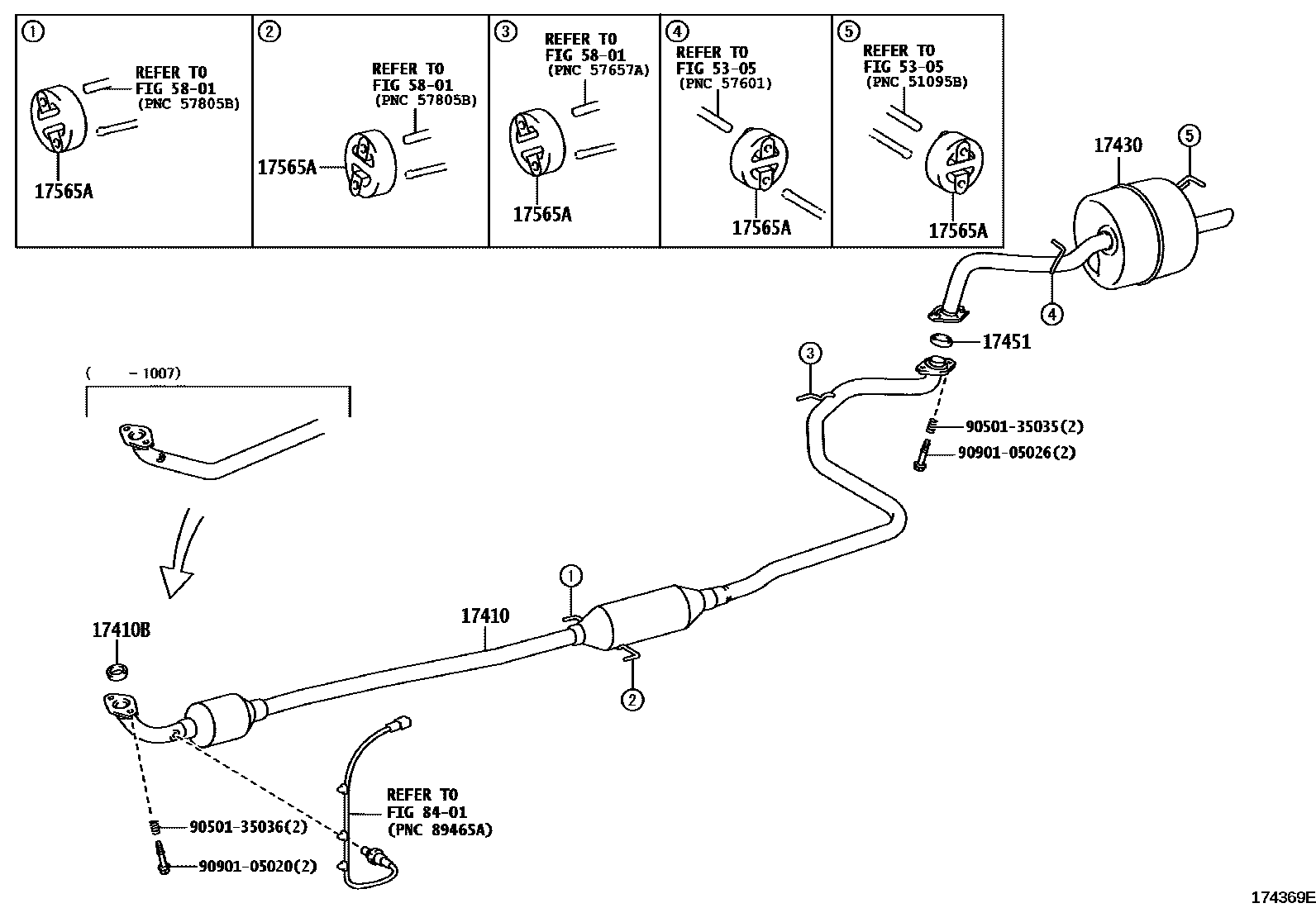

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-21630i200501-200912
sub17410-21631
main17410-21631i201001-201008
main17410-21640i200501-200705
main17410-21641i200705-201008
main17410-21840i201008-201012
main17410-21B60i201008-201012
main17410-23150i200501-201001
sub17410-23151
main17410-23151i201001-201008
main17410-23190i201008-201012
main17410-40090i200501-200606
sub17410-40091
main17410-40091i200607-200611
sub17410-40092
main17410-40092i200612-200708
sub17410-40093
main17410-40093i200708-201008
main17410-40210i201008-201012
17410BGASKET, EXHAUST PIPE
main17451-21070i200501-201012
main17451-40010i200501-201012
17430PIPE ASSY, EXHAUST, TAIL
main17430-21500i200501-200611
sub17430-21501
main17430-21501i200612-201012
sub17430-21502
main17430-21510i200501-200806
sub17430-21511
main17430-21511i200807-201012
main17430-21550i200501-201012
sub17430-21551
main17430-40050i200501-200708
sub17430-40051
main17430-40051i200708-201012
17451GASKET, EXHAUST PIPE
main17451-23040i200501-200708
sub17451-23041
main17451-23041i200708-201009
sub17451-23042
main17451-23042i201010-201012
sub17451-23043
main17451-40020i200501-200606
sub17451-40031
main17451-40030i200607-200611
sub17451-40031
main17451-40031i200612-201010
sub17451-40032
main17451-40032i201011-201012
main90917-06081i200501-201012
main90917-06083i200501-200704
main90917-06089i200705-201012
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-40010i200501-201012
sub17565-47010
5305
5801
8401
9050135035
main90501-35035
9050135036
main90501-35036
9090105020
main90901-05020
9090105026
main90901-05026

12 parts on this diagram · 4 diagrams in section
