WATER PUMP

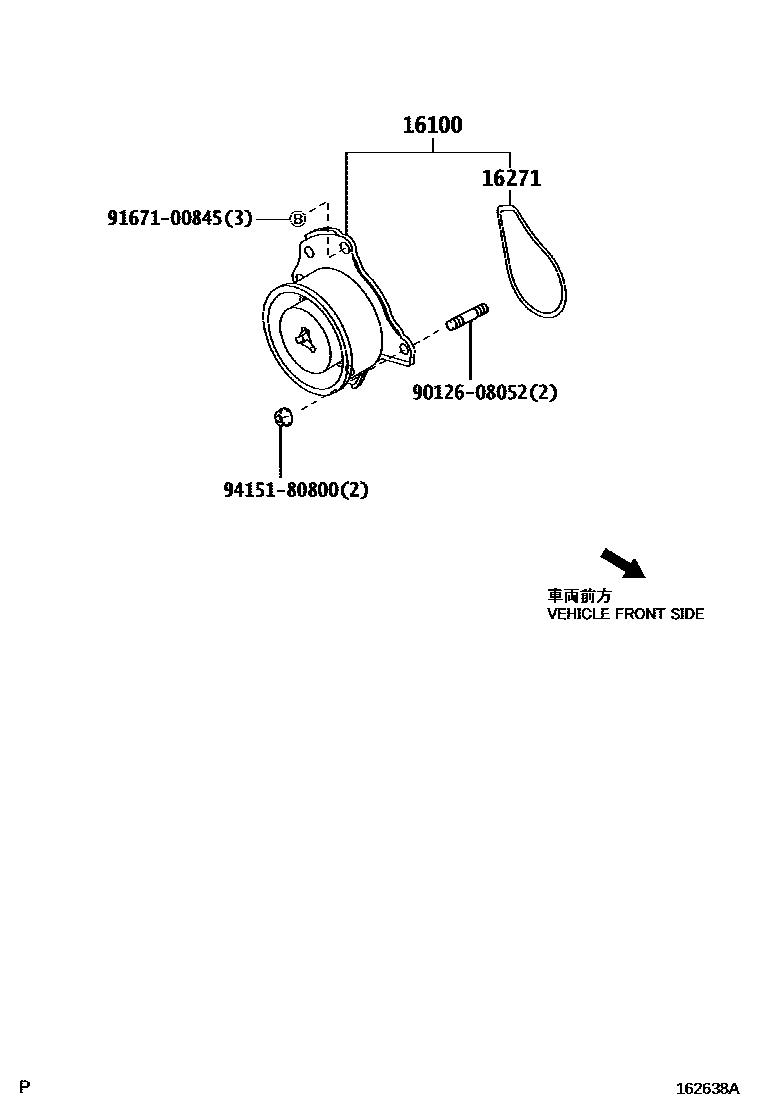

Parts diagram
16100PUMP ASSY, ENGINE WATER
main16100-29116i200501-200704
sub16100-29117
main16100-29117i200705-201012
main16100-29155i200501-200506
sub16100-29156
main16100-29156i200506-201012
sub16100-29157
main16100-29205i200501-200506
sub16100-29206
main16100-29206i200506-200907
sub16100-29156
main16100-80001i200501-200508
sub16100-80007
sub91551-00820
sub91551-00845
sub91551-00850
main16100-80003i200708-200811
sub16100-80007
sub91551-00820
sub91551-00845
sub91551-00850
main16100-80003i200508-200708
sub16100-80007
sub91551-00820
sub91551-00845
sub91551-00850
main16100-80007i200811-201012
16271GASKET, WATER PUMP
main16271-21020i200501-201012
sub16271-21021
main16271-23020i200501-200805
sub16271-23030
main16271-23030i200805-201012
main16271-40020i200501-201012
9012608052
main90126-08052
9167100845
main91671-00845
9415180800
main94151-80800

5 parts on this diagram · 4 diagrams in section
