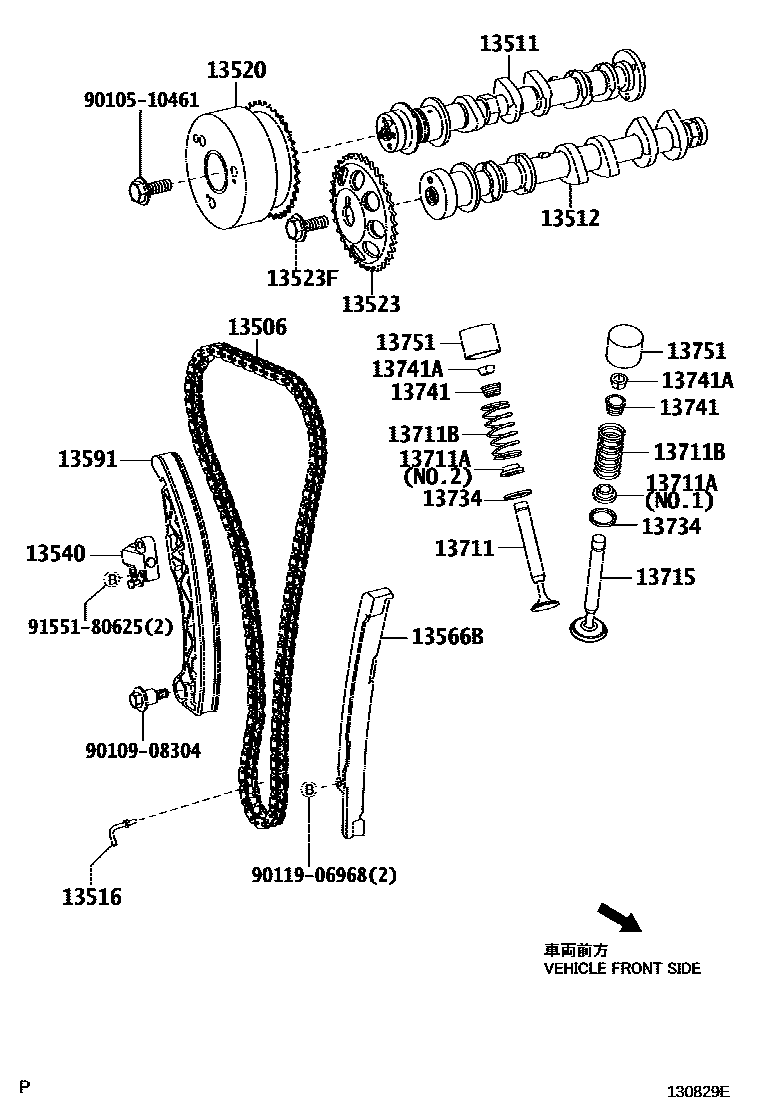

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
9010510461
9010908304
9011906968
9155180625
22 parts on this diagram · 4 diagrams in section
