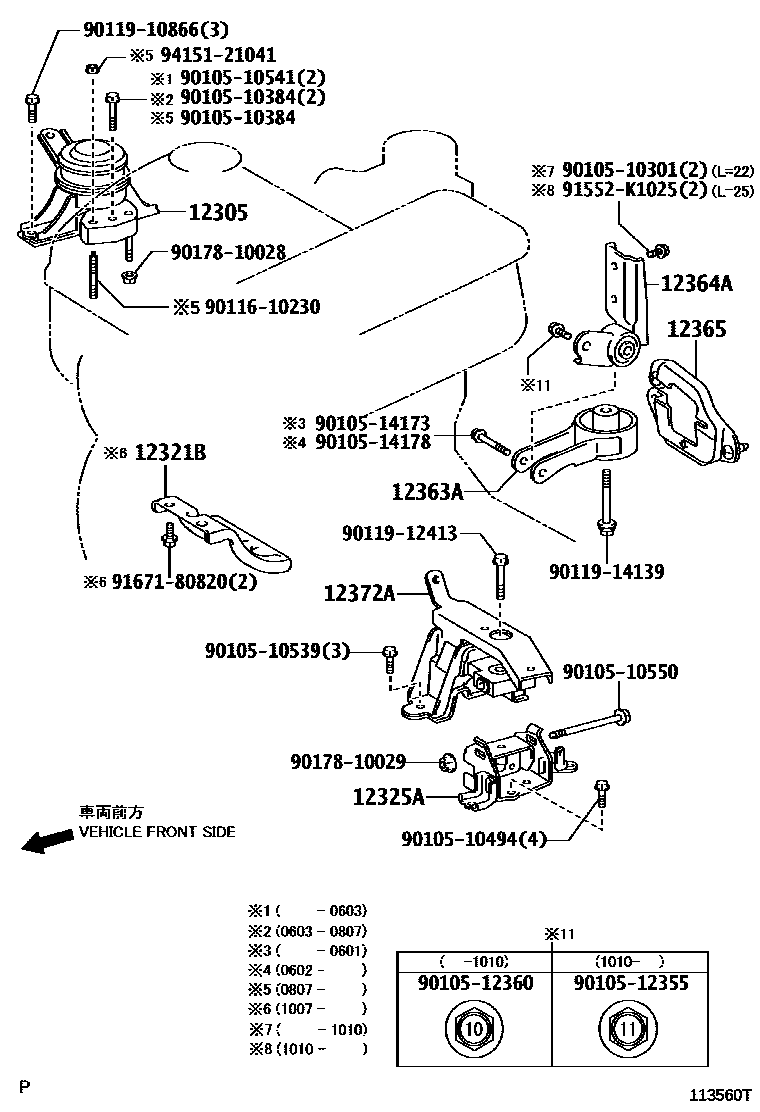

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21200i1NZFE..NCP91..5F200501-201012

main12305-21210i1NZFE..NCP91..CVFC..RS200501-201012

main12305-23060i2SZFE..SCP90..F,ILL,U200501-201012

main12305-40010i1KRFE..KSP90200501-200603

sub12305-40060

sub90105-10384

main12305-40060i1KRFE..KSP90200603-201010

sub12305-40110

main12305-40110i1KRFE..KSP90201011-201012

sub12305-40111

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-52020i1NZFE..NCP91..5F200501-201012

main43498-52030i2SZFE..SCP90200501-201012

main43498-52080i1KRFE..KSP90201007-201012

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21160i1NZFE..NCP91..5F200501-200508

sub12325-21230

sub12351-21090

sub90179-06007

main12325-21170i1NZFE..NCP91..CVFC200501-201012

main12325-21180i2NZFE..NCP95200501-201012

main12325-21230i1NZFE..NCP91..5F200508-201008

main12325-23060i2SZFE..SCP90..F,ILL,U200501-201012

main12325-40020i1KRFE..KSP90200501-201012

12363AROD, ENGINE MOVING CONTROL

main12363-21040i1NZFE..NCP91..5F200501-201008

main12363-21050i1NZFE..NCP91..CVFC200501-201012

main12363-21080i2NZFE..NCP95200501-201012

main12363-23010i2SZFE..SCP90200501-201012

main12363-40020i1KRFE..KSP90200501-201012

12364AROD, ENGINE LATERAL CONTROL

main12364-21010i1NZFE..NCP91..CVFC..RS200501-201012

main12364-21040i2NZFE..NCP95200501-201012

main12364-40010i1KRFE..KSP90200501-201012

12365COVER, ENGINE MOVING CONTROL ROD

main12365-40010

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21130i1NZFE..NCP91..5F200501-200901

sub12372-21131

main12372-21131i1NZFE..NCP91..5F200902-201008

main12372-21140i1NZFE..NCP91..CVFC200501-201012

main12372-21150i2NZFE..NCP95200501-201012

main12372-23080i2SZFE..SCP90200501-201012

main12372-40020i1KRFE..KSP90200501-201012

9010510301

main90105-10301

9010510384

main90105-10384

9010510494

main90105-10494

9010510539

main90105-10539

9010510541

main90105-10541

9010510550

main90105-10550

9010512355

main90105-12355

9010512360

main90105-12360

9010514173

main90105-14173

9010514178

main90105-14178

9011610230

main90116-10230

9011910866

main90119-10866

9011912413

main90119-12413

9011914139

main90119-14139

9017810028

main90178-10028

9017810029

main90178-10029

91552K1025

main91552-K1025

9167180820

main91671-80820

9415121041

main94151-21041

26 parts on this diagram · 5 diagrams in section
