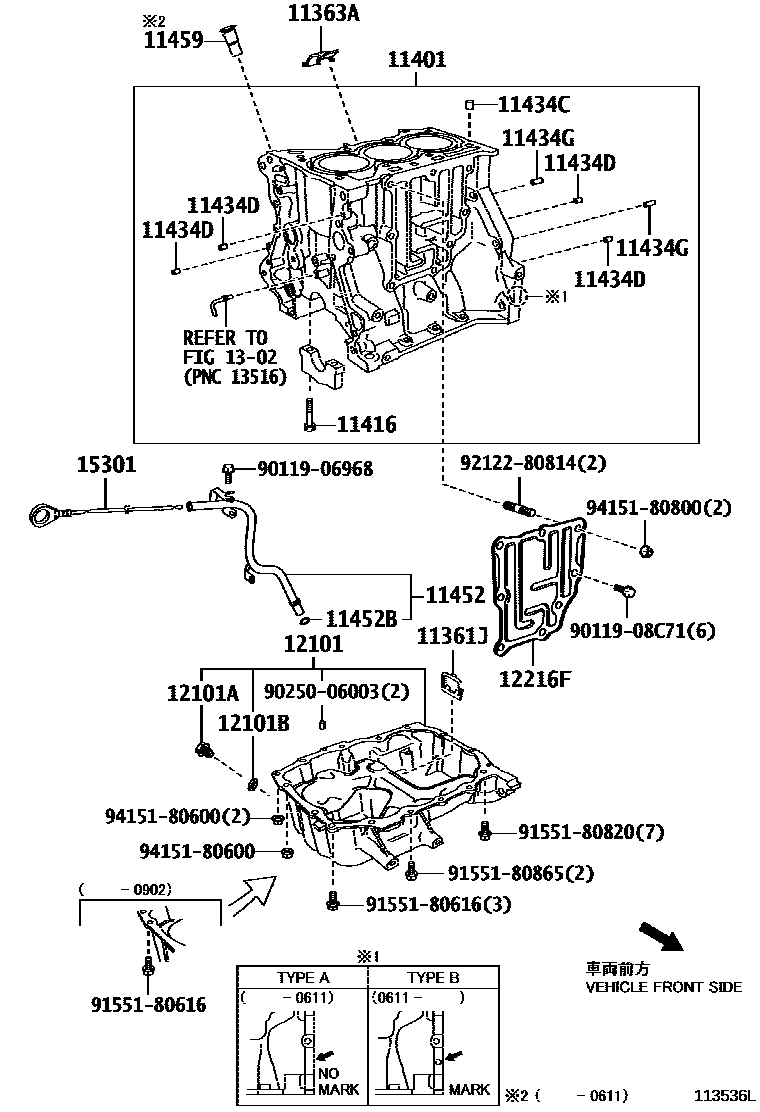

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFE,2NZFE..NCP9#..F,ILL,U¥490200501-201012

main11361-23020i2SZFE..SCP90..F,ILL,U¥540200501-201012

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Q010i1KRFE..KSP90¥270200501-200808

main11363-21010i1NZFE..NCP91..RS¥350200501-201012

main11363-40010i1KRFE..KSP90¥270200501-201012

11401BLOCK SUB-ASSY, CYLINDER

main11401-23040i2SZFE..SCP90¥136,000200501-200506

sub11401-23041¥136,000

main11401-23041i2SZFE..SCP90¥136,000200506-200606

sub11401-23043¥136,000

sub11701-23061¥3,430

sub90250-06030¥120

main11401-23043i2SZFE..SCP90..F,ILL,U¥136,000200708-201012

main11401-23043i2SZFE..SCP90¥136,000200606-200708

main11401-29845i2NZFE..NCP95¥165,000200501-200812

sub11401-29846¥165,000

main11401-29846i2NZFE..NCP95¥165,000200812-201012

sub11401-29847¥165,000

main11401-29865i1NZFE..NCP91¥182,000200501-200812

sub11401-29866¥182,000

main11401-29866i1NZFE..NCP91¥182,000200812-201012

sub11401-29867¥182,000

main11401-40040i1KRFE..KSP90¥139,000200501-200611

main11401-40041i1KRFE..KSP90¥139,000200708-201012

sub11401-40060¥139,000

main11401-40041i1KRFE..KSP90¥139,000200611-200708

sub11401-40060¥139,000

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10492i2SZFE..SCP90..F,ILL,U¥260200501-201012

main90105-10531i1KRFE..KSP90¥160200501-201012

main90910-02125i1NZFE,2NZFE..NCP9#¥220200501-201012

sub90910-02207¥160

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZFE,2NZFE..NCP9#..F,ILL,U¥140200501-201012

main90253-12002i2SZFE..SCP90..F,ILL,U¥50200501-201012

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1KRFE..KSP90¥90200501-201012

main90250-06030i2SZFE..SCP90¥120200501-201012

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1NZFE,2NZFE..NCP9#..F,ILL,U¥120200501-201012

main90250-10214i1KRFE..KSP90¥120200501-201012

main90250-10232i1KRFE..KSP90¥100200505-201012

11452GUIDE, OIL LEVEL GAGE

main11409-40030i1KRFE..KSP90¥1,850200501-201008

main11409-40050i1KRFE..KSP90¥2,840201008-201012

main11452-21030i1NZFE,2NZFE..NCP9#..F,ILL,U¥1,300200501-201012

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KSP90¥190200501-201012

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-40010i1KRFE..KSP90¥440200501-200611

12101PAN SUB-ASSY, OIL

main12101-23052i2SZFE..SCP90¥26,300200501-201012

main12101-40100i1KRFE..KSP90¥12,900200501-201008

main12101-40120i1KRFE..KSP90¥12,900201008-201012

main12111-21033i1NZFE,2NZFE..NCP9#..F,ILL,U¥42,200200501-201012

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE..NCP91..RS¥160200501-201012

main90341-12032i2SZFE..SCP90¥190200501-201012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFE..NCP91..RS¥90200501-201012

12216FPLATE, VENTILATION BAFFLE

main12216-40020i1KRFE..KSP90¥2,650200501-201012

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZFE,2NZFE..NCP9#¥1,200200501-200709

sub15301-21040¥1,200

main15301-21040i1NZFE,2NZFE..NCP9#..F,ILL,U¥1,200200709-201012

sub15301-21060¥1,000

main15301-40070i1KRFE..KSP90¥1,200200501-201008

main15301-40100i1KRFE..KSP90¥1,200201008-201012

9011906968

main90119-06968¥110

9011908C71

main90119-08C71¥130

9025006003

main90250-06003¥90

9155180616

main91551-80616¥60

9155180820

main91551-80820¥80

9155180865

main91551-80865¥100

9212280814

main92122-80814¥160

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

25 parts on this diagram · 5 diagrams in section
