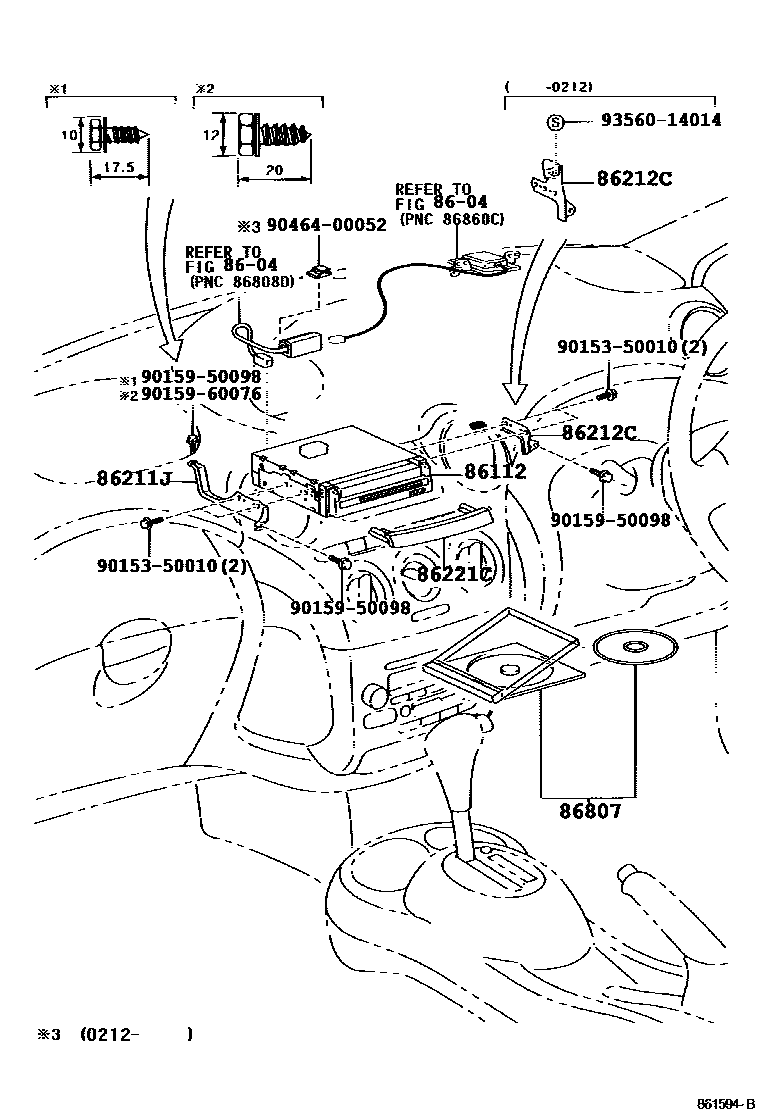

NAVIGATION & FRONT MONITOR DISPLAY

8604

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-52010iNCP1#,SCP10..CLA,F,RS,U200112-200501

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-52080iNCP1#,SCP10..CLA,F,RS,U200112-200212

main86211-52150iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212-200501

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-52080iNCP1#,SCP10..CLA,F,RS,U200112-200212

main86212-52150iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212-200501

86221CPANEL, RADIO RECEIVER

main86221-52010-B0iNCP10,13..RS200112-200212

SHADOW GRAY,TRIM1#

sub86221-52010

main86221-52110-B0iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

main86221-52110-B1iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM0#,9#

86807DISC KIT, CD-ROM

main86807-12030iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200404-200409

sub08664-00F23

main86807-12031iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200410-200501

sub08664-00G17

main86807-52020iNCP1#,SCP10..CLA,F,RS,U200112-200309

sub08664-52010

main86807-52021iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200309-200403

sub08664-00E36

9015350010

main90153-50010

9015950098

main90159-50098

9015960076

main90159-60076

9046400052

main90464-00052

9356014014

main93560-14014

11 parts on this diagram · 1 diagram in section
