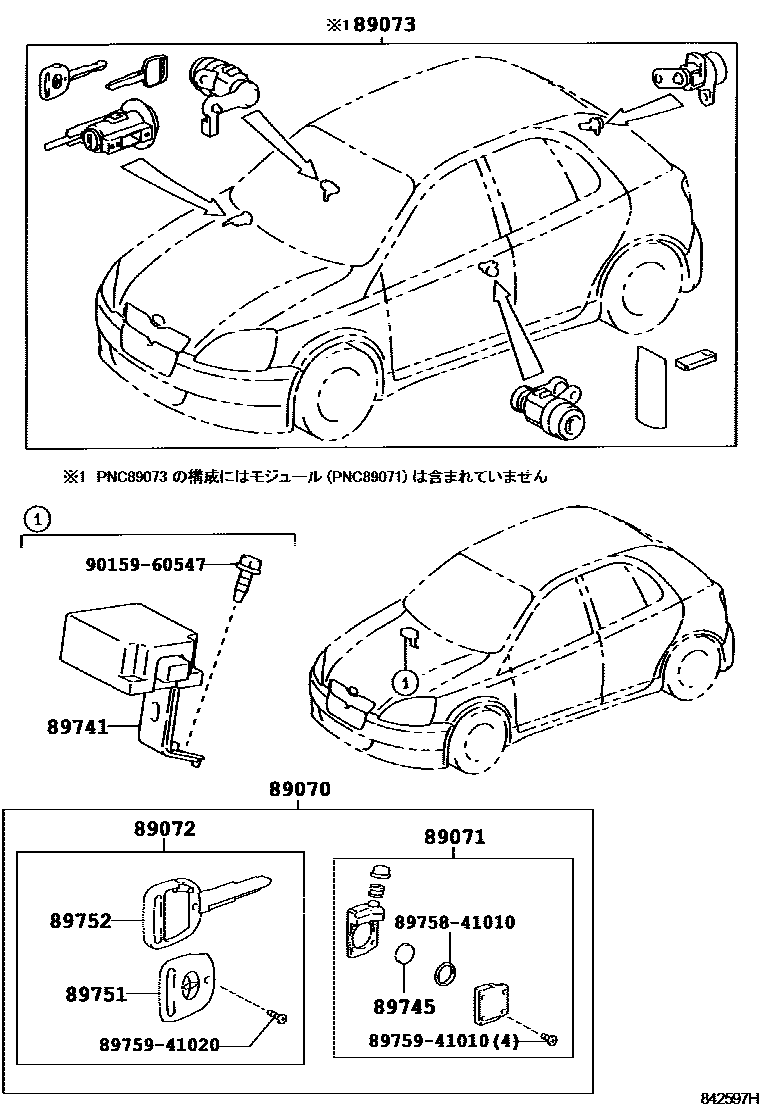

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1��(��������)

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-32080iNCP1#,SCP10..CLA,F,RS,U200112-200501

main89070-52070iNCP1#,SCP10..CLA,F,RS,U199901-200112

main89070-52380iNCP13200212-200501

sub89072-47020

sub89071-52060

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212-200501

main89071-32030iNCP1#,SCP10..CLA,F,RS,U200112-200212

main89071-52010iNCP1#,SCP10..CLA,F,RS,U199901-200112

main89071-52080iNCP13200212-200501

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200112-200501

sub04873-47010

main89072-52070iNCP1#,SCP10..CLA,F,RS,U199901-200112

sub04873-52010

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-52390iNCP1#,SCP10..CLA,F,RS,U200112-200212

main69005-52400iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212

main69005-52850iNCP13200212

main69005-52A00iNCP13200212

main69005-5C150iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212

sub69005-52400

main89073-52050iNCP1#,SCP10..CLA,F,RS,U199901-200112

89741RECEIVER, DOOR CONTROL

main89741-52010iNCP1#,SCP10..CLA,F,RS,U199901-200112

main89741-52140iNCP1#,SCP10..CLA,F,RS,U200112-200212

main89741-52190iSCP13..U200302

main89741-52210iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212

89745BATTERY, TRANSMITTER

main89745-41010iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212

main89745-41010iNCP1#,SCP10..CLA,F,RS,U199901-200212

89751COVER, TRANSMITTER HOUSING

main89751-44010iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212-200501

main89751-44010iNCP1#,SCP10..CLA,F,RS,U200112-200212

main89751-52060iNCP1#,SCP10..CLA,F,RS,U199901-200112

89752CASE, TRANSMITTER HOUSING

main89752-46020iNCP1#,SCP10..CLA,F,RS,U200112-200501

main89752-52240iNCP1#,SCP10..CLA,F,RS,U199901-200112

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9015960547

main90159-60547

12 parts on this diagram · 4 diagrams in section
