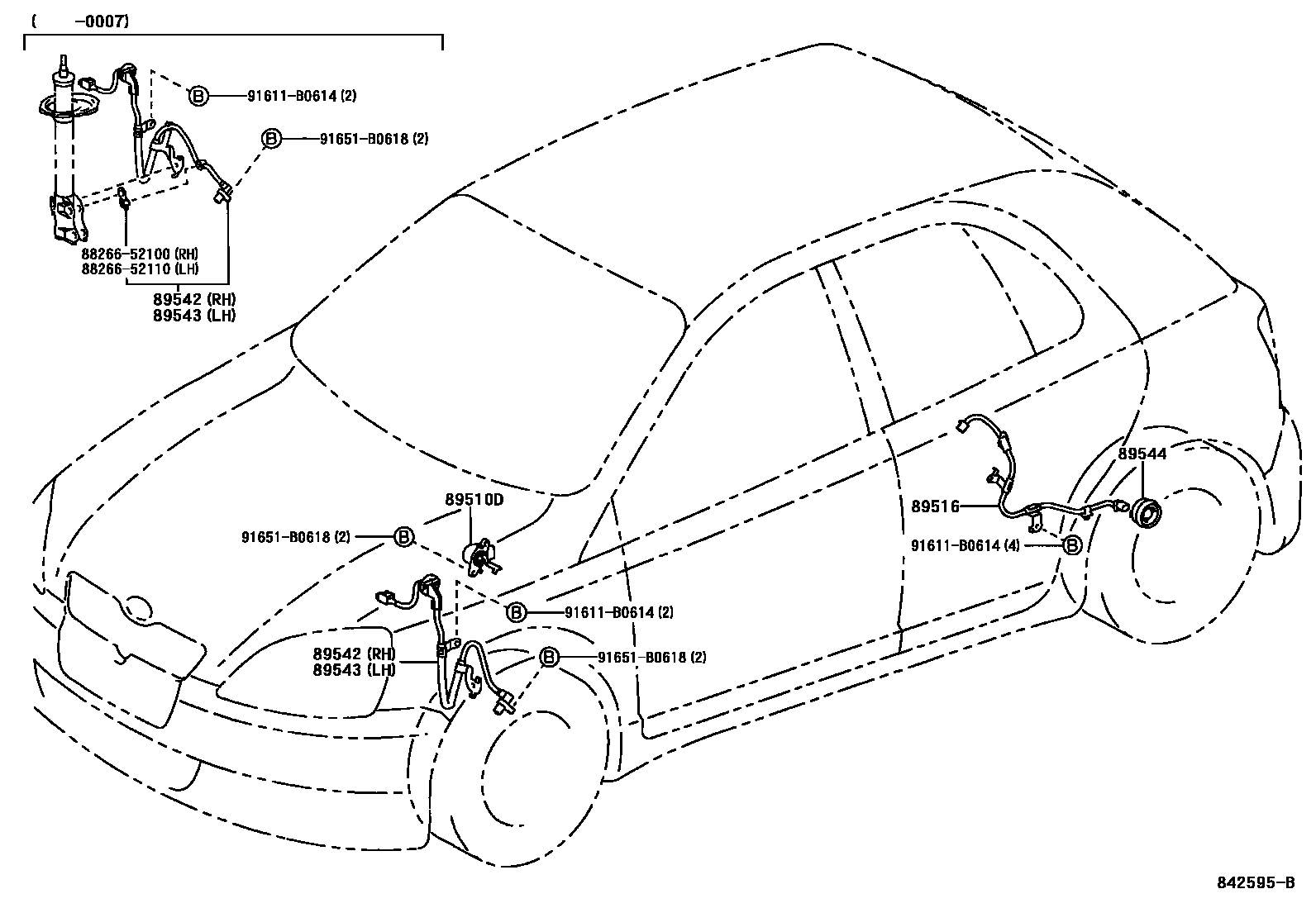

ABS & VSC

0001 1 0002 1 0003 1

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-46010iNCP1#,SCP10199901-200208

89516WIRE, SKID CONTROL SENSOR

main89516-52010iNCP10,13,SCP10199901-200212

main89516-52020iNCP10,13,SCP10199901-200212

89542SENSOR, SPEED, FRONT RH

main04895-52010iNCP1#,SCP10199901-200007

main89542-52010iNCP1#,SCP10200007-200501

89543SENSOR, SPEED, FRONT LH

main04895-52020iNCP1#,SCP10199901-200007

main89543-52010iNCP1#,SCP10200007-200501

89544SENSOR, SKID CONTROL

main89544-12010iNCP10,13,SCP1#200212-200501

main89544-52010iNCP10,13,SCP10199901-200212

main89544-52020iNCP10,13,SCP10199901-200212

sub89544-52030

main89544-52030iNCP10,13,SCP1#200212-200501

8826652100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52100

8826652110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52110

91611B0614

main91611-B0614

91651B0618

main91651-B0618

9 parts on this diagram · 3 diagrams in section
