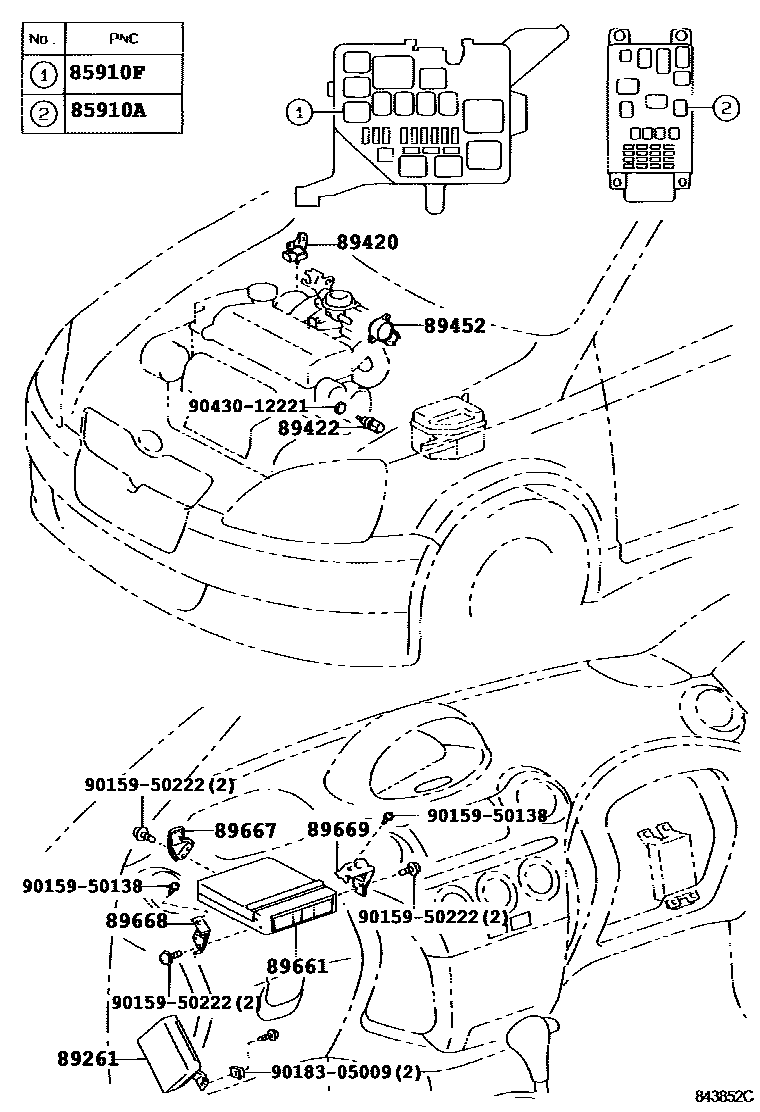

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP1#,SCP10199901-200212

main90987-02027iNCP1#,SCP10200212

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNCP1#,SCP10199901-200112

main90987-02022iNCP1#,SCP10200112-200212

main90987-02027iNCP1#,SCP1#200212

89261COMPUTER, ENGINE STOP AND START

main89261-52020iSCP10..5F..B200101-200212

89420SENSOR ASSY, VACUUM

main89420-52030iSCP10..5F..B200101-200212

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSCP10199901-199908

main89422-16010iNCP1#,SCP10199908-200501

main89422-22030iNCP1#,SCP10199908-200501

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP1#199908-200212

main89452-52010iSCP10199901-199910

sub89452-52011

main89452-52011iSCP10199910-200112

89661COMPUTER, ENGINE CONTROL

main89661-52010iSCP10..5F199901-199908

main89661-52020iSCP10..4FC199901-199908

main89661-52030iNCP10..5F199909-200008

main89661-52031iNCP10..5F200008-200208

main89661-52040iNCP10..4FC199909-200008

main89661-52041iNCP10..4FC200008-200112

main89661-52050iNCP15..4FC199908-200008

main89661-52051iNCP15..4FC200008-200112

main89661-52190iSCP10..5F..B200101-200212

main89661-52210iNCP13..4FC200010-200112

main89661-52220iNCP13..5F200010-200208

main89661-52490iNCP13..5F200212

main89661-52500iNCP15..5F199909-200008

main89661-52501iNCP15..5F200008-200208

main89661-52510iSCP10..5F200112-200212

main89661-52550iSCP10..4FC200112-200212

main89661-52580iSCP10..5F199908-199912

sub89661-52581

main89661-52581iSCP10..5F199912-200103

main89661-52582iSCP10..5F200103-200112

main89661-52590iSCP10..4FC199908-200001

sub89661-52591

main89661-52591iSCP10..4FC200001-200103

main89661-52592iSCP10..4FC200103-200112

main89661-52A70iSCP13200402

main89661-52A80iSCP13..U200402

main89661-5C010iNCP13..4FC200212

main89661-5C030iNCP10..4FC200112-200208

main89661-5C060iNCP15..4FC200112-200208

main89661-5C070iNCP13..4FC200112-200208

main89661-5C280iSCP10..5F200212

main89666-52050iNCP13..5F200208-200212

main89666-52060iNCP13..4FC200208-200212

main89666-52070iNCP10..5F200208-200212

main89666-52080iNCP10..4FC200208-200212

main89666-52090iNCP15..5F200208-200212

main89666-52100iNCP15..4FC200208-200212

main89666-52340iSCP13..U200302-200402

main89666-52350iSCP13200212-200402

main89666-52360iSCP10..ATM200212

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52010iNCP1#,SCP10199901-200212

main89667-52140iSCP13200212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52010iSCP10..5F..B200112-200212

main89668-52010iNCP1#,SCP10199901-200208

main89668-52120iSCP10;NCP15..3D..4FC..(CLA,U)200112-200212

main89668-52150iSCP13200212

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52010iNCP1#,SCP10199901-200208

main89669-52010iSCP10..5F..B200112-200212

main89669-52070iSCP10;NCP15..3D..4FC..(CLA,U)200112-200212

main89669-52100iSCP13200212

9015950138

main90159-50138

9015950222

main90159-50222

9018305009

main90183-05009

9043012221

main90430-12221

14 parts on this diagram · 4 diagrams in section
