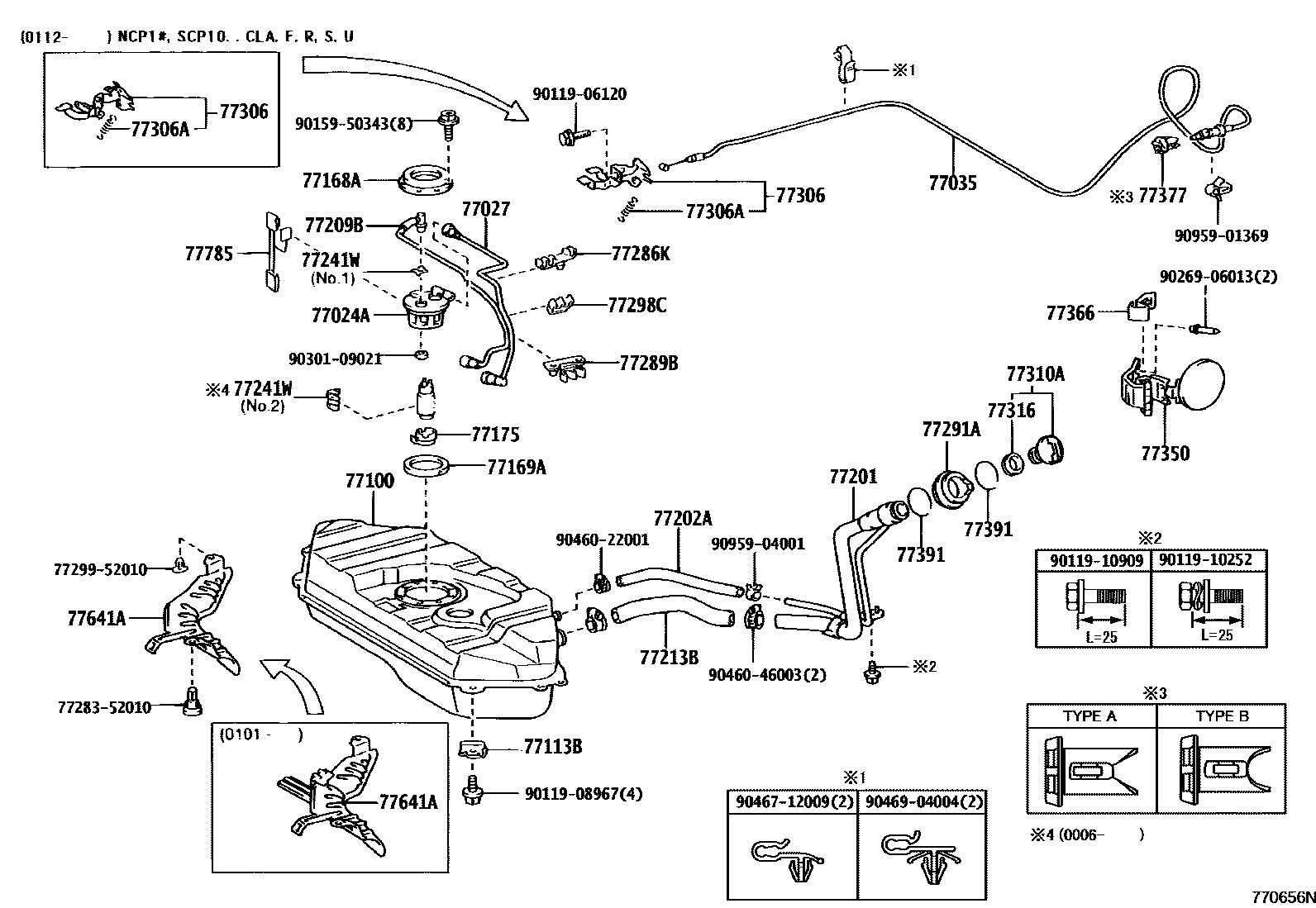

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ����� 0005 1����� �����(��������� �������

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-52010iNCP15199908-200212

main77024-52020iNCP10,13,SCP10199901-200212

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-52020iNCP10,13,SCP1#199901-200212

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52010iNCP1#,SCP10199901-200204

main77035-52011iNCP1#,SCP10200204-200212

main77035-52011iNCP1#,SCP1#200212-200501

main77035-52220iNCP1#,SCP1#200501

77100TANK ASSY, FUEL

main77001-52010iNCP15199908-200212

sub77001-52220

main77001-52020iNCP10,SCP10199901-200212

sub77001-52021

main77001-52030iNCP13200010-200212

sub77001-52090

77113BPLATE, FUEL TANK SIDE

main77113-52010iNCP10,13,SCP10199901-200212

main77113-52020iNCP15199908-200212

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iNCP15199908-200112

main77168-33050iNCP15200112-200212

main77168-52010iNCP10,13,SCP10199901-200212

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iNCP1#,SCP10199901-200212

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30050iNCP15199908-200212

main77175-52020iNCP10,13,SCP10199901-200212

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-52040iNCP15199908-200212

sub77201-52041

main77201-52050iNCP10,13,SCP1#199901-200212

sub77201-52051

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77269-52010iNCP15199908-200212

main77269-52020iNCP10,13,SCP10199908-200212

main95313-13036iSCP10199901-199907

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-52010iNCP15199908-200212

main77209-52020iNCP10,13,SCP10199901-200212

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52010iNCP10,13,SCP10199908-200212

main77213-52020iSCP10199901-199908

sub77213-52010

main77213-52030iNCP15199908-200212

77241WCLIP, TUBE JOINT

main77241-32060iNCP10,13,SCP10199901-200212

N0.1

main77241-32060iNCP10,13,SCP1#200212

main77241-33011iNCP15199908-200212

main77241-52010iNCP10,13,SCP10200006-200212

77286KCLAMP, FUEL TUBE, NO.2

main77286-52020iNCP10,13,SCP10199901-200212

77289BCLAMP, FUEL TUBE, NO.3

main77289-52010iNCP1#,SCP10199901-200212

main77289-52050iSCP13..U200212

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010iNCP1#,SCP10199901-200212

77298CCLAMP, FUEL TUBE, NO.4

main77298-52020iNCP10,13,SCP10199901-200212

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-12060iSCP10..B199901-200212

main77306-13020iNCP1#,SCP10..CLA,F,RS,U200112-200212

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iNCP1#,SCP1#..CLA,F,RS,U200112-200212

main90506-09034iSCP10..B199901-200212

77310ACAP ASSY, FUEL TANK

main77310-48010iNCP1#,SCP1#199901-200212

77316GASKET, FUEL TANK CAP

main77316-16010iNCP1#,SCP10199901-200212

77350LID ASSY, FUEL FILLER OPENING

main77350-52010iNCP1#,SCP10199901-200501

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iNCP1#,SCP10199901-200212

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52010iNCP1#,SCP10199901-200212

main77377-52010iNCP1#,SCP1#200212-200501

main77377-52020iNCP1#,SCP1#200501

77391RING, FUEL INLET BOX

main77391-12020iNCP1#,SCP10199901-200212

77641APROTECTOR, FUEL TANK, NO.1

main77606-52020iSCP10..5F..B200105-200212

main77631-52010iNCP10,13,SCP10199901-200212

main77641-52010iNCP15199908-200212

77785HARNESS, FUEL PUMP

main77785-32010iNCP10,13,SCP10199901-200212

main77785-52020iNCP15199908-200212

7728352010BRACKET, FUEL TUBE

main77283-52010

7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-52010

9011906120

main90119-06120

9011908967

main90119-08967

9011910252

main90119-10252

9011910909

main90119-10909

9015950343

main90159-50343

9026906013

main90269-06013

9030109021

main90301-09021

9046022001

main90460-22001

9046046003

main90460-46003

9046712009

main90467-12009

9046904004

main90469-04004

9095901369

main90959-01369

9095904001

main90959-04001
