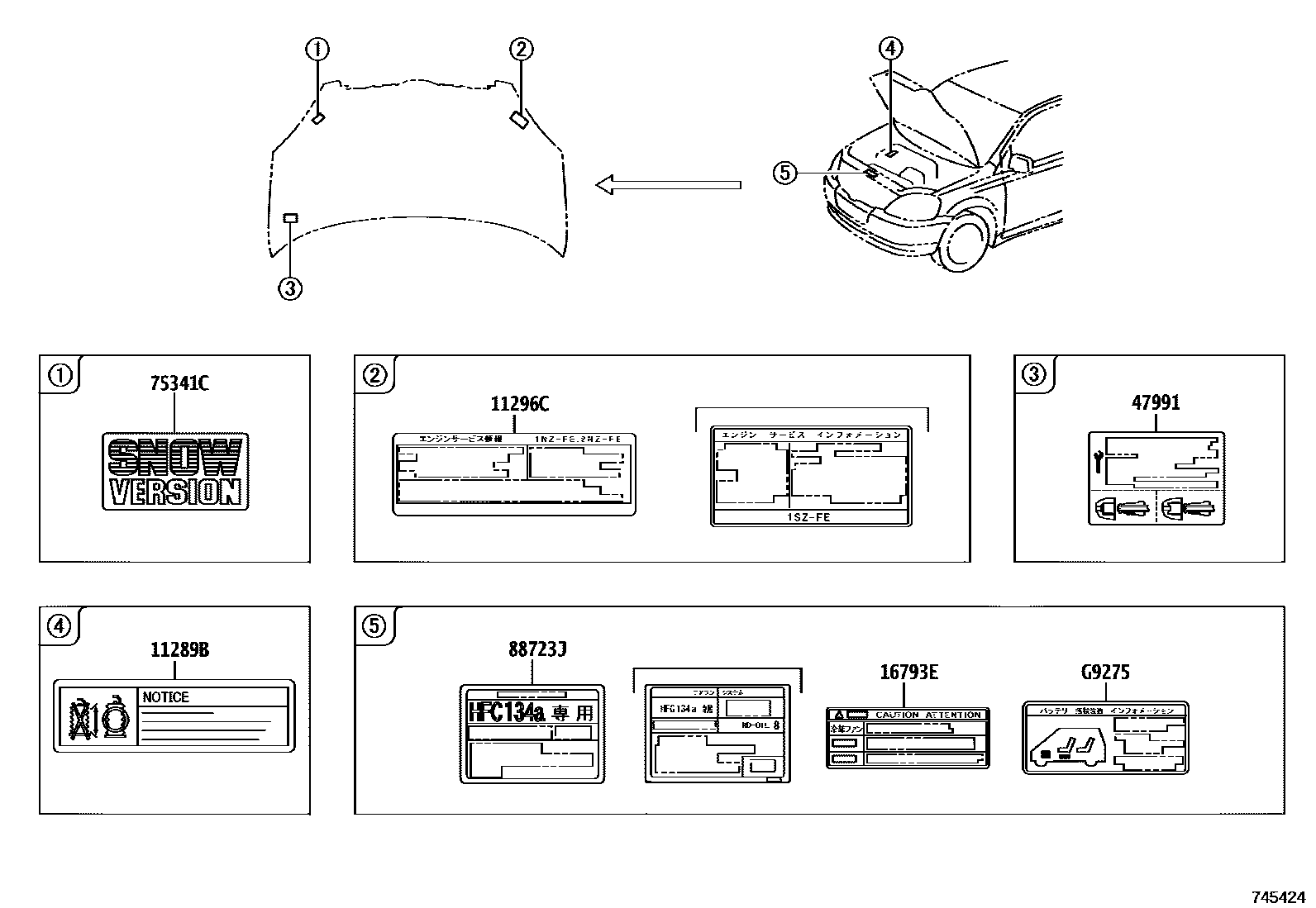

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1�������� 0002 1���������&����(1/2) 0003 1���������&����(2/2)

11289BLABEL, SPARK PLUG NOTICE

main11289-31010i2SZFE..SCP13200212-200501

sub11289-31011

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-21020i1NZFE,2NZFE..NCP1#200112-200205

main11296-21021i1NZFE,2NZFE..NCP1#200205-200501

main11296-23020i1SZFE..SCP10199901-200112

main11296-23040i1SZFE..SCP10200112-200205

main11296-23041i1SZFE..SCP10199908-200501

main11296-23041i1SZFE..SCP10..B,F200205-200212

main11296-23070i2SZFE..SCP13200212-200501

16793ELABEL, COOLING FAN CAUTION

main16793-46010i1NZFE,2NZFE,1SZFE..NCP1#,SCP10199901-200501

47991LABEL, BRAKE TUBE INFORMATION

main47991-13010iNCP1#,SCP10199908-200212

75341CPLATE, HOOD NAME

main75341-20060iNCP1#,SCP10199901-200212

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-22060iNCP1#,SCP10199901-200202

main88733-52010iSCP10200202-200501

sub88733-52011

main88733-52020iNCP1#200202-200501

sub88733-52021

main88733-52030iSCP13200212-200501

sub88733-52031

G9275LABEL, BATTERY CAUTION, NO.1

mainG927752010iSCP13..U200302

7 parts on this diagram · 3 diagrams in section
