BATTERY CARRIER

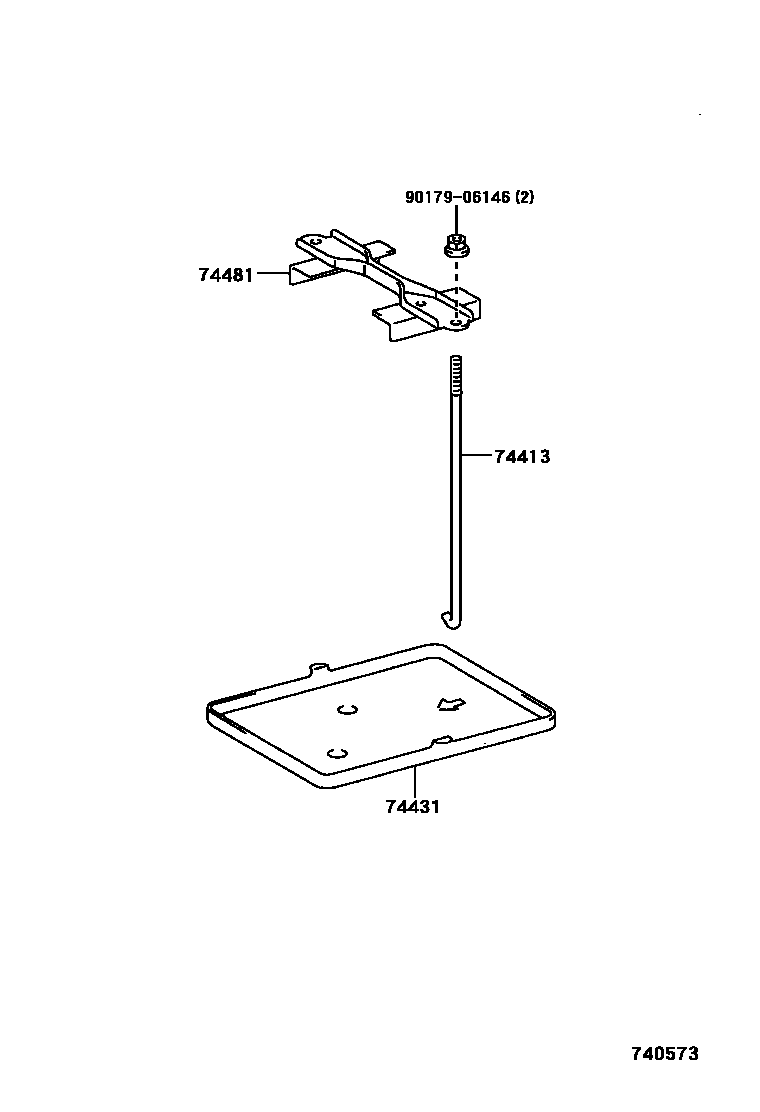

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-16030i199901-200212

main74451-16030i200212

main74451-32071i200212

74431TRAY, BATTERY

main74431-52010i200105-200212

main74431-52010i199901-200001

main74431-52020i200001-200501

main74431-52090i200212-200501

74481CLAMP, BATTERY HOLD DOWN

main74404-42030i200105-200212

main74404-52020i199901-200212

main74404-52050i200212

9017906146

main90179-06146

4 parts on this diagram · 1 diagram in section
