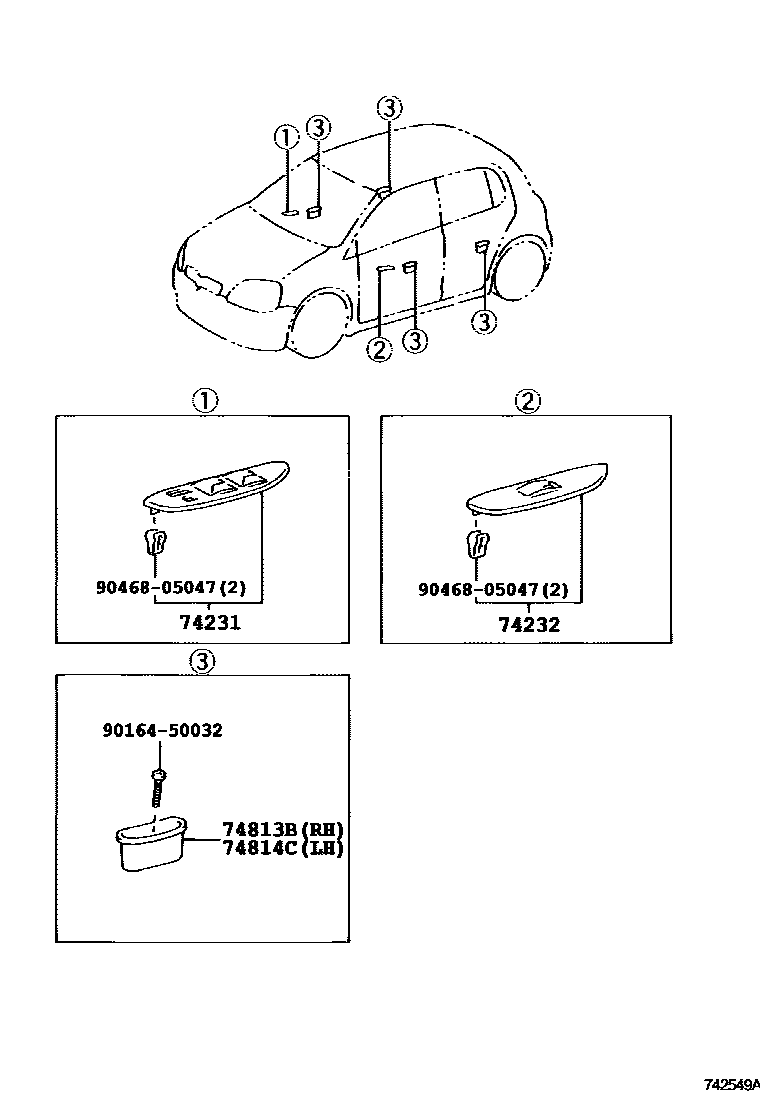

ARMREST & VISOR

0001 1�-���� 0002 1����� & ���������� 0003 1����� & ����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-52010iNCP10,15..5D..CLA¥2,290199909-200212

main74230-52020iNCP10,15..3D..CLA¥3,650199909-200212

main74230-52030iNCP10,13..5D..RS¥3,320200010-200212

main74230-52040iNCP10,13..3D..RS¥3,650200010-200212

main74230-52070iNCP10,13..3D¥3,670200212-200501

main74230-52090iNCP15,SCP13..CLA¥3,330200212-200501

main74230-52090iSCP1#..5D..(4FC,CVFC)..(F,U)¥3,330200401-200403

main74230-52100iSCP10..4HC¥1,840200212-200501

main74230-52100iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)¥1,840200404-200501

NEO EDITION *(G)

main74230-52110iNCP10,13..5D¥3,330200212-200501

main74230-52120-K0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200308-200404

LAVENDER EDITION *(A),LAVENDER ME.,TRIM9#

main74231-52010-B0iNCP15,SCP1#..5D..(4FC,5F,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

sub74231-52010¥1,810

main74231-52010-C0iNCP10,15,SCP10..5D..(F,U)199901-200112

SHADOW GRAY,TRIM1#,7#

sub74231-52010¥1,810

main74231-52010-C0iNCP10,15,SCP10..5D..(F,U)200112-200212

SHADOW GRAY,TRIM1#

sub74231-52010¥1,810

main74231-52020-B0iNCP15,SCP10..3D..F200212-200501

DK.GRAY,TRIM9#

sub74231-52020¥1,810

main74231-52020-B1iNCP10,15,SCP10..3D..(F,U)200112-200212

SHADOW GRAY,TRIM1#

sub74231-52020¥1,810

main74231-52020-C0iNCP10,15,SCP10..3D..(F,U)199901-200112

SHADOW GRAY,TRIM1#,7#

sub74231-52020¥1,810

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52030-B0iNCP15,SCP1#..(4FC,5F,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

sub74232-52030¥2,030

main74232-52030-C0iNCP10,15,SCP10..F,U200112-200212

SHADOW GRAY,TRIM1#

sub74232-52030¥2,030

main74232-52030-C0iNCP10,15,SCP10..F,U199901-200112

SHADOW GRAY,TRIM1#,7#

sub74232-52030¥2,030

main74240-52010iNCP10,15..CLA¥2,540199909-200212

main74240-52020iNCP10,13..RS¥4,030200010-200212

main74240-52050iSCP1#..5D..(4FC,CVFC)..(F,U)¥4,040200401-200403

main74240-52050iNCP15,SCP13..CLA¥4,040200212-200501

main74240-52060iNCP10,13¥4,040200212-200501

main74240-52080iSCP10..4HC¥2,250200212-200501

main74240-52100-K0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200308-200404

LAVENDER EDITION *(A),LAVENDER ME.,TRIM9#

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-B0iNCP10,13..5D..RS200010-200212

SHADOW GRAY,TRIM9#

sub74813-52010¥1,010

main74813-52010-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200208

SHADOW GRAY,TRIM12

sub74813-52010¥1,010

main74813-52010-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)199901-200112

SHADOW GRAY,TRIM1#

sub74813-52010¥1,010

main74813-52010-B2iNCP15..CLA,U;NCP15,SCP10..5D..5F..F;NCP10,13,SCP1#..5D..(B,CLA,RS)200212-200501

DK.GRAY,TRIM9#

sub74813-52010¥1,010

main74813-52010-B2iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200208

DK.GRAY,TRIM12

sub74813-52010¥1,010

main74813-52010-B2iNCP10,15,SCP10..3D..(B,CLA,F,U)200208-200212

DK.GRAY,TRIM1#

sub74813-52010¥1,010

main74813-52010-B2iNCP1#,SCP10..3D200212-200501

DK.GRAY,TRIM0#,9#

sub74813-52010¥1,010

main74813-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub74813-52010¥1,010

main74813-52010-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

sub74813-52010¥1,010

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-B0iNCP10,15,SCP10..5D..(B,CLA,F,U)199901-200112

SHADOW GRAY,TRIM1#

sub74814-52010¥1,010

main74814-52010-B0iNCP10,13..3D..RS200010-200212

SHADOW GRAY,TRIM9#

sub74814-52010¥1,010

main74814-52010-B0iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200208

SHADOW GRAY,TRIM12

sub74814-52010¥1,010

main74814-52010-B2iNCP1#,SCP10..3D200212-200501

DK.GRAY,TRIM0#,9#

sub74814-52010¥1,010

main74814-52010-B2iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

sub74814-52010¥1,010

main74814-52010-B2iNCP10,15,SCP10..3D..(B,CLA,F,U)200112-200208

DK.GRAY,TRIM12

sub74814-52010¥1,010

main74814-52010-B2iNCP10,15,SCP10..3D..(B,CLA,F,U)200208-200212

DK.GRAY,TRIM1#

sub74814-52010¥1,010

main74814-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub74814-52010¥1,010

main74814-52010-H0iNCP10,15,SCP10..3D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

sub74814-52010¥1,010

9016450032

main90164-50032¥90

9046805047

main90468-05047¥90

6 parts on this diagram · 3 diagrams in section
