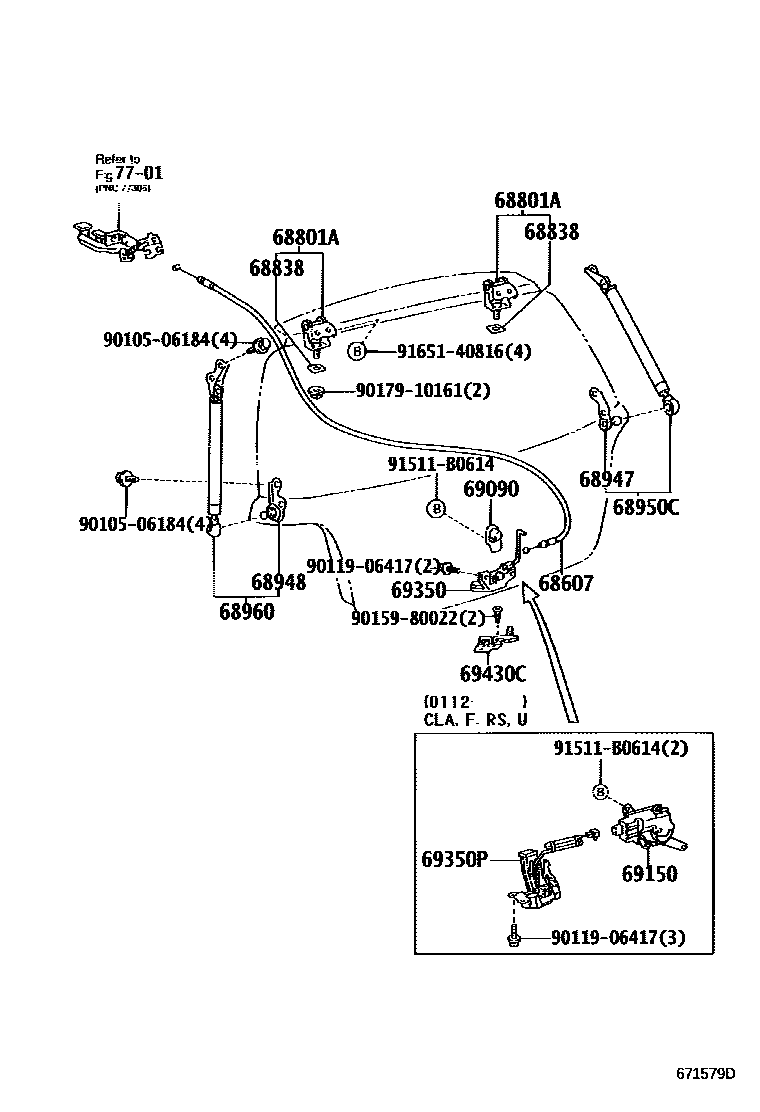

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-52010iNCP1#,SCP10199901-200212

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-52010iNCP1#,SCP10199901-200501

68838PAD, BACK DOOR HINGE, NO.1

main68838-10020iNCP1#,SCP1#199908-200212

main68838-10020iSCP10199901-200112

main68838-52010iNCP1#,SCP1#199908-200212

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52010iNCP1#,SCP10199901-200212

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52010iNCP1#,SCP10199901-200212

68950CSTAY ASSY, BACK DOOR, RH

main68950-59015iSCP10..B199901-199911

sub68950-59055

main68950-59025iSCP10199901-199911

sub68950-59065

main68950-59025iNCP1#199908-199911

sub68950-59065

main68950-59055iSCP10..B199911-200205

main68950-59056iSCP10..B200206-200212

main68950-59065iNCP10,15..CLA,F,U199911-200205

sub68950-59066

main68950-59066iNCP1#,SCP1#..CLA,F,RS,U200206-200212

68960STAY ASSY, BACK DOOR, LH

main68960-59015iSCP10..B199901-200205

main68960-59016iSCP10..B200206-200212

main68960-59025iNCP1#199901-200205

sub68960-59026

main68960-59025iNCP1#199908-200112

sub68960-59026

main68960-59026iSCP10..B200206-200212

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-52010iNCP1#,SCP10199901-200112

sub69090-52040

main69090-52040iNCP1#,SCP10200112-200212

main69090-52040iNCP15,SCP10..(4FC,5F)..(B,F)200212-200501

main69090-52080iNCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)200212-200501

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-52011iNCP1#,SCP10..CLA,F,RS,U200112-200212

69350LOCK ASSY, BACK DOOR

main69350-52010iNCP1#,SCP10199901-200501

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52170iNCP15,SCP10..(4FC,5F)..F200112-200501

main69350-52270iSCP10..4HC;NCP1#,SCP13..CLA,RS,U200212-200501

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52010iNCP1#,SCP10199901-200212

main69430-52020iNCP1#,SCP1#..CLA,F,RS,U200112-200212

7701

9010506184

main90105-06184

9011906417

main90119-06417

9015980022

main90159-80022

9017910161

main90179-10161

91511B0614

main91511-B0614

9165140816

main91651-40816

19 parts on this diagram · 3 diagrams in section
