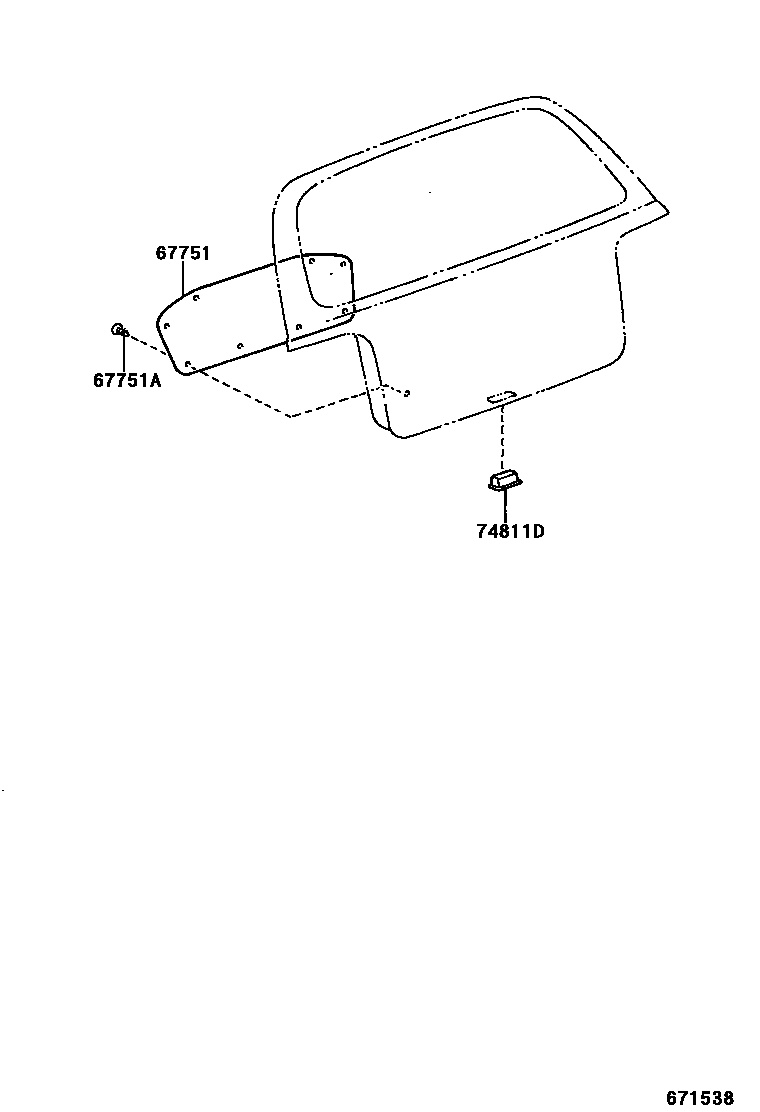

BACK DOOR PANEL & GLASS

0001 1 0002 1

67751BOARD, BACK DOOR TRIM

main67751-52010-C0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

BLACK,TRIM0#,96,98

main67751-52010-C0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200010-200501

BLACK,TRIM9#

main67751-52010-C0iNCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

BLACK,TRIM0#

main67751-52010-C0iNCP10,15,SCP10..B,CLA,F,U199909-200212

BLACK,TRIM1#

main67751-52010-C0iNCP10,15,SCP10..B,F,U199901-200112

BLACK,TRIM1#,7#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05096-22iNCP10,15..CLA199909-200210

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iNCP10,15,SCP10..B,F,U199901-200112

BLACK,TRIM1#,7#

sub90467-05096

main90467-05096-22iNCP10,13..RS200010-200210

BLACK,TRIM9#

sub90467-05096

main90467-05165-B0iSCP10..4HC200212-200501

DK.GRAY,TRIM0#

main90467-05165-B0iSCP10..4HC200212-200501

DK.GRAY,TRIM0#,96,98

main90467-05165-B0iSCP10..4HC200211-200501

DK.GRAY,TRIM9#

main90467-05165-C0iNCP10,15,SCP10..B,CLA,F,U200211-200212

BLACK,TRIM1#

74811DHANDLE, DOOR PULL

main74811-13010-C0iNCP10,SCP10..U199901-200501

BLACK

sub74811-13010

3 parts on this diagram · 2 diagrams in section
