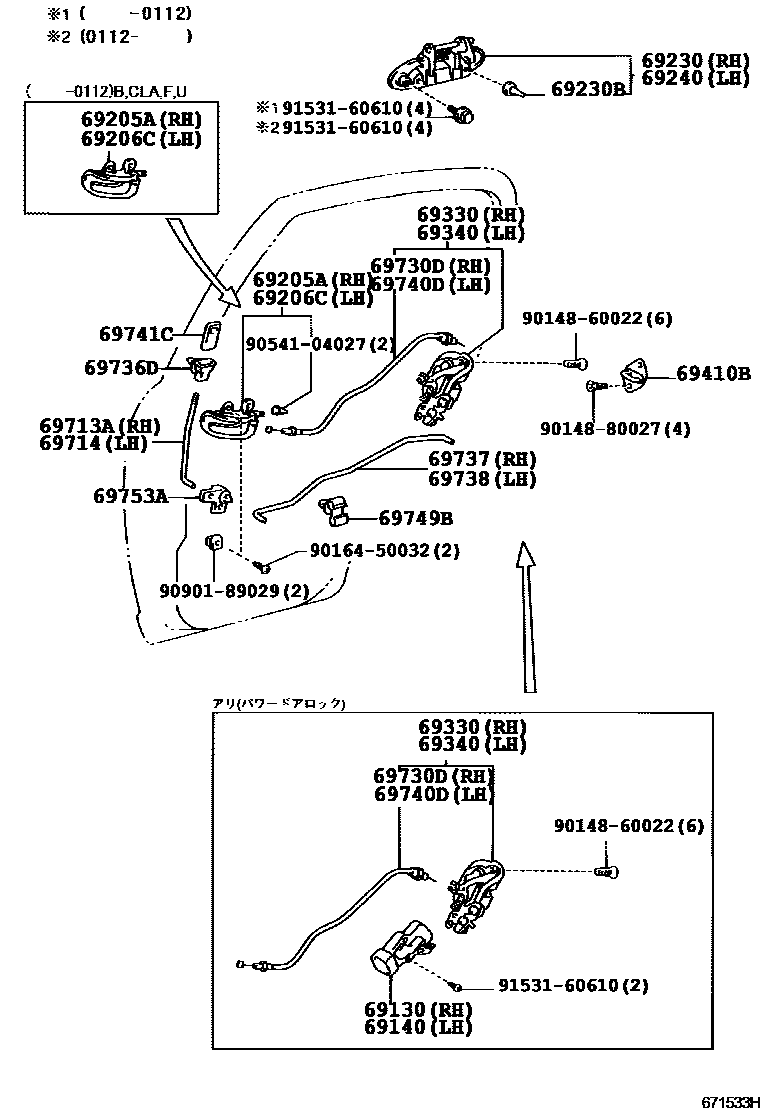

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-52010iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200212

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-52010iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200212

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-52010-B0iNCP10,15,SCP10..5D..(B,CLA,F,U)199901-200112

SHADOW GRAY,TRIM1#

sub69205-52010

main69205-52010-B3iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200403-200501

DK.GRAY,TRIM0#

sub69205-52010

main69205-52010-H0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

sub69205-52010

main69205-52020-B0iNCP10,13..5D..RS200010-200208

SHADOW GRAY,TRIM9#

sub69205-52020

main69205-52020-B6iNCP15,SCP1#..5D..(4FC,5F,CVFC)..(F,U)200212-200501

sub69205-52020

main69205-52020-B8iNCP10,13..5D..RS200208-200212

SHADOW GRAY,TRIM9#

sub69205-52020

main69205-52040-B0iNCP10,15..5D..CLA200112-200208

SHADOW GRAY,TRIM1#

sub69205-52040

main69205-52040-B3iNCP10,15..5D..CLA200208-200212

SHADOW GRAY,TRIM1#

sub69205-52040

main69205-52040-B3iNCP10,15,SCP10..5D..(B,F,U)200112-200212

SHADOW GRAY,TRIM12

sub69205-52040

main69205-52040-B4iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub69205-52040

main69205-52040-B5iNCP15,SCP10..5D..(4FC,5F)..(B,F)200212-200501

DK.GRAY,TRIM9#

sub69205-52040

main69205-52090-B0iSCP13..U200212-200501

DK.GRAY,TRIM9#

main69205-52090-B0iSCP13..U200308-200404

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-52010-B0iNCP10,15,SCP10..5D..(B,CLA,F,U)199901-200112

SHADOW GRAY,TRIM1#

sub69206-52010

main69206-52010-B3iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200403-200501

DK.GRAY,TRIM0#

sub69206-52010

main69206-52010-H0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

sub69206-52010

main69206-52020-B0iNCP10,13..5D..RS200010-200208

SHADOW GRAY,TRIM9#

sub69206-52020

main69206-52020-B6iNCP15,SCP1#..5D..(4FC,5F,CVFC)..(F,U)200212-200501

sub69206-52020

main69206-52020-B8iNCP10,13..5D..RS200208-200212

SHADOW GRAY,TRIM9#

sub69206-52020

main69206-52040-B0iNCP10,15..5D..CLA200112-200208

SHADOW GRAY,TRIM1#

sub69206-52040

main69206-52040-B3iNCP10,15..5D..CLA200208-200212

SHADOW GRAY,TRIM1#

sub69206-52040

main69206-52040-B3iNCP10,15,SCP10..5D..(B,F,U)200112-200212

SHADOW GRAY,TRIM12

sub69206-52040

main69206-52040-B4iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub69206-52040

main69206-52040-B5iNCP15,SCP10..5D..(4FC,5F)..(B,F)200212-200501

DK.GRAY,TRIM9#

sub69206-52040

main69206-52080-B0iSCP13..U200308-200404

main69206-52080-B0iNCP15,SCP10..5D..4FC..F200212-200501

DK.GRAY,TRIM9#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-52010iSCP10..5D..B199901-200501

main69230-52020-A0iNCP10,15,SCP10..5D..(F,U)199901-200101

SUPER WHITE 2,040

sub69230-52020

main69230-52020-A1iNCP1#,SCP10..5D..(F,RS,U)200010-200501

WHITE,068

sub69230-52020

main69230-52020-A2iNCP10,15,SCP10..5D..(CLA,F,U)200112-200501

WHITE PALE MC.,057

sub69230-52020

main69230-52020-B0iNCP15,SCP10..5D..F200105-200112

sub69230-52020

main69230-52020-B0iNCP10,15,SCP10..5D..(CLA,F,U)199901-200212

SILVER ME,199

sub69230-52020

main69230-52020-B1iNCP10,13..5D..RS200010-200501

GRAY ME.,1D2

sub69230-52020

main69230-52020-B1iNCP15,SCP10..5D..F200105-200112

sub69230-52020

main69230-52020-B1iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69230-52020

main69230-52020-B3iNCP15,SCP1#..5D..(CLA,F,U)200212-200501

SILVER M.M.,1E7

sub69230-52020

main69230-52020-C0iNCP1#,SCP1#..5D..(F,RS,U)199901-200501

BLACK MC.,209

sub69230-52020

main69230-52020-D0iSCP10..5D..(F,U)199901-199908

SUPER RED II,3E5

sub69230-52020

main69230-52020-D1iNCP15,SCP10..5D..F200105-200112

sub69230-52020

main69230-52020-D1iNCP15,SCP1#..5D..(F,U)199901-200308

PALE ROSE ME.OP.,3N7

sub69230-52020

main69230-52020-D2iNCP1#,SCP10..5D..(F,RS,U)199908-200501

SUPER RED 5,3P0

sub69230-52020

main69230-52020-D3iNCP10,15..5D..CLA199909-200101

RED MM,3K4

sub69230-52020

main69230-52020-D4iNCP10,15..5D..CLA200101-200501

RED M.M.,3P1

sub69230-52020

main69230-52020-D4iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69230-52020

main69230-52020-E1iNCP15,SCP1#..5D..(F,U)200212-200501

PALE ORANGE MICA METALLIC,4S3

sub69230-52020

main69230-52020-F0iNCP1#,SCP10..5D..(F,RS,U)199901-200112

YELLOW M.M.,580

sub69230-52020

main69230-52020-F2iNCP15,SCP1#..5D..(F,U)200112-200501

CHAMPAGNE ME.,586

sub69230-52020

main69230-52020-F4iNCP15,SCP1#..5D..(F,U)200212-200501

YELLOW PM.,595

sub69230-52020

main69230-52020-G0iSCP10..4HC;NCP15,SCP13..CLA199909-200501

DK.GREEN MC.,6R4

sub69230-52020

main69230-52020-G0iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69230-52020

main69230-52020-G1iNCP10,15,SCP10..5D..(F,U)200101-200212

LT.GREEN ME.,6Q2

sub69230-52020

main69230-52020-G2iNCP15,SCP1#..5D..(F,U)200212-200501

YELLOW GREEN ME.,6T9

sub69230-52020

main69230-52020-H0iNCP10,15,SCP10..5D..(F,U)199901-200101

LT.AQUA ME.,764

sub69230-52020

main69230-52020-J0iNCP10,15,SCP10..5D..(CLA,F,U)199901-200101

DK.BLUE MC.,8K8

sub69230-52020

main69230-52020-J2iNCP15,SCP10..5D..F200108-200112

sub69230-52020

main69230-52020-J2iNCP10,15,SCP10..5D..(F,U)200112-200212

BLUE ME.,8P2

sub69230-52020

main69230-52020-J2iNCP15,SCP10..5D..F200104-200108

sub69230-52020

main69230-52020-J3iNCP1#,SCP10..5D..(F,RS,U)200010-200212

STRONG BLUE M,8B6

sub69230-52020

main69230-52020-J3iNCP15,SCP10..5D..F200105-200112

sub69230-52020

main69230-52020-J4iNCP10,15,SCP10..5D..(CLA,F,U)200101-200501

DK.BLUE M.M.,8P4

sub69230-52020

main69230-52020-J5iNCP10,13..5D;SCP10..5D..ATM..F200212-200501

BLUE ME.,8P1

sub69230-52020

main69230-52020-J6iNCP15,SCP1#..5D..(F,U)200212-200501

PALE BLUE M.M.,8R0

sub69230-52020

main69230-52020-K0iNCP15,SCP1#..5D..(F,U)200308-200501

LAVENDER ME.,9AA

sub69230-52020

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iNCP1#,SCP1#..5D199901-200212

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-52010iSCP10..5D..B199901-200501

main69240-52020-A0iNCP10,15,SCP10..5D..(F,U)199901-200101

SUPER WHITE 2,040

sub69240-52020

main69240-52020-A1iNCP1#,SCP10..5D..(F,RS,U)200010-200501

WHITE,068

sub69240-52020

main69240-52020-A2iNCP10,15,SCP10..5D..(CLA,F,U)200112-200501

WHITE PALE MC.,057

sub69240-52020

main69240-52020-B0iNCP15,SCP10..5D..F200105-200112

sub69240-52020

main69240-52020-B0iNCP10,15,SCP10..5D..(CLA,F,U)199901-200212

SILVER ME,199

sub69240-52020

main69240-52020-B1iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69240-52020

main69240-52020-B1iNCP10,13..5D..RS200010-200501

GRAY ME.,1D2

sub69240-52020

main69240-52020-B1iNCP15,SCP10..5D..F200105-200112

sub69240-52020

main69240-52020-B3iNCP15,SCP1#..5D..(CLA,F,U)200212-200501

SILVER M.M.,1E7

sub69240-52020

main69240-52020-C0iNCP10,13,SCP10..5D..(RS,U)199901-200501

BLACK MC.,209

sub69240-52020

main69240-52020-D0iSCP10..5D..(F,U)199901-199908

SUPER RED II,3E5

sub69240-52020

main69240-52020-D1iNCP15,SCP10..5D..F200105-200112

sub69240-52020

main69240-52020-D1iNCP10,15,SCP10..5D..(F,U)199901-200308

PALE ROSE ME.OP.,3N7

sub69240-52020

main69240-52020-D2iNCP1#,SCP1#..5D..(F,RS,U)199908-200501

SUPER RED 5,3P0

sub69240-52020

main69240-52020-D3iNCP10,15..5D..CLA199909-200101

RED MM,3K4

sub69240-52020

main69240-52020-D4iSCP10..4HC;NCP15,SCP13..CLA200101-200501

RED M.M.,3P1

sub69240-52020

main69240-52020-D4iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69240-52020

main69240-52020-E1iNCP15,SCP1#..5D..(F,U)200212-200501

PALE ORANGE MICA METALLIC,4S3

sub69240-52020

main69240-52020-F0iNCP1#,SCP10..5D..(F,RS,U)199901-200112

YELLOW M.M.,580

sub69240-52020

main69240-52020-F2iNCP10,15,SCP10..5D..(F,U)200112-200501

CHAMPAGNE ME.,586

sub69240-52020

main69240-52020-F4iNCP15,SCP1#..5D..(F,U)200212-200501

YELLOW PM.,595

sub69240-52020

main69240-52020-G0iSCP10..4HC;NCP15,SCP13..CLA199909-200501

DK.GREEN MC.,6R4

sub69240-52020

main69240-52020-G0iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69240-52020

main69240-52020-G1iNCP10,15,SCP10..5D..(F,U)200101-200212

LT.GREEN ME.,6Q2

sub69240-52020

main69240-52020-G2iNCP15,SCP1#..5D..(F,U)200212-200501

YELLOW GREEN ME.,6T9

sub69240-52020

main69240-52020-H0iNCP10,15,SCP10..5D..(F,U)199901-200101

LT.AQUA ME.,764

sub69240-52020

main69240-52020-J0iNCP10,15,SCP10..5D..(CLA,F,U)199901-200101

DK.BLUE MC.,8K8

sub69240-52020

main69240-52020-J2iNCP10,15,SCP10..5D..(F,U)200112-200212

BLUE ME.,8P2

sub69240-52020

main69240-52020-J2iNCP15,SCP10..5D..F200104-200108

sub69240-52020

main69240-52020-J2iNCP15,SCP10..5D..F200108-200112

sub69240-52020

main69240-52020-J3iNCP10,13..5D..RS200010-200212

STRONG BLUE M,8B6

sub69240-52020

main69240-52020-J3iNCP15,SCP10..5D..F200105-200112

sub69240-52020

main69240-52020-J4iNCP10,15,SCP10..5D..(CLA,F,U)200101-200501

DK.BLUE M.M.,8P4

sub69240-52020

main69240-52020-J5iNCP10,13..5D;SCP10..5D..ATM..F200212-200501

BLUE ME.,8P1

sub69240-52020

main69240-52020-J6iNCP15,SCP1#..5D..(F,U)200212-200501

PALE BLUE M.M.,8R0

sub69240-52020

main69240-52020-K0iNCP15,SCP1#..5D..(F,U)200308-200501

LAVENDER ME.,9AA

sub69240-52020

69330LOCK ASSY, REAR DOOR, RH

main69330-52010iSCP10..5D..B199901-200212

main69330-52030iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200112

sub69330-52150

main69330-52150iNCP1#,SCP1#..5D..(CLA,F,RS,U)200112-200212

69340LOCK ASSY, REAR DOOR, LH

main69340-52010iSCP10..5D..B199901-200212

main69340-52030iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200112

sub69340-52160

main69340-52160iNCP1#,SCP10..5D..(CLA,F,RS,U)200112-200212

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-47010iNCP1#,SCP10..5D199901-200212

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69715-52010iNCP1#,SCP10..5D199901-200212

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69716-52010iNCP1#,SCP10..5D199901-200212

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-52010iNCP1#,SCP10..5D199901-200212

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12130iNCP1#,SCP10..5D199901-200212

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-52010iNCP1#,SCP10..5D199901-200212

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-52010iNCP1#,SCP10..5D199901-200212

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-52010iNCP1#,SCP10..5D199901-200212

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-B6iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub69741-87003

main69741-87003-B8iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

sub69741-87003

main69741-87003-B8iNCP10,15,SCP10..5D..(B,CLA,F,U)200208-200212

DK.GRAY,TRIM1#

sub69741-87003

main69741-87003-B8iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM0#,96,98

sub69741-87003

main69741-87003-H0iNCP10,15,SCP10..5D..(B,F,U)199901-200112

FRENCH TURQUOISE,TRIM7#

sub69741-87003

main69741-87003-P0iNCP10,13..5D..RS200010-200212

SHADOW GRAY,TRIM9#

sub69741-87003

main69741-87003-P0iNCP10,15,SCP10..5D..(B,CLA,F,U)199901-200208

SHADOW GRAY,TRIM1#

sub69741-87003

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030iNCP1#,SCP10..5D199901-200005

main69749-32040iNCP1#,SCP10..5D200005-200212

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-10010iNCP1#,SCP10..5D199901-200212

9014860022

main90148-60022

9014880027

main90148-80027

9016450032

main90164-50032

9054104027

main90541-04027

9090189029

main90901-89029

9153160610

main91531-60610

26 parts on this diagram · 1 diagram in section
