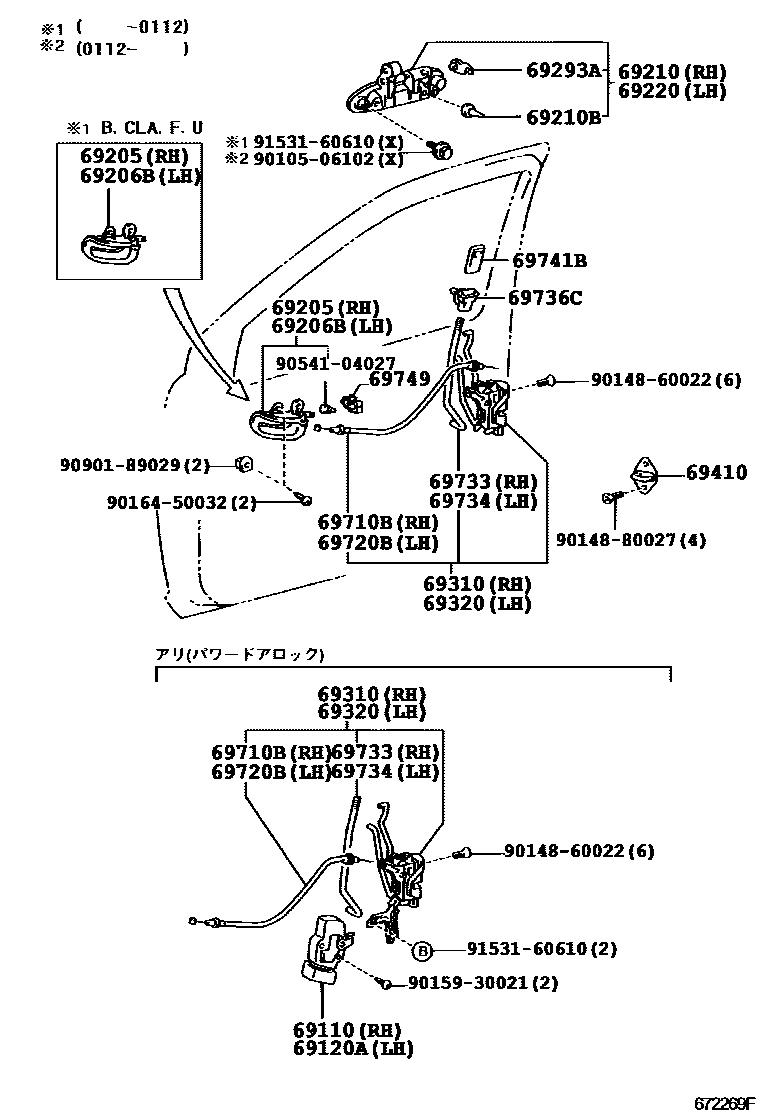

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-52010iNCP10,15,SCP10..F,RS199901-200212

main69110-52020iNCP1#,SCP10..CLA,F,RS,U199901-200212

main69110-52020iNCP15,SCP10..F200105-200112

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-52020iNCP1#,SCP10..CLA,F,RS,U199901-200212

main69120-52020iNCP15,SCP10..F200105-200112

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52010-B0iNCP10,15,SCP10..B,CLA,F,U199901-200112

SHADOW GRAY,TRIM1#

sub69205-52010

main69205-52010-B3iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200403-200501

DK.GRAY,TRIM0#

sub69205-52010

main69205-52010-H0iNCP10,15,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub69205-52010

main69205-52020-B0iNCP10,13..RS200010-200208

SHADOW GRAY,TRIM9#

sub69205-52020

main69205-52020-B6iNCP15,SCP1#..5D..(4FC,5F,CVFC)..(F,U)200212-200501

sub69205-52020

main69205-52020-B8iNCP10,13..RS200208-200212

SHADOW GRAY,TRIM9#

sub69205-52020

main69205-52040-B3iNCP10,15,SCP10..B,CLA,F,U200208-200212

SHADOW GRAY,TRIM1#

sub69205-52040

main69205-52040-B3iNCP10,15,SCP10..B,CLA,F,U200112-200208

SHADOW GRAY,TRIM12

sub69205-52040

main69205-52040-B4iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub69205-52040

main69205-52040-B5iNCP15,SCP10..(4FC,5F)..(B,F)200212-200501

DK.GRAY,TRIM9#

sub69205-52040

main69205-52090-B0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200308-200404

main69205-52090-B0iNCP1#,SCP13..CLA,RS200212-200501

DK.GRAY,TRIM9#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52010-B0iNCP10,15,SCP10..B,CLA,F,U199901-200112

SHADOW GRAY,TRIM1#

sub69206-52010

main69206-52010-B3iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200403-200501

DK.GRAY,TRIM0#

sub69206-52010

main69206-52010-H0iNCP10,15,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub69206-52010

main69206-52020-B0iNCP10,13..RS200010-200208

SHADOW GRAY,TRIM9#

sub69206-52020

main69206-52020-B6iNCP15,SCP1#..5D..(4FC,5F,CVFC)..(F,U)200212-200501

sub69206-52020

main69206-52020-B8iNCP10,13..RS200208-200212

SHADOW GRAY,TRIM9#

sub69206-52020

main69206-52040-B0iNCP15..5D..4FC..CLA200208-200212

SHADOW GRAY,TRIM1#

sub69206-52040

main69206-52040-B3iNCP10,15,SCP10..B,F,U200208-200212

SHADOW GRAY,TRIM1#

sub69206-52040

main69206-52040-B3iNCP10,15,SCP10..B,F,U200112-200208

SHADOW GRAY,TRIM12

sub69206-52040

main69206-52040-B4iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub69206-52040

main69206-52040-B5iNCP15,SCP10..(4FC,5F)..(B,F)200212-200501

DK.GRAY,TRIM9#

sub69206-52040

main69206-52080-B0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200308-200404

main69206-52080-B0iNCP1#,SCP13..CLA,RS200212-200501

DK.GRAY,TRIM9#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52010iSCP10..B199901-200501

main69210-52020-A0iNCP10,15,SCP10..F,U199901-200101

SUPER WHITE 2,040

sub69210-52020

main69210-52020-A1iNCP10,13..RS200010-200501

WHITE,068

sub69210-52020

main69210-52020-A2iNCP10,15,SCP10..CLA,F,U200112-200501

WHITE PALE MC,057

sub69210-52020

main69210-52020-B0iNCP10,15,SCP10..CLA,F,U199901-200212

SILVER ME,199

sub69210-52020

main69210-52020-B0iNCP15,SCP10..F200105-200112

sub69210-52020

main69210-52020-B1iNCP10,13..RS200010-200501

GRAY ME.,1D2

sub69210-52020

main69210-52020-B1iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69210-52020

main69210-52020-B1iNCP15,SCP10..F200105-200112

sub69210-52020

main69210-52020-B3iNCP15,SCP1#..CLA,F,U200212-200501

SILVER M.M.,1E7

sub69210-52020

main69210-52020-C0iNCP1#,SCP10..F,RS,U199901-200501

BLACK MC.,209

sub69210-52020

main69210-52020-D0iSCP10..F,U199901-199908

SUPER RED II,3E5

sub69210-52020

main69210-52020-D1iNCP15,SCP10..F200105-200112

sub69210-52020

main69210-52020-D1iNCP10,15,SCP10..F,U199901-200308

PALE ROSE ME.OP.,3N7

sub69210-52020

main69210-52020-D2iNCP1#,SCP10..F,RS,U199908-200501

SUPER RED 5,3P0

sub69210-52020

main69210-52020-D3iNCP10,15..CLA199909-200101

RED MM,3K4

sub69210-52020

main69210-52020-D4iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69210-52020

main69210-52020-D4iSCP10..4HC;NCP15,SCP13..CLA200101-200501

RED M.M.,3P1

sub69210-52020

main69210-52020-E1iNCP15,SCP1#..F,U200212-200501

PALE ORANGE MICA METALLIC,4S3

sub69210-52020

main69210-52020-F0iNCP1#,SCP10..F,RS,U199901-200112

YELLOW M.M.,580

sub69210-52020

main69210-52020-F2iNCP15,SCP1#..F,U200112-200501

CHAMPAGNE ME.,586

sub69210-52020

main69210-52020-F4iNCP15,SCP1#..F,U200212-200501

YELLOW PM.,595

sub69210-52020

main69210-52020-G0iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69210-52020

main69210-52020-G0iNCP10,15..CLA199909-200501

DK.GREEN MC.,6R4

sub69210-52020

main69210-52020-G1iNCP10,15,SCP10..F,U200101-200212

LT.GREEN ME.,6Q2

sub69210-52020

main69210-52020-G2iNCP15,SCP1#..F,U200212-200501

YELLOW GREEN ME.,6T9

sub69210-52020

main69210-52020-H0iNCP10,15,SCP10..F,U199901-200101

LT.AQUA ME.,764

sub69210-52020

main69210-52020-J0iNCP10,15,SCP10..CLA,F,U199901-200101

DK.BLUE MC.,8K8

sub69210-52020

main69210-52020-J2iNCP10,15,SCP10..F,U200112-200212

BLUE ME.,8P2

sub69210-52020

main69210-52020-J2iNCP15,SCP10..F200108-200112

sub69210-52020

main69210-52020-J2iNCP15,SCP10..F200104-200108

sub69210-52020

main69210-52020-J3iNCP10,13..RS200010-200212

STRONG BLUE M,8B6

sub69210-52020

main69210-52020-J3iNCP15,SCP10..F200105-200112

sub69210-52020

main69210-52020-J4iNCP10,15,SCP10..CLA,F,U200101-200501

DK.BLUE M.M.,8P4

sub69210-52020

main69210-52020-J5iNCP10,13;SCP10..5D..ATM..F200212-200501

BLUE ME.,8P1

sub69210-52020

main69210-52020-J6iNCP15,SCP1#..F,U200212-200501

PALE BLUE M.M.,8R0

sub69210-52020

main69210-52020-K0iNCP15,SCP1#..F,U200308-200501

LAVENDER ME.,9AA

sub69210-52020

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iNCP1#,SCP10199901-200501

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-52010iSCP10..B199901-200501

main69220-52020-A0iNCP10,15,SCP10..F,U199901-200101

SUPER WHITE 2,040

sub69220-52020

main69220-52020-A1iNCP1#,SCP1#..F,RS,U200010-200501

WHITE,068

sub69220-52020

main69220-52020-A2iNCP10,15,SCP10..CLA,F,U200112-200501

WHITE PALE MC,057

sub69220-52020

main69220-52020-B0iNCP10,15,SCP10..CLA,F,U199901-200212

SILVER ME,199

sub69220-52020

main69220-52020-B0iNCP15,SCP10..F200105-200112

sub69220-52020

main69220-52020-B1iNCP10,13..RS200010-200501

GRAY ME.,1D2

sub69220-52020

main69220-52020-B1iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69220-52020

main69220-52020-B1iNCP15,SCP10..F200105-200112

sub69220-52020

main69220-52020-B3iNCP15,SCP1#..CLA,F,U200212-200501

SILVER M.M.,1E7

sub69220-52020

main69220-52020-C0iNCP10,13,SCP10..RS,U199901-200501

BLACK MC.,209

sub69220-52020

main69220-52020-D0iSCP10..F,U199901-199908

SUPER RED II,3E5

sub69220-52020

main69220-52020-D1iNCP10,15,SCP10..F,U199901-200308

PALE ROSE ME.OP.,3N7

sub69220-52020

main69220-52020-D1iNCP15,SCP10..F200105-200112

sub69220-52020

main69220-52020-D2iNCP1#,SCP10..F,RS,U199908-200501

SUPER RED 5,3P0

sub69220-52020

main69220-52020-D3iNCP10,15..CLA199909-200101

RED MM,3K4

sub69220-52020

main69220-52020-D4iNCP10,15..CLA200101-200501

RED M.M.,3P1

sub69220-52020

main69220-52020-D4iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69220-52020

main69220-52020-E1iNCP15,SCP1#..F,U200212-200501

PALE ORANGE MICA METALLIC,4S3

sub69220-52020

main69220-52020-F0iNCP1#,SCP10..F,RS,U199901-200112

YELLOW M.M.,580

sub69220-52020

main69220-52020-F2iNCP10,15,SCP10..F,U200112-200501

CHAMPAGNE ME.,586

sub69220-52020

main69220-52020-F4iNCP15,SCP1#..F,U200212-200501

YELLOW PM.,595

sub69220-52020

main69220-52020-G0iNCP10,15..CLA199909-200501

DK.GREEN MC.,6R4

sub69220-52020

main69220-52020-G0iNCP10..5D..4FC..U;NCP15,SCP10..5D..4FC..F200204-200212

sub69220-52020

main69220-52020-G1iNCP10,15,SCP10..F,U200101-200212

LT.GREEN ME.,6Q2

sub69220-52020

main69220-52020-G2iNCP15,SCP1#..F,U200212-200501

YELLOW GREEN ME.,6T9

sub69220-52020

main69220-52020-H0iNCP10,15,SCP10..F,U199901-200101

LT.AQUA ME.,764

sub69220-52020

main69220-52020-J0iNCP10,15,SCP10..CLA,F,U199901-200101

DK.BLUE MC.,8K8

sub69220-52020

main69220-52020-J2iNCP15,SCP10..F200104-200108

sub69220-52020

main69220-52020-J2iNCP10,15,SCP10..F,U200112-200212

BLUE ME.,8P2

sub69220-52020

main69220-52020-J2iNCP15,SCP10..F200108-200112

sub69220-52020

main69220-52020-J3iNCP15,SCP10..F200105-200112

sub69220-52020

main69220-52020-J3iNCP10,13..RS200010-200212

STRONG BLUE M,8B6

sub69220-52020

main69220-52020-J4iNCP10,15,SCP10..CLA,F,U200101-200501

DK.BLUE M.M.,8P4

sub69220-52020

main69220-52020-J5iNCP10,13;SCP10..5D..ATM..F200212-200501

BLUE ME.,8P1

sub69220-52020

main69220-52020-J6iNCP15,SCP1#..F,U200212-200501

PALE BLUE M.M.,8R0

sub69220-52020

main69220-52020-K0iNCP15,SCP1#..F,U200308-200501

LAVENDER ME.,9AA

sub69220-52020

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iNCP1#,SCP10199901-200501

main69293-12040iNCP1#,SCP10199901-200501

69310LOCK ASSY, FRONT DOOR, RH

main69310-52010iSCP10..3D..B199901-200212

main69310-52030iSCP10..5D..B199901-200212

main69310-52050iNCP15,SCP10..5D..F200105-200112

sub69310-52240

main69310-52050iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200112

sub69310-52240

main69310-52060iNCP1#,SCP10..3D..(CLA,F,RS,U)199901-200112

sub69310-52230

main69310-52060iNCP15,SCP10..3D..F200105-200112

sub69310-52230

main69310-52230iNCP1#,SCP10..3D..(F,RS)200112-200212

main69310-52240iNCP1#,SCP10..5D..(CLA,F,RS,U)200112-200212

69320LOCK ASSY, FRONT DOOR, LH

main69320-52010iSCP10..3D..B199901-200212

main69320-52030iSCP10..5D..B199901-200212

main69320-52050iNCP15,SCP10..5D..F200105-200112

sub69320-52170

main69320-52050iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200112

sub69320-52170

main69320-52060iNCP15,SCP10..3D..F200105-200112

sub69320-52160

main69320-52060iNCP1#,SCP10..3D..(CLA,F,RS,U)199901-200112

sub69320-52160

main69320-52160iNCP1#,SCP10..3D..(CLA,F,RS,U)200112-200212

main69320-52170iNCP1#,SCP10..5D..(CLA,F,RS,U)200112-200212

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iNCP1#,SCP10199901-200212

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52010iNCP1#,SCP10..3D199901-200212

main69710-52020iNCP1#,SCP10..5D199901-200212

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-52010iNCP1#,SCP10..3D199901-200212

main69710-52020iNCP1#,SCP10..5D199901-200212

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-52010iNCP1#,SCP10..3D199901-200212

main69733-52020iNCP1#,SCP10..5D199901-200212

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-52010iNCP1#,SCP10..3D199901-200212

main69734-52020iNCP1#,SCP10..5D199901-200212

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12130iNCP1#,SCP10199901-200212

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-87003iNCP10,13..RS200210-200212

main69741-87003-B6iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub69741-87003

main69741-87003-B8iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM0#,96,98

sub69741-87003

main69741-87003-B8iNCP10,15,SCP10..B,CLA,F,U200208-200212

DK.GRAY,TRIM1#

sub69741-87003

main69741-87003-B8iNCP1#,SCP1#..4FC,5F,CVFC200212-200501

DK.GRAY,TRIM9#

sub69741-87003

main69741-87003-B8iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200308

DK.GRAY,TRIM96,98

sub69741-87003

main69741-87003-H0iNCP10,15,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub69741-87003

main69741-87003-P0iNCP10,13..RS200010-200210

SHADOW GRAY,TRIM9#

sub69741-87003

main69741-87003-P0iNCP10,15,SCP10..B,CLA,F,U199901-200208

SHADOW GRAY,TRIM1#

sub69741-87003

69749CLAMP, FRONT DOOR LOCK LINK

main69749-52010iNCP1#,SCP10..5D199901-200212

9010506102

main90105-06102

9014860022

main90148-60022

9014880027

main90148-80027

9015930021

main90159-30021

9016450032

main90164-50032

9054104027

main90541-04027

9090189029

main90901-89029

9153160610

main91531-60610

26 parts on this diagram · 1 diagram in section
