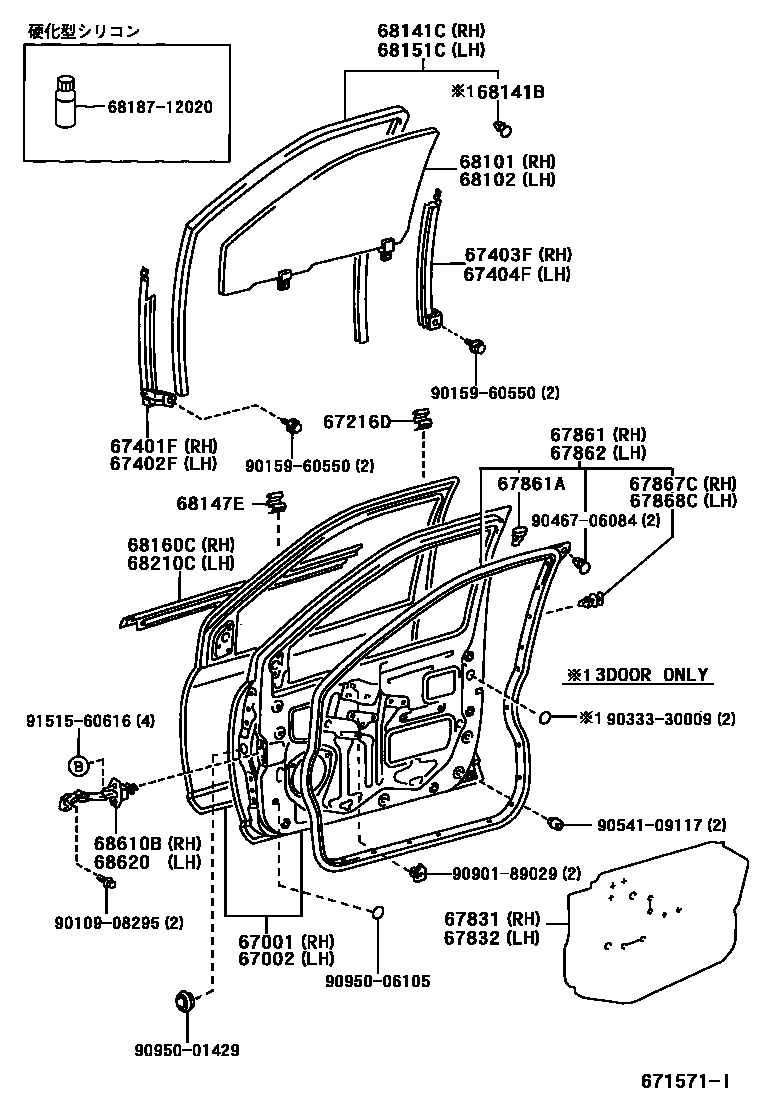

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������ 0004 1���������� 0005 1���������� 0006 1����������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52010iNCP1#,SCP10..5D199901-199911

sub67001-52011

main67001-52011iNCP1#,SCP10..5D199911-200212

main67001-52020iNCP1#,SCP10..3D199901-199910

sub67001-52021

main67001-52021iNCP1#,SCP10..3D199910-200501

main67001-52091iNCP10,13..3D200212-200501

main67001-52340iNCP1#,SCP1#..5D200212-200501

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52010iNCP1#,SCP10..5D199901-199911

sub67002-52011

main67002-52011iNCP1#,SCP10..5D199911-200212

main67002-52020iNCP1#,SCP10..3D199901-199910

sub67002-52021

main67002-52021iNCP1#,SCP10..3D199910-200501

main67002-52091iNCP10,13..3D200212-200501

main67002-52330iNCP1#,SCP1#..5D200212-200501

67216DSTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-52010iNCP1#,SCP10199901-200212

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52010iNCP1#,SCP10..5D199901-200203

sub67401-52011

main67401-52011iNCP1#,SCP1#..5D200203-200212

main67401-52020iNCP1#,SCP10..3D199901-200212

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52010iNCP1#,SCP10..5D199901-200203

sub67402-52011

main67402-52011iNCP1#,SCP1#..5D200203-200212

main67402-52020iNCP1#,SCP10..3D199901-200212

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52010iNCP1#,SCP10199901-200212

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52010iNCP1#,SCP10199901-200212

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52010iNCP10,15,SCP10..5D..(B,F,RS)199901-200212

main67831-52020iNCP1#,SCP10..5D..(CLA,RS,U)199901-200212

main67831-52030iNCP10,15,SCP10..3D..(B,F,RS)199901-200501

main67831-52040iNCP10,13..3D200212-200501

main67831-52040iNCP1#,SCP10..3D..(CLA,RS,U)199901-200212

main67831-52170iNCP1#,SCP1#..5D..(CLA,F,RS,U)200212-200501

main67831-52260iNCP15,SCP10..5D..(4FC,5F)..(B,F)200212-200501

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-52010iNCP10,15,SCP10..5D..(B,F,RS,U)199901-200212

main67831-52020iNCP1#,SCP10..5D..(CLA,RS,U)199901-200212

main67831-52030iNCP10,15,SCP10..3D..(B,F,RS)199901-200501

main67831-52040iNCP1#,SCP10..3D..(CLA,RS,U)199901-200212

main67831-52040iNCP10,13..3D200212-200501

main67832-52090iNCP1#,SCP1#..5D..(CLA,F,RS,U)200212-200501

sub67831-52170

main67832-52170iNCP15,SCP10..5D..(4FC,5F)..(B,F)200212-200501

sub67831-52260

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52010iNCP1#,SCP1#..5D199901-200212

main67861-52020iNCP1#,SCP10..3D199901-200212

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52010iSCP10..5D199901-199907

main67867-52020iNCP1#,SCP10..3D199908-200212

main67867-52030iNCP1#,SCP10..3D199908-200212

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52010iNCP1#,SCP1#..5D199901-200212

main67862-52020iNCP1#,SCP10..3D199901-200212

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNCP1#,SCP10..5D199901-200212

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iNCP1#,SCP10..3D199901-200212

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52010iSCP10..5D..B199901-200212

sub68110-52330

main68110-52020iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200212

sub68110-52021

main68110-52030iSCP10..3D..B199901-200212

sub68110-52031

main68110-52040iNCP1#,SCP10..3D..(F,RS)199901-200212

sub68110-52041

main68110-52210iSCP13200212

sub68110-52211

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52010iSCP10..5D..B199901-200212

main68120-52020iNCP1#,SCP10..5D..(CLA,F,RS,U)199901-200212

sub68120-52021

main68120-52030iSCP10..3D..B199901-200212

sub68120-52031

main68120-52040iNCP1#,SCP10..3D..(CLA,F,RS,U)199901-200212

sub68120-52041

main68120-52210iSCP13200212

sub68120-52211

68141BCLIP, DOOR GLASS RUN

main90467-06084iNCP1#,SCP10..3D199901-200212

68141CRUN, FRONT DOOR GLASS, RH

main68141-52010iNCP1#,SCP10..5D199901-200205

sub68141-52130

main68141-52011iNCP1#,SCP10..5D200205-200212

main68141-52020iNCP1#,SCP10..3D199901-200205

sub68141-52140

main68141-52021iNCP1#,SCP10..3D200205-200212

68147ESTOP, FRONT DOOR GLASS, UPPER

main68147-52010iNCP1#,SCP10199901-200212

68151CRUN, FRONT DOOR GLASS, LH

main68151-52010iNCP1#,SCP10..5D199901-200205

sub68151-52120

main68151-52011iNCP1#,SCP1#..5D200205-200212

main68151-52020iNCP1#,SCP10..3D199901-200205

sub68151-52140

main68151-52021iNCP1#,SCP10..3D200205-200212

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52010iNCP1#,SCP1#..5D199901-200212

main68160-52020iNCP1#,SCP10..3D199901-200212

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52010iNCP1#,SCP10..5D199901-200212

main68210-52020iNCP1#,SCP10..3D199901-200212

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52010iNCP1#,SCP10199901-200212

68620CHECK ASSY, FRONT DOOR, LH

main68620-52010iNCP1#,SCP1#199901-200212

6818712020WEATHERSTRIP, SIDE WINDOW GLASS

main68187-12020

9010908295

main90109-08295

9015960550

main90159-60550

9033330009

main90333-30009

9046706084

main90467-06084

9054109117

main90541-09117

9090189029

main90901-89029

9095001429

main90950-01429

9095006105

main90950-06105

9151560616

main91515-60616

34 parts on this diagram · 6 diagrams in section
