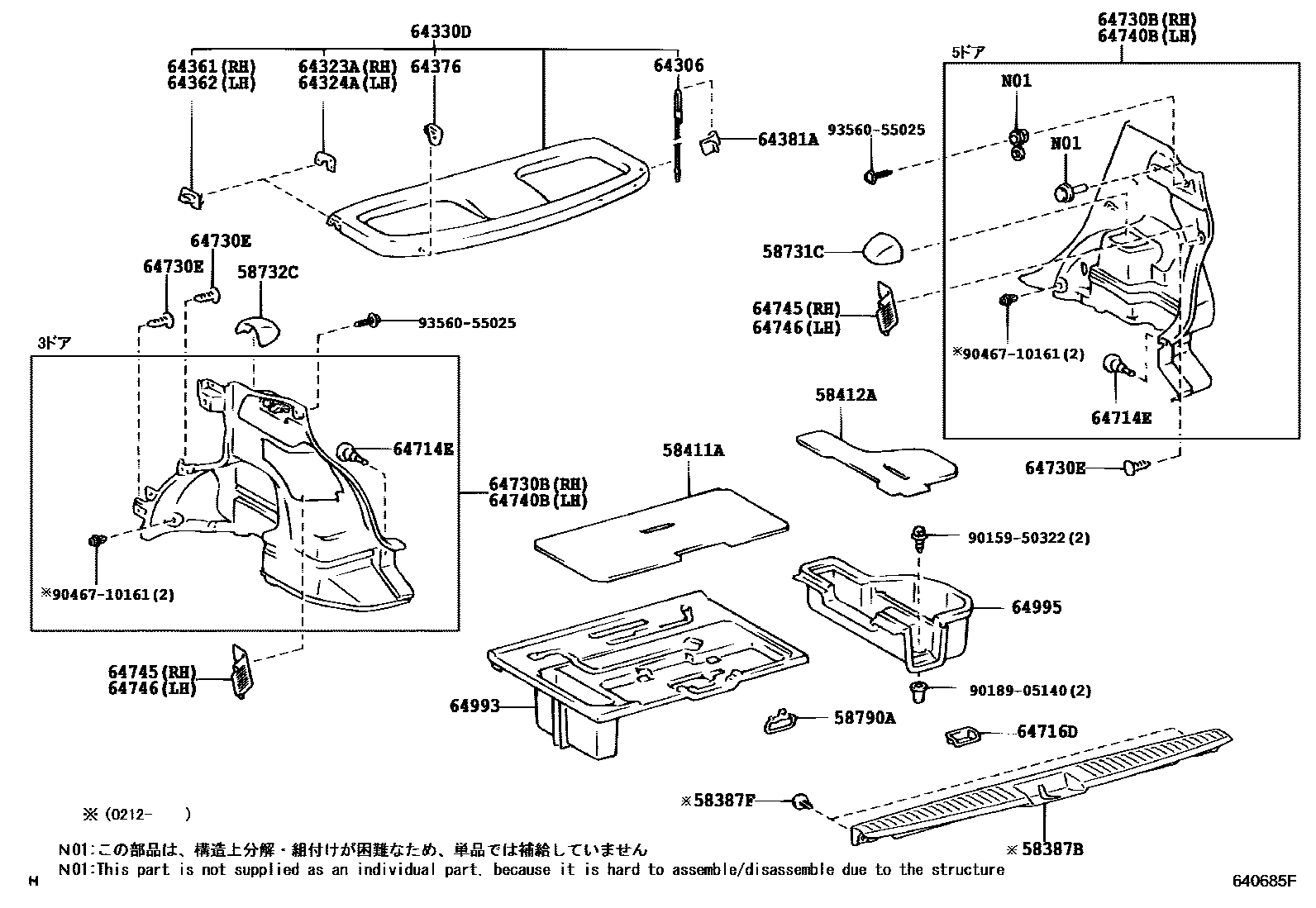

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-52020-B0iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub58387-52020

main58387-52020-B1iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM0#,96,98

sub58387-52020

main58387-52020-B1iNCP10,13,SCP13;NCP15,SCP10..5D..(4FC,5F)..(CLA,F,U)200212-200501

DK.GRAY,TRIM9#

sub58387-52020

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-08186-B7iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub90467-08186

main90467-08186-C0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

BLACK,TRIM9#

sub90467-08186

main90467-08186-C0iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

BLACK,TRIM0#,96,98

sub90467-08186

58411ABOARD, DECK, NO.1

main58411-52010iNCP15199908-200212

58412ABOARD, DECK, NO.2

main58412-52010iNCP15199908-200212

58731CCAP, REAR ABSORBER

main58731-10040-B2iNCP15..5D..4FC..F200212-200501

DK.GRAY,TRIM9#

sub58731-10040

main58731-10040-B2iNCP15..5F;NCP15..CLA,U;NCP15..3D..4FC200212-200501

DK.GRAY,TRIM0#,96,98

sub58731-10040

main58731-10040-H1iNCP15..F,U199908-200112

FRENCH TURQUOISE,TRIM7#

sub58731-10040

main58731-10040-P0iNCP15199908-200212

SHADOW GRAY,TRIM1#

sub58731-10040

main58731-52010-B0iNCP10,SCP10..B,CLA,F,U199901-200212

SHADOW GRAY,TRIM1#

sub58731-52010

main58731-52010-B0iNCP10,13..RS200010-200212

SHADOW GRAY,TRIM9#

sub58731-52010

main58731-52010-B1iSCP10..5F..F;SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

DK.GRAY,TRIM9#

sub58731-52010

main58731-52010-B1iSCP10..5D..4FC..F200212-200501

DK.GRAY,TRIM0#,96,98

sub58731-52010

main58731-52010-B1iSCP13..U200308-200501

DK.GRAY,TRIM96,98

sub58731-52010

main58731-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub58731-52010

main58731-52010-H0iNCP10,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub58731-52010

58732CCAP, REAR ABSORBER

main58731-10040-B2iNCP15..5D..4FC..F200212-200501

DK.GRAY,TRIM9#

sub58731-10040

main58731-10040-B2iNCP15..5F;NCP15..CLA,U;NCP15..3D..4FC200212-200501

DK.GRAY,TRIM0#,96,98

sub58731-10040

main58731-10040-H1iNCP15..F,U199908-200112

FRENCH TURQUOISE,TRIM7#

sub58731-10040

main58731-10040-P0iNCP15199908-200212

SHADOW GRAY,TRIM1#

sub58731-10040

main58732-52010-B0iNCP10,SCP10..B,CLA,F,U199901-200212

SHADOW GRAY,TRIM1#

sub58732-52010

main58732-52010-B0iNCP10,13..RS200010-200212

SHADOW GRAY,TRIM9#

sub58732-52010

main58732-52010-B1iSCP10..5F..F;SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

DK.GRAY,TRIM0#,96,98

sub58732-52010

main58732-52010-B1iSCP13..U200212-200501

DK.GRAY,TRIM9#

sub58732-52010

main58732-52010-B1iSCP13..U200308-200501

DK.GRAY,TRIM96,98

sub58732-52010

main58732-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub58732-52010

main58732-52010-H0iNCP10,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub58732-52010

58790ACARRIER ASSY, JACK

main58790-52010iNCP10,13,SCP10199901-200212

main58790-52020iNCP15199908-200212

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-52010iNCP1#,SCP10..CLA,F,RS,U199901-200212

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-52010iNCP1#,SCP10..CLA,F,RS,U199901-200212

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64323-52010iNCP1#,SCP10..CLA,F,RS,U199901-200212

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-52010-C0iNCP10,15,SCP10..F,U199901-200112

BLACK,TRIM1#,7#

main64330-52010-C0iNCP10,15..CLA199909-200212

BLACK,TRIM1#

main64330-52010-C0iNCP10,13..RS200010-200501

BLACK,TRIM9#

main64330-52010-C0iSCP10..4HC200212-200501

BLACK,TRIM0#

main64330-52010-C0iSCP10..4HC200212-200501

BLACK,TRIM0#,96,98

64361HINGE, PACKAGE TRAY TRIM, RH

main64361-52010iNCP1#,SCP10..CLA,F,RS,U199901-200212

64362HINGE, PACKAGE TRAY TRIM, LH

main64362-52010iNCP1#,SCP10..CLA,F,RS,U199901-200212

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-52010iNCP1#,SCP10..CLA,F,RS,U199901-200212

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNCP1#,SCP10199901-200212

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-06017-B7iNCP15..CLA,U;NCP15,SCP10..5F..F;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

DK.GRAY,TRIM9#

sub90467-06017

main90467-06017-B7iNCP15,SCP10..5D..4FC..F200212-200501

DK.GRAY,TRIM0#,96,98

sub90467-06017

main90467-06017-B7iSCP13..U200308-200501

DK.GRAY,TRIM96,98

sub90467-06017

main90467-06017-H0iNCP10,15,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub90467-06017

main90467-06017-P0iNCP10,15,SCP10..B,CLA,F,U199901-200212

SHADOW GRAY,TRIM1#

sub90467-06017

main90467-06017-P0iNCP10,13..RS200010-200212

SHADOW GRAY,TRIM9#

sub90467-06017

main90467-06017-P1iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub90467-06017

64716DCOVER, DECK TRIM, REAR

main64716-52010iNCP1#,SCP10..F,RS;NCP15..5D..4FC..(CLA,U)200112-200212

main64716-52020iSCP10..B200112-200212

main64716-52020iNCP1#,SCP10199901-200112

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52010-B0iSCP10..5D..B199901-199908

sub64730-52090

main64730-52010-H0iSCP10..5D..B199901-199908

sub64730-52090

main64730-52020-B0iNCP10..5D..U;SCP10..5D..(B,F)199901-200212

SHADOW GRAY,TRIM1#

sub64730-52020

main64730-52020-B0iNCP10..5D..RS200010-200212

SHADOW GRAY,TRIM9#

sub64730-52020

main64730-52020-B1iSCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

sub64730-52020

main64730-52020-B1iSCP1#..5D..(4FC,CVFC)..(F,U)200308-200401

DK.GRAY,TRIM96,98

sub64730-52020

main64730-52020-B1iSCP1#..5D..(4FC,CVFC)..(F,U)200401-200501

DK.GRAY,TRIM0#,96,98

sub64730-52020

main64730-52020-B2iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub64730-52020

main64730-52020-H0iSCP10..5D..(B,F)199901-200112

FRENCH TURQUOISE,TRIM7#

sub64730-52020

main64730-52030-B1iNCP15..CLA,U;NCP15..5D..5F200212-200501

SHADOW GRAY,TRIM0#,96,98

main64730-52030-B1iNCP15..5D199908-200212

SHADOW GRAY,TRIM1#

main64730-52030-B1iNCP15..CLA,U;NCP15..5D..5F200212-200501

SHADOW GRAY,TRIM9#

main64730-52030-H1iNCP15..5D..(F,U)199908-200112

TORQUOISE,TRIM7#

main64730-52040-B0iSCP10..3D..(B,F)199901-200212

SHADOW GRAY,TRIM1#

sub64730-52040

main64730-52040-B0iNCP10..3D..RS200010-200212

SHADOW GRAY,TRIM9#

sub64730-52040

main64730-52040-B1iNCP10,13,SCP10..3D..(F,RS)200212-200501

DK.GRAY,TRIM9#

sub64730-52040

main64730-52040-H0iSCP10..3D..(B,F)199901-200112

FRENCH TURQUOISE,TRIM7#

sub64730-52040

main64730-52050-B1iNCP15..3D200212-200501

SHADOW GRAY,TRIM9#

main64730-52050-B1iNCP15..3D199908-200212

SHADOW GRAY,TRIM1#

main64730-52050-H1iNCP15..3D..(F,U)199908-200112

TORQUOISE,TRIM7#

main64730-52060-B0iSCP10..3D..B199901-199908

sub64730-52070

main64730-52060-H0iSCP10..3D..B199901-199908

sub64730-52070

main64730-52070-B0iSCP10..3D..U199901-200212

sub64730-52070

main64730-52070-B0iNCP10,13..3D..RS200010-200212

sub64730-52070

main64730-52070-B1iNCP10,13,SCP10..3D..(B,RS)200212-200501

sub64730-52070

main64730-52070-H0iSCP10..3D..U199901-200112

sub64730-52070

main64730-52090-B0iSCP10..5D..4FC..F200202-200212

sub64730-52090

main64730-52090-B0iNCP10,13..5D..RS200010-200212

sub64730-52090

main64730-52090-B0iNCP10,SCP10..5D..(B,CLA,U)199901-200212

sub64730-52090

main64730-52090-B1iNCP10,13,SCP1#..5D..(B,CLA,RS,U)200212-200501

sub64730-52090

main64730-52090-H0iNCP10,SCP10..5D..(B,U)199901-200112

sub64730-52090

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-09214-B0iNCP15..5D199908-200212

SHADOW GRAY,TRIM1#

main90467-09214-B1iNCP15..5D..4FC..F200212-200501

DK.GRAY,TRIM9#

main90467-09214-B1iNCP15..5D..4FC..F200212-200501

DK.GRAY,TRIM0#,96,98

main90467-09214-H0iNCP15..5D..(F,U)199908-200112

FRENCH TURQUOISE,TRIM7#

64740BBOARD, DECK TRIM SIDE, LH

main64740-52010-B0iSCP10..5D..B199901-199908

sub64740-52090

main64740-52010-H0iSCP10..5D..B199901-199908

sub64740-52090

main64740-52020-B0iNCP10..5D..RS200010-200112

SHADOW GRAY,TRIM9#

sub64740-52020

main64740-52020-B0iSCP10..5D..B199901-200212

SHADOW GRAY,TRIM1#

sub64740-52020

main64740-52020-H0iSCP10..5D..(B,F)199901-200112

FRENCH TURQUOISE,TRIM7#

sub64740-52020

main64740-52030-B1iNCP15..5D199908-200112

SHADOW GRAY,TRIM1#

main64740-52030-H1iNCP15..5D..(F,U)199908-200112

TORQUOISE,TRIM7#

main64740-52031-B1iNCP15..5D200112-200212

SHADOW GRAY,TRIM1#

main64740-52031-B1iNCP15..CLA,U;NCP15..5D..5F200212-200501

SHADOW GRAY,TRIM9#

main64740-52031-B1iNCP15..CLA,U;NCP15..5D..5F200212-200501

SHADOW GRAY,TRIM0#,96,98

main64740-52040-B0iSCP10..3D..B199901-200212

SHADOW GRAY,TRIM1#

sub64740-52040

main64740-52040-B0iNCP10..3D..RS200010-200112

SHADOW GRAY,TRIM9#

sub64740-52040

main64740-52040-H0iSCP10..3D..(B,F)199901-200112

FRENCH TURQUOISE,TRIM7#

sub64740-52040

main64740-52050-B1iNCP15..3D199908-200112

SHADOW GRAY,TRIM1#

main64740-52050-H1iNCP15..3D..(F,U)199908-200112

TORQUOISE,TRIM7#

main64740-52051-B1iNCP15..3D200112-200212

SHADOW GRAY,TRIM1#

main64740-52051-B1iNCP15..3D200212-200501

SHADOW GRAY,TRIM9#

main64740-52060-B0iSCP10..3D..B199901-199908

sub64740-52070

main64740-52060-H0iSCP10..3D..B199901-199908

sub64740-52070

main64740-52070-B0iSCP10..3D..B199908-200212

sub64740-52070

main64740-52070-B0iNCP10,13..3D..RS200010-200112

sub64740-52070

main64740-52070-B0iNCP10,SCP10..3D..(CLA,U)199901-200112

SHADOW GRAY,TRIM1#

sub64740-52070

main64740-52070-B2iSCP10..3D..B200212-200501

sub64740-52070

main64740-52070-H0iSCP10..3D..B199908-200112

sub64740-52070

main64740-52070-H0iNCP10,SCP10..3D..U199901-200112

FRENCH TURQUOISE,TRIM7#

sub64740-52070

main64740-52090-B0iNCP10,13..5D..RS200010-200112

sub64740-52090

main64740-52090-B0iSCP10..5D..B199908-200212

sub64740-52090

main64740-52090-B0iNCP10,SCP10..5D..(CLA,U)199901-200112

SHADOW GRAY,TRIM1#

sub64740-52090

main64740-52090-B2iSCP10..5D..B200212-200501

sub64740-52090

main64740-52090-H0iSCP10..5D..B199908-200112

sub64740-52090

main64740-52090-H0iNCP10,SCP10..5D..U199901-200112

FRENCH TURQUOISE,TRIM7#

sub64740-52090

main64740-52160-B0iNCP10,13..5D..RS200112-200212

sub64740-52160

main64740-52160-B0iNCP10,13..5D..RS200112-200212

sub64740-52160

main64740-52160-B0iSCP10..5D..4FC..F200202-200212

sub64740-52160

main64740-52160-B1iNCP10,13,SCP13..5D200212-200501

sub64740-52160

main64740-52170-B0iNCP10..5D..U;SCP10..5D..F200112-200212

SHADOW GRAY,TRIM1#

sub64740-52170

main64740-52170-B0iNCP10..5D..U;SCP10..5D..F200112-200212

SHADOW GRAY,TRIM9#

sub64740-52170

main64740-52170-B1iSCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM9#

sub64740-52170

main64740-52170-B1iSCP1#..5D..(4FC,CVFC)..(F,U)200401-200501

DK.GRAY,TRIM0#,96,98

sub64740-52170

main64740-52170-B1iSCP1#..5D..(4FC,CVFC)..(F,U)200308-200401

DK.GRAY,TRIM96,98

sub64740-52170

main64740-52170-B2iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub64740-52170

main64740-52210-B0iNCP10,SCP10..3D..(CLA,U)200112-200212

sub64740-52210

main64740-52210-B0iNCP10,13..3D..RS200112-200212

sub64740-52210

main64740-52210-B1iNCP10,13..3D200212-200501

sub64740-52210

main64740-52220-B0iNCP10..3D..U;SCP10..3D..F200112-200212

SHADOW GRAY,TRIM9#

sub64740-52220

main64740-52220-B0iNCP10..3D..RS200112-200212

SHADOW GRAY,TRIM1#

sub64740-52220

main64740-52220-B1iNCP10,13,SCP10..3D..(F,RS)200212-200501

DK.GRAY,TRIM9#

sub64740-52220

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52010-B0iNCP10,SCP10..B,CLA,F,U199901-200212

SHADOW GRAY,TRIM1#

sub64745-52010

main64745-52010-B0iNCP10,13..RS200010-200212

SHADOW GRAY,TRIM9#

sub64745-52010

main64745-52010-B2iSCP13..U200308-200501

DK.GRAY,TRIM96,98

sub64745-52010

main64745-52010-B2iSCP10..5D..4FC..F200212-200501

DK.GRAY,TRIM9#

sub64745-52010

main64745-52010-B2iSCP10..5F..F;SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

DK.GRAY,TRIM0#,96,98

sub64745-52010

main64745-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub64745-52010

main64745-52010-H0iNCP10,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub64745-52010

main64745-52040-B1iNCP15..5F;NCP15..CLA,U;NCP15..3D..4FC200212-200501

SHADOW GRAY,TRIM0#,96,98

main64745-52040-B1iNCP15199908-200212

SHADOW GRAY,TRIM1#

main64745-52040-B1iNCP15..5D..4FC..F200212-200501

SHADOW GRAY,TRIM9#

main64745-52040-H1iNCP15..F,U199908-200112

TORQUOISE,TRIM7#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52010-B0iNCP10,13..RS200010-200212

SHADOW GRAY,TRIM9#

sub64746-52010

main64746-52010-B0iNCP10,SCP10..B,CLA,F,U199901-200212

SHADOW GRAY,TRIM1#

sub64746-52010

main64746-52010-B2iSCP10..5F..F;SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

DK.GRAY,TRIM9#

sub64746-52010

main64746-52010-B2iSCP13..U200308-200501

DK.GRAY,TRIM96,98

sub64746-52010

main64746-52010-B2iSCP10..5F..F;SCP10..3D..4FC..F;NCP10,13,SCP1#..B,CLA,RS200212-200501

DK.GRAY,TRIM0#,96,98

sub64746-52010

main64746-52010-B3iSCP10..4HC200212-200501

DK.CHARCOAL,TRIM0#

sub64746-52010

main64746-52010-H0iNCP10,SCP10..B,F,U199901-200112

FRENCH TURQUOISE,TRIM7#

sub64746-52010

main64746-52040-B1iNCP15..5D..4FC..F200212-200501

SHADOW GRAY,TRIM0#,96,98

main64746-52040-B1iNCP15199908-200212

SHADOW GRAY,TRIM1#

main64746-52040-B1iNCP15..5D..4FC..F200212-200501

SHADOW GRAY,TRIM9#

main64746-52040-H1iNCP15..F,U199908-200112

TORQUOISE,TRIM7#

64993BOX, DECK FLOOR, REAR

main64993-52010iNCP15199908-200108

sub64993-52011

main64993-52011iNCP15200108-200212

64995BOX, DECK FLOOR, RH

main64995-52010iNCP15199908-200212

9015950322

main90159-50322

9018905140

main90189-05140

9046710161

main90467-10161

9356055025

main93560-55025

28 parts on this diagram · 2 diagrams in section
