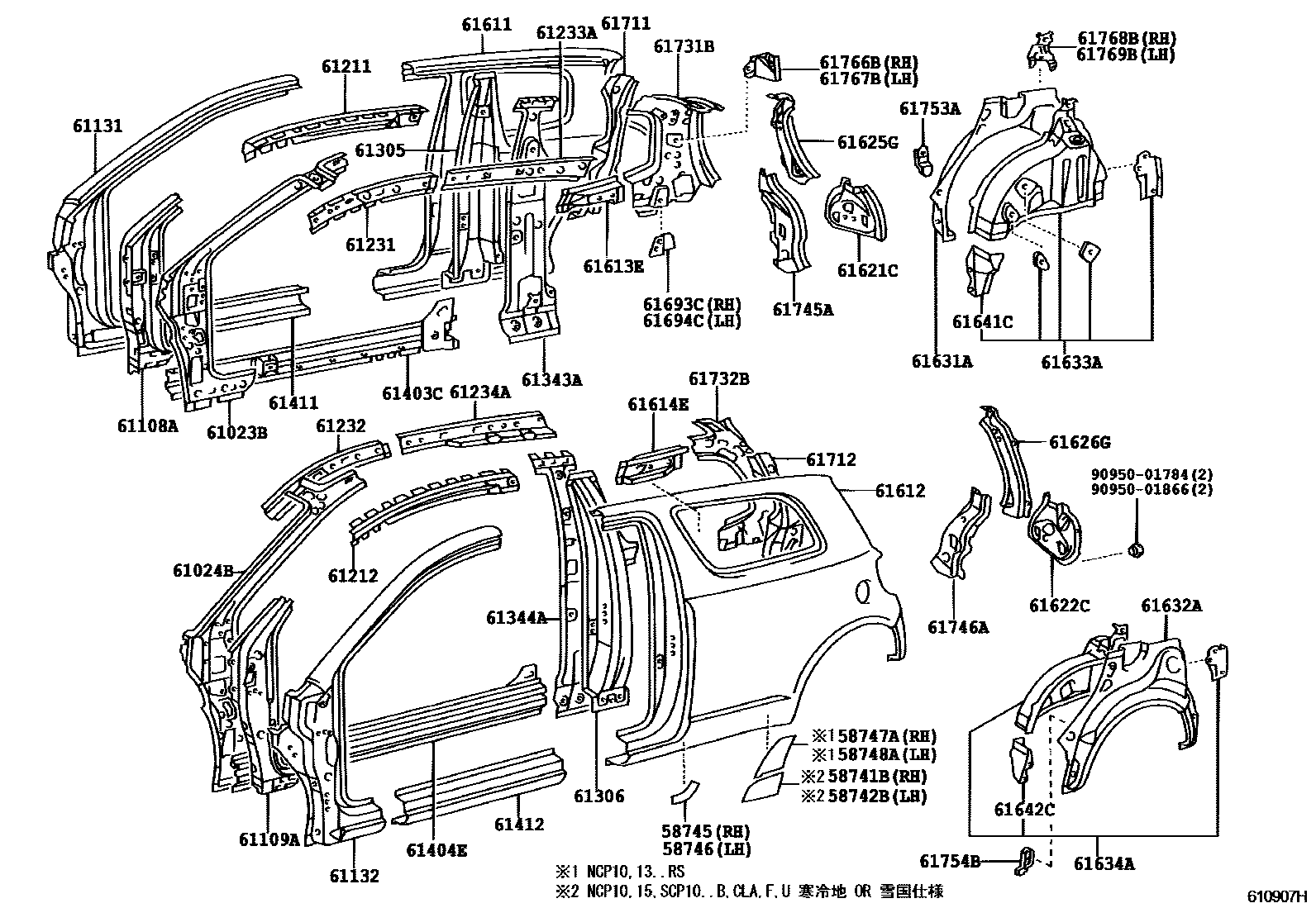

SIDE MEMBER

0001 1���� ���� 0002 1���� ���� 0003 1���� ���� 0004 1���� ���� 0005 1 0006 1�����, ��� 0007 1�����, ���

58741BPROTECTOR, QUARTER PANEL, RH

main58741-52010iNCP1#,SCP10..5D199901-199911

sub58741-52011

main58741-52011iNCP1#,SCP10..5D199911-200008

sub58741-52012

main58741-52012iNCP10,15,SCP10..5D..(B,CLA,F,U)200008-200212

main58741-52020iNCP1#,SCP10..3D199901-199911

sub58741-52021

main58741-52021iNCP1#,SCP10..3D199911-200008

sub58741-52022

main58741-52022iNCP10,15,SCP10..3D..(B,CLA,F,U)200008-200212

58742BPROTECTOR, QUARTER PANEL, LH

main58742-52010iNCP1#,SCP10..5D199901-199911

sub58742-52011

main58742-52011iNCP1#,SCP10..5D199911-200008

sub58742-52012

main58742-52012iNCP10,15,SCP10..5D..(B,CLA,F,U)200008-200212

main58742-52020iNCP1#,SCP10..3D199901-199911

sub58742-52021

main58742-52021iNCP1#,SCP10..3D199911-200008

sub58742-52022

main58742-52022iNCP10,15,SCP10..3D..(B,CLA,F,U)200008-200212

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58745-52010iNCP10,15,SCP10..3D..(B,CLA,F,U)199901-200212

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58746-52010iNCP10,15,SCP10..3D..(B,CLA,F,U)199901-200212

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-52012iNCP10,13..5D..RS200010-200212

main58747-52022iNCP10,13..3D..RS200010-200212

58748APROTECTOR, QUARTER PANEL, REAR LH

main58748-52012iNCP13..5D200010-200212

main58748-52022iNCP13..3D200010-200212

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-52010iNCP1#,SCP10199901-199912

sub61023-52011

main61023-52011iNCP1#,SCP10199912-200212

main61023-52100iNCP1#,SCP1#200212-200501

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-52010iNCP1#,SCP10199901-199912

sub61024-52011

main61024-52011iNCP1#,SCP10199912-200212

main61024-52080iNCP1#,SCP1#200212-200501

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-52010iNCP1#,SCP10199901-199910

sub61108-52011

main61108-52011iNCP1#,SCP10199910-200202

main61108-52090iNCP1#,SCP10200202-200212

main61108-52100iNCP1#,SCP1#200212

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-52010iNCP1#,SCP10199901-199912

sub61109-52011

main61109-52011iNCP1#,SCP10199912-200202

main61109-52090iNCP1#,SCP10200202-200212

main61109-52120iNCP1#,SCP1#200212

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52010iNCP10,15,SCP10..B,CLA,F,U199901-200212

main61131-52090iNCP10,13..RS200010-200212

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52010iNCP10,15,SCP10..B,CLA,F,U199901-200212

main61132-52080iNCP10,13200010-200212

61211RAIL, ROOF SIDE, OUTER RH

main61201-52050iNCP1#,SCP10..3D200212

main61201-52060iNCP1#,SCP1#..5D200212

main61211-52010iNCP15,SCP10..5D199901-199909

sub61211-52011

main61211-52011iNCP1#,SCP10..5D199909-200212

sub61211-52012

main61211-52020iNCP15,SCP10..3D199901-199909

sub61211-52021

main61211-52021iNCP1#,SCP10..3D199909-200212

61212RAIL, ROOF SIDE, OUTER LH

main61202-52050iNCP1#,SCP1#..5D200212

main61202-52060iNCP1#,SCP10..3D200212

main61212-52010iNCP15,SCP10..5D199901-199909

sub61212-52011

main61212-52011iNCP1#,SCP10..5D199909-200212

sub61212-52012

main61212-52020iNCP15,SCP10..3D199901-199909

sub61212-52021

main61212-52021iNCP1#,SCP10..3D199909-200212

61231RAIL, ROOF SIDE, INNER RH

main61231-52020iNCP1#,SCP10..5D199901-199910

sub61231-52021

main61231-52021iNCP1#,SCP10..5D199910-200212

main61231-52031iNCP1#,SCP10..3D199910-200112

sub61231-52041

main61231-52040iNCP1#,SCP10..3D199901-199910

sub61231-52041

main61231-52041iNCP1#,SCP10..3D200112-200212

main61231-52041iNCP1#,SCP10..3D..(CLA,F,RS,U)199910-200112

main61231-52250iNCP1#,SCP1#200212-200501

61232RAIL, ROOF SIDE, INNER LH

main61232-52020iNCP1#,SCP10..5D199901-199910

sub61232-52021

main61232-52021iNCP1#,SCP10..5D199910-200212

main61232-52031iNCP1#,SCP10..3D199910-200112

sub61232-52041

main61232-52040iNCP1#,SCP10..3D199901-199910

sub61232-52041

main61232-52041iNCP1#,SCP10..3D..(CLA,F,RS,U)199910-200112

main61232-52041iNCP1#,SCP10..3D200112-200212

main61232-52260iNCP1#,SCP1#200212-200501

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-52020iNCP1#,SCP10..3D199901-199910

sub61233-52021

main61233-52021iNCP1#,SCP10..3D199910-200212

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-52020iNCP1#,SCP10..3D199901-199910

sub61234-52021

main61234-52021iNCP1#,SCP10..3D199910-200212

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-52010iSCP10..5D199901-199905

sub61305-52011

main61305-52011iNCP1#,SCP10..5D199905-200212

sub61305-52911

main61305-52020iSCP10..3D199901-199905

sub61305-52021

main61305-52021iNCP1#,SCP10..3D199905-200212

main61305-52070iNCP1#,SCP10..3D200212

main61305-52901iNCP1#,SCP1#..5D200212

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-52010iSCP10..5D199901-199905

sub61306-52011

main61306-52011iNCP1#,SCP10..5D199905-200212

sub61306-52912

main61306-52020iSCP10..3D199901-199905

sub61306-52021

main61306-52021iNCP1#,SCP10..3D199905-200212

main61306-52090iNCP1#,SCP10..3D200212

main61306-52901iNCP1#,SCP1#..5D200212

61343APILLAR, CENTER BODY, INNER RH

main61343-52900iNCP1#,SCP10..5D199901-200212

main61343-52901iNCP1#,SCP10..3D199901-200212

main61343-52903iNCP1#,SCP1#..5D200212-200501

main61343-52904iNCP1#,SCP10..3D200212-200501

61344APILLAR, CENTER BODY, INNER LH

main61344-52900iNCP1#,SCP10..5D199901-200212

main61344-52901iNCP1#,SCP10..3D199901-200212

main61344-52903iNCP1#,SCP1#..5D200212-200501

main61344-52904iNCP1#,SCP10..3D200212-200501

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-52010iNCP1#,SCP10..5D199901-200212

main61403-52020iNCP1#,SCP10..3D199901-200212

sub61403-52110

main61403-52101iNCP1#,SCP1#..5D200212

main61403-52110iNCP1#,SCP10..3D200212

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-52010iNCP1#,SCP10..5D199901-200212

main61404-52020iNCP1#,SCP10..3D199901-200212

sub61404-52110

main61404-52101iNCP1#,SCP1#..5D200212

main61404-52110iNCP1#,SCP10..3D200212

61411PANEL, ROCKER, OUTER RH

main61411-52010iNCP15,SCP1#..5D199901-200212

main61411-52020iNCP10,15,SCP10..3D..(B,CLA,F,U)199901-200212

main61411-52110iNCP10,13..3D..RS200010-200212

main61411-52120iNCP10,13..5D..RS200010-200212

61412PANEL, ROCKER, OUTER LH

main61412-52010iNCP10,15,SCP10..5D..(B,CLA,F,U)199901-200212

main61412-52020iNCP15,SCP10..3D199901-200212

main61412-52110iNCP10,13..3D200010-200212

main61412-52120iNCP10,13..5D..RS200010-200212

61611PANEL, QUARTER, RH

main61601-52010iNCP15,SCP1#..5D199901-200212

sub61601-52011

main61601-52120iNCP10,13..5D..RS200010-200212

sub61601-52121

main61611-52020iNCP10,15,SCP10..3D..(B,CLA,F,U)199901-200212

main61611-52120iNCP10,13..3D200112-200212

61612PANEL, QUARTER, LH

main61602-52010iNCP15,SCP1#..5D199901-200212

sub61602-52011

main61602-52020iNCP10,15,SCP10..3D..(B,CLA,F,U)199901-200212

main61602-52130iNCP10,13..3D..RS200010-200212

main61602-52140iNCP10,13..5D..RS200010-200212

sub61602-52141

61613EPANEL, QUARTER, INNER RH

main61613-52010iNCP1#,SCP10..3D199901-200212

61614EPANEL, QUARTER, INNER LH

main61614-52010iNCP1#,SCP10..3D199901-200501

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-52010iNCP1#,SCP10199901-200212

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-52010iNCP1#,SCP10199901-200212

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-52010iNCP1#,SCP10199901-200212

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-52010iNCP1#,SCP10199901-200212

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52010iNCP1#,SCP10199901-200212

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-52010iNCP1#,SCP10199901-200212

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-52900iSCP10..B,U199901-199907

sub61607-52912

main61607-52901iSCP10..B199901-199907

sub61607-52913

main61607-52902iSCP10..B,F199901-199907

sub61607-52914

main61607-52912iNCP10,13,SCP10..B,CLA,RS,U199907-200212

sub61607-52914

sub90333-25003

main61607-52912iSCP10..5D..4FC..F200202-200308

sub61607-52914

sub90333-25003

main61607-52913iSCP10..B199907-200101

sub61607-52914

sub90333-25003

main61607-52914iSCP10..B,F;NCP10..RS,U199907-200212

main61607-52916iNCP15199908-200212

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-52900iSCP10..B,U199901-199907

sub61608-52912

main61608-52901iSCP10..B199901-199907

sub61608-52913

main61608-52902iSCP10..B,F199901-199907

sub61608-52914

main61608-52912iSCP10..5D..4FC..F200202-200308

sub61608-52914

sub90333-25003

main61608-52912iNCP10,13,SCP10..B,CLA,RS,U199907-200501

sub61608-52914

sub90333-25003

main61608-52913iSCP10..B199907-200101

sub61608-52914

sub90333-25003

main61608-52914iNCP10,13,SCP1#..F,RS,U199907-200501

main61608-52917iNCP15199908-200501

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-52010iNCP10,13,SCP10199901-200212

main61641-52020iNCP15199908-200212

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-52010iNCP10,13,SCP10199901-200212

main61642-52020iNCP15199908-200212

61693CRETAINER, REAR SEATBACK SET, RH

main61693-52010iNCP15;NCP10,SCP10..B,F,RS199901-200112

sub61693-52100

main61693-52100iSCP13..U;NCP1#,SCP10..CLA,F,RS,U200112-200212

61694CRETAINER, REAR SEATBACK SET, LH

main61694-52010iNCP15;NCP10,SCP10..B,F,RS199901-200112

main61694-52100iSCP13..U;NCP1#,SCP10..CLA,F,RS,U200112-200212

61711PANEL, ROOF SIDE, OUTER RH

main61711-52010iNCP1#,SCP10..5D199901-200212

sub61711-52011

main61711-52011iNCP1#,SCP1#..5D200212

main61711-52020iNCP1#,SCP10..3D199901-200212

61712PANEL, ROOF SIDE, OUTER LH

main61712-52010iNCP1#,SCP10..5D199901-200301

sub61712-52011

main61712-52011iNCP1#,SCP1#..5D200301

main61712-52020iNCP1#,SCP10..3D199901-200212

61731BPANEL, ROOF SIDE, INNER RH

main61731-52010iNCP1#,SCP10..5D199901-200208

sub61731-52011

main61731-52011iNCP1#,SCP1#..5D200208-200212

main61731-52020iNCP1#,SCP10..3D199901-200208

sub61731-52021

main61731-52021iNCP1#,SCP10..3D200208-200212

61732BPANEL, ROOF SIDE, INNER LH

main61732-52010iNCP1#,SCP10..5D199901-200208

sub61732-52011

main61732-52011iNCP1#,SCP1#..5D200208-200212

main61732-52020iNCP1#,SCP10..3D199901-200208

sub61732-52021

main61732-52021iNCP1#,SCP10..3D200208-200212

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-52010iNCP1#,SCP10199901-200212

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-52010iNCP1#,SCP10199901-200212

61753ARETAINER, QUARTER TRIM, LOWER

main61753-10050iNCP1#,SCP10..3D200112-200212

61754BRETAINER, QUARTER TRIM, LOWER LH

main61754-10040iNCP1#,SCP10..3D200112-200212

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-52010iNCP1#,SCP10199901-200212

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-52010iNCP1#,SCP10199901-200212

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-52010iNCP10,13,SCP1#199901-200212

main61768-52020iNCP15199908-200212

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-52010iNCP10,13,SCP10199901-200212

main61769-52020iNCP15199908-200212

9095001784

main90950-01784

9095001866

main90950-01866

56 parts on this diagram · 7 diagrams in section
