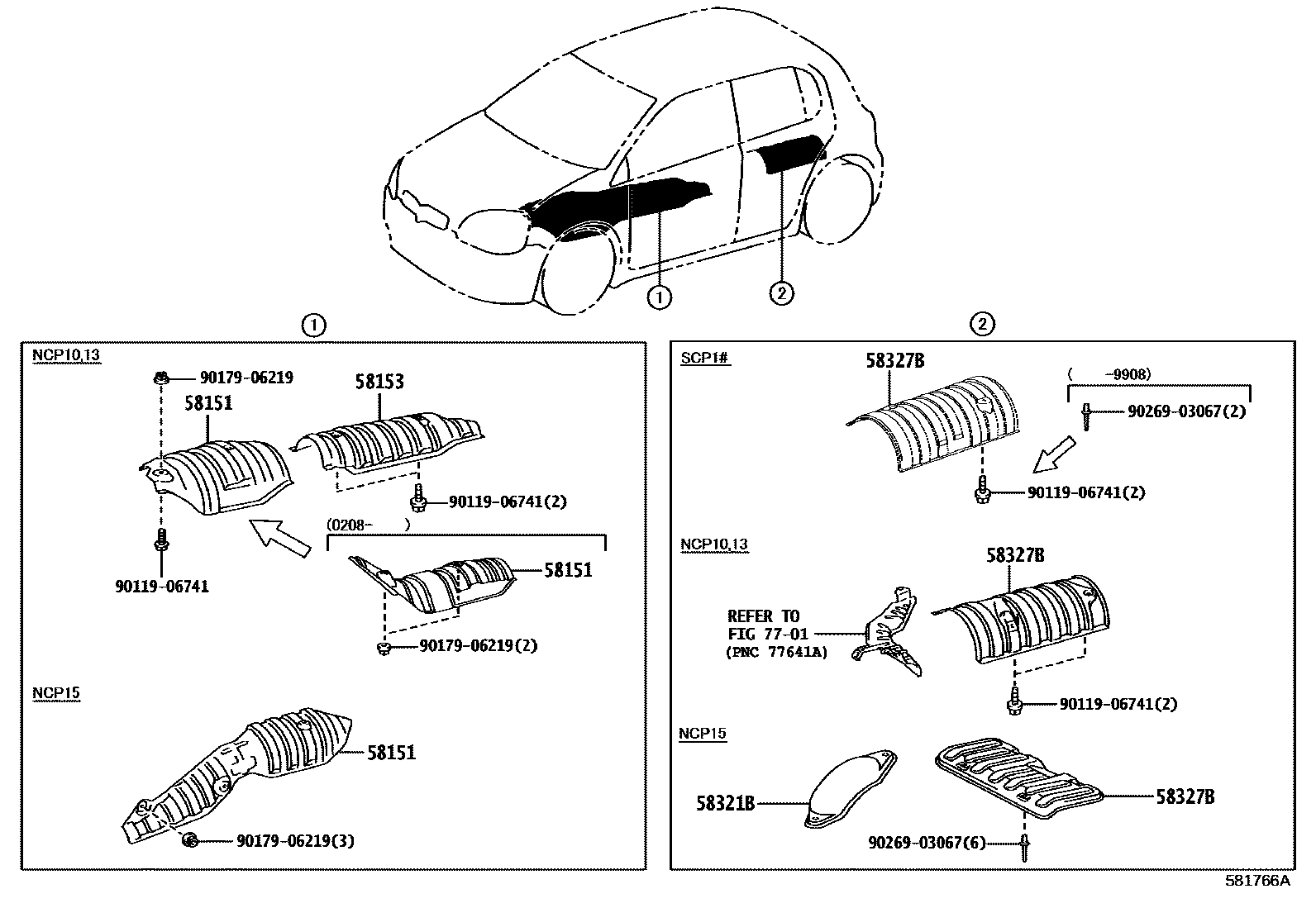

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52010iNCP10,13199909-200208

main58151-52020iNCP15199908-200212

sub58151-52021

main58151-52030iNCP10,13200208-200212

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52011iNCP10,13199909-200212

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10031iNCP15199908-200212

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52010iSCP10199901-199906

sub58327-52011

main58327-52011iSCP10199906-199908

sub58327-52060

main58327-52020iNCP15199908-200212

main58327-52050iNCP10,13,SCP10199908-200212

7701

9011906741

main90119-06741

9017906219

main90179-06219

9026903067

main90269-03067

8 parts on this diagram · 1 diagram in section
