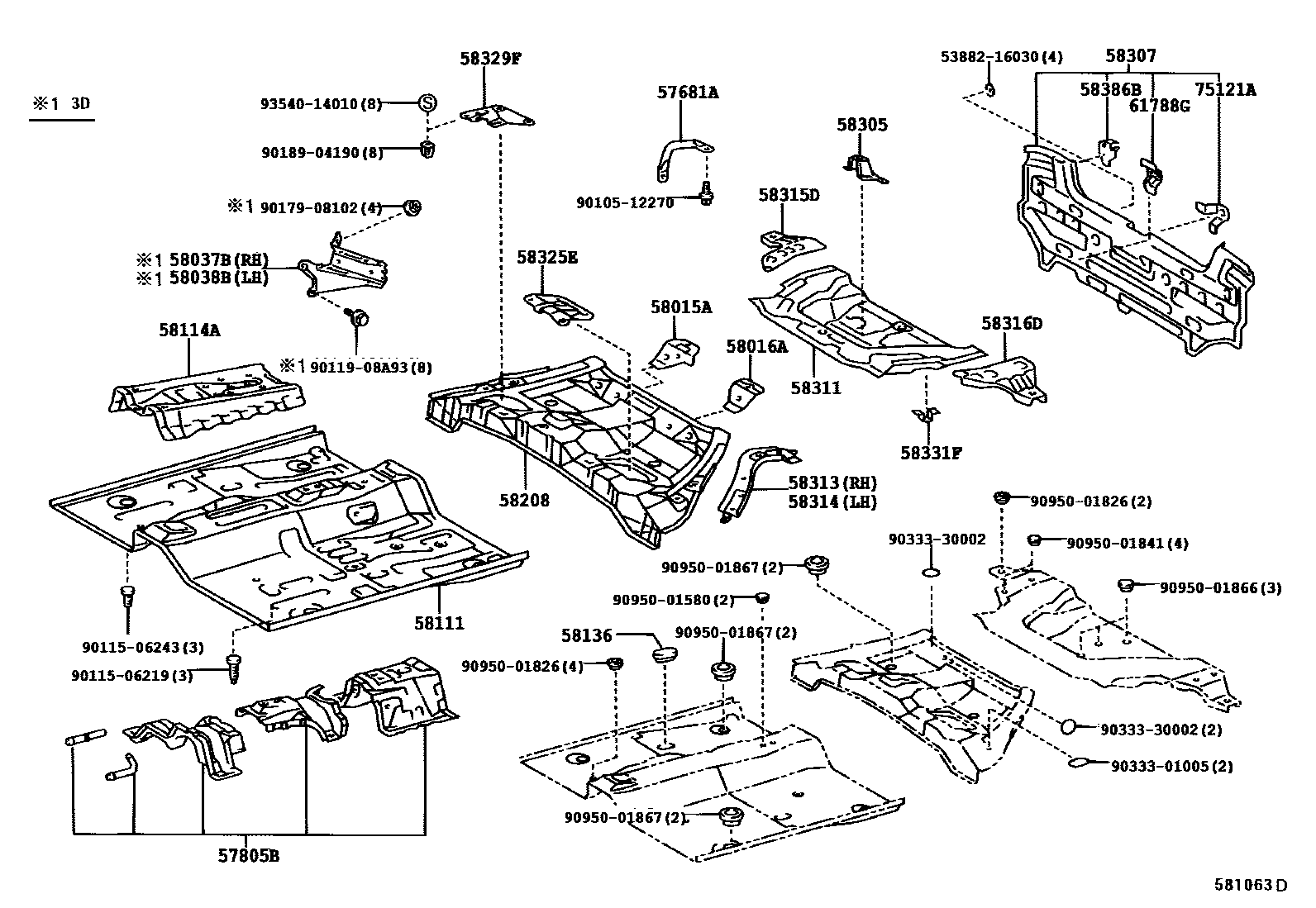

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER

main57681-52010iNCP15199908-200212

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52010iSCP10199901-200008

sub57805-52011

main57805-52011iSCP10200008-200212

main57805-52021iNCP10199909-200008

sub57805-52022

main57805-52022iNCP10,13200008-200212

main57805-52030iNCP15199908-200212

main57805-52110iSCP1#200212

main57805-52120iNCP10,13200212

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-10040iNCP15199908-200012

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58274-10010iNCP15199908-200012

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main57671-52020iNCP15..3D199908-200212

main58037-52010iNCP10,13,SCP10..3D199901-200212

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main57672-52020iNCP15..3D199908-200212

main58038-52010iNCP10,13,SCP10..3D199901-200212

58111PAN, FRONT FLOOR

main58111-52900iNCP10,SCP10199901-200005

sub58111-52906

main58111-52901iNCP15199908-200212

main58111-52906iNCP10,13,SCP10200005-200212

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58103-52010iNCP10,13,SCP10200203-200212

main58103-52011iNCP10,13,SCP1#200212

sub58103-52013

main58103-52020iNCP15200203-200212

main58103-52021iNCP15200212

sub58103-52022

main58114-52010iNCP10,13,SCP10199901-200203

sub58114-52011

main58114-52020iNCP15199908-200203

sub58114-52021

58136COVER, FRONT FLOOR HOLE

main58136-52010iNCP1#,SCP10199901-200212

58208PAN, CENTER FLOOR

main58211-10152iNCP15..5D199908-200012

sub58211-52110

sub90333-30002

main58211-10160iNCP15..3D199908-200012

sub58211-10161

sub90333-30002

main58211-10161iNCP15..3D200012-200501

main58211-52010iSCP10..B,U199901-199907

main58211-52011iNCP10,SCP10..B,CLA,U199907-200010

sub58211-52012

sub90333-30002

main58211-52012iSCP10..5D..4FC..F200202-200308

sub58211-52013

sub90333-30008

sub90950-01958

main58211-52012iNCP10,13,SCP10..B,CLA,RS,U200010-200501

sub58211-52013

sub90333-30008

sub90950-01958

main58211-52020iSCP10..B,F199901-199907

main58211-52021iSCP10..B,F199907-200010

sub58211-52022

sub90333-30002

main58211-52022iSCP10..B,F;NCP10..RS,U200010-200501

sub58211-52023

sub90333-25001

sub90950-01958

main58211-52110iNCP15..5D200012-200501

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-32010iNCP10,13,SCP10199901-200102

sub58351-33010

main58351-33010iNCP10,13,SCP10200102-200212

main58351-52010iNCP15199908-200212

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52010iNCP10,SCP10..B,CLA,F,U199901-200212

main58307-52040iNCP15..CLA199908-200212

main58307-52100iNCP10,13..RS200010-200212

main58307-52190iNCP10,SCP10..B,F,U200112-200501

main58307-52200iNCP15..F200112-200501

main58307-52310iNCP10,13200212-200501

main58307-52350iSCP1#..4HC,CVFC200212-200501

main58307-52350iSCP10..5D..(4FC,5F)..F200212

main58307-52360iNCP15..CLA,U200212-200501

58311PAN, REAR FLOOR

main58311-52010iNCP10,SCP10199901-200010

sub58311-52011

sub90333-30002

main58311-52011iNCP10,13,SCP10200010-200202

sub58311-52120

sub67891-26010

main58311-52020iNCP15199908-200012

sub58311-52021

sub90333-30002

main58311-52021iNCP15200012-200501

sub58311-52022

sub90333-25001

sub90950-01960

main58311-52120iNCP10,13,SCP10200202-200212

sub58311-52121

main58311-52121iNCP10,13,SCP1#200212-200501

58313PANEL, REAR FLOOR SIDE, RH

main58313-52010iNCP15199908-200212

58314PANEL, REAR FLOOR SIDE, LH

main58314-10030iNCP15199908-200212

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52010iNCP10,13,SCP10199901-200212

main58315-52020iNCP15199908-200212

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52010iNCP10,13,SCP1#199901-200212

main58316-52020iNCP15199908-200212

58325ECOVER, REAR FLOOR SERVICE HOLE

main58320-52010iNCP15200112-200212

main58325-10040iNCP15199908-200112

main58325-52010iNCP10,13,SCP1#199901-200212

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-10010iNCP15199908-200212

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010iNCP10,13,SCP10199908-200212

main58331-10011iNCP15199901-200212

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52010iNCP10,15,SCP10..B,CLA,F,U199901-200212

main58386-52030iNCP10,13..RS200010-200212

sub58386-52031

main58386-52031iNCP10,13200212

61788GBRACKET, REAR BUMPER SIDE, NO.2 RH

main61788-52010iNCP15199908-200212

75121ABRACKET, REAR LICENSE PLATE

main75121-52010iNCP10,15,SCP10..B,CLA,F,U199901-200212

main75121-52020iNCP10,13..RS200010-200101

sub75121-52021

main75121-52021iNCP10,13..RS200101-200212

main75121-52030iNCP10,15,SCP10..B,F,U200112-200212

main75121-52050iNCP10,13200212

main75122-52020iNCP15,SCP1#200112-200212

5388216030PACKING, FRONT FENDER MAIN

main53882-16030

9010512270

main90105-12270

9011506219

main90115-06219

9011506243

main90115-06243

9011908A93

main90119-08A93

9017908102

main90179-08102

9018904190

main90189-04190

9033301005

main90333-01005

9033330002

main90333-30002

9095001580

main90950-01580

9095001841

main90950-01841

9095001866

main90950-01866

9354014010

main93540-14010

36 parts on this diagram · 5 diagrams in section
