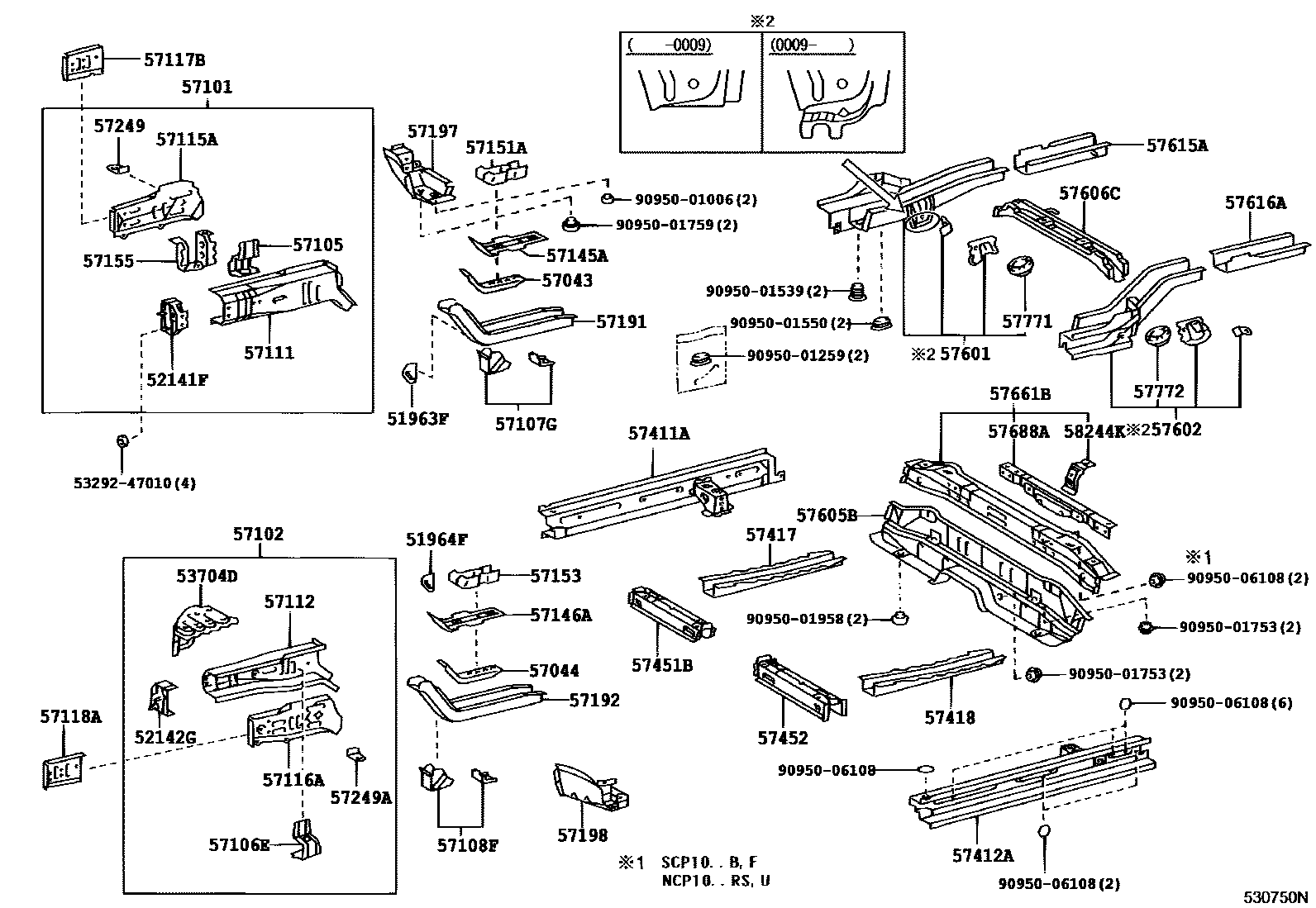

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

51963FHOOK, TRANSPORT

main51963-52010iNCP1#,SCP10199901-200212

main51963-52010iNCP13,SCP13200305

main51963-52020iNCP1#,SCP1#200305

MARK = VR

51964FHOOK, TRANSPORT, LH

main51963-52010iNCP1#,SCP10199901-200305

main51963-52010iNCP1#,SCP1#200305

main51964-52020iNCP1#,SCP1#200305

MARK = VL

52141FARM, FRONT BUMPER, RH

main52141-52010iNCP1#,SCP10199901-200112

main52141-52070iNCP1#,SCP10200112-200212

52142GARM, FRONT BUMPER, LH

main52142-52010iNCP1#,SCP10199901-200212

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-52010iNCP1#,SCP10199901-200212

main53704-52040iSCP13200212

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57044-52010iNCP1#,SCP10199912-200212

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52010iNCP1#,SCP10199912-200212

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-52901iNCP1#,SCP10199901-200005

sub57101-52904

main57101-52904iNCP1#,SCP10200005-200112

sub57101-52908

main57101-52908iNCP1#,SCP1#200112-200412

sub57101-52917

main57101-52917iNCP1#,SCP1#200412-200501

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-52902iSCP10199901-200212

main57102-52902iNCP1#199908-200112

main57102-52903iSCP10..B199901-200101

sub57102-52902

main57102-52913iSCP13200212

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-52010iNCP1#,SCP1#199901-200212

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57105-52010iNCP1#,SCP10199901-200212

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52010iNCP1#,SCP10199901-200212

sub57107-52020

main57107-52020iNCP10,15,SCP10200208-200212

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52010iNCP1#,SCP10199901-200208

sub57108-52020

main57108-52020iNCP1#,SCP10200208-200212

57111MEMBER, FRONT SIDE, RH

main57111-52010iNCP1#,SCP10199901-200212

57112MEMBER, FRONT SIDE, LH

main57112-52010iSCP10..4FC,5F199901-200212

main57112-52010iNCP1#199908-200112

main57112-52020iSCP10..B199901-200101

sub57112-52010

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-52010iNCP1#,SCP10199901-200212

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-52010iNCP1#,SCP10199901-200212

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-52010iNCP1#,SCP10199901-200107

sub57117-52020

main57117-52020iNCP1#,SCP10200107-200212

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-52010iNCP1#,SCP10199901-200212

57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57145-52010iNCP15,SCP10199901-199909

sub57145-52011

main57145-52011iNCP1#,SCP10199909-200212

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57145-52010iNCP15,SCP10199901-199909

sub57145-52011

main57145-52011iNCP1#,SCP10199909-200212

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-52010iNCP1#,SCP10199901-200212

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-52010iNCP1#,SCP10199909-200212

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-52010iNCP1#,SCP10199901-200008

sub57155-52011

main57155-52011iNCP1#,SCP10200008-200412

sub57155-52012

main57155-52012iNCP1#,SCP1#200412

57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH

main57191-52900iNCP1#,SCP1#199901-200204

57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH

main57192-52010iNCP15,SCP10199901-199909

sub57192-52011

sub57153-52010

main57192-52011iNCP1#,SCP10199909-200212

57197BOX, TORQUE, FRONT RH

main57077-52020iNCP1#,SCP10199901-200212

57198BOX, TORQUE, FRONT LH

main57078-52020iNCP1#,SCP10199901-200212

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iNCP1#,SCP10199901-200212

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iNCP1#,SCP10199901-200212

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-52011iNCP1#,SCP1#..5D200212-200501

sub57401-52021

main57401-52020iNCP1#,SCP10199901-200212

main57401-52021iNCP1#,SCP10..3D200212-200501

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-52011iNCP1#,SCP1#..5D200212-200501

sub57402-52021

main57402-52020iNCP1#,SCP10199901-200212

main57402-52021iNCP1#,SCP10..3D200212-200501

main57402-52130iSCP13..U200212-200501

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-52010iSCP10199901-199909

sub57417-52011

main57417-52011iNCP10,13,SCP1#199909-200212

main57417-52020iNCP15199908-199909

sub57417-52021

main57417-52021iNCP15199909-200212

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-52010iSCP10199901-199909

sub57417-52011

main57417-52011iNCP10,13,SCP10199909-200212

main57417-52020iNCP15199908-199909

sub57417-52021

main57417-52021iNCP15199909-200212

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-52010iNCP10,SCP10199901-200005

sub57451-52011

main57451-52011iNCP10,13,SCP10200005-200212

main57451-52020iNCP15199908-200005

sub57451-52021

main57451-52021iNCP15200005-200212

main57451-52070iSCP13200212-200501

main57451-52901iNCP15200212-200501

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-52010iNCP10,SCP10199901-200005

sub57452-52012

main57452-52011iNCP10,13,SCP10200005-200106

sub57452-52012

main57452-52012iNCP10,13,SCP10200106-200212

main57452-52030iNCP15199908-200212

main57452-52081iNCP10,13,SCP1#200212

main57452-52901iNCP15200212

sub57452-52090

sub57476-52010

sub58142-52010

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52900iNCP10,SCP10199901-200009

main57601-52901iNCP15199908-200212

sub57601-52923

main57601-52907iSCP10..B,F;NCP10..RS,U200010-200212

sub57601-52922

main57601-52909iSCP10..5D..4FC..F200202-200212

main57601-52909iNCP10,SCP10200009-200212

main57601-52922iNCP10,13,SCP1#..F,RS,U200212

main57601-52923iNCP15200212

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52900iNCP10,SCP10199901-200001

sub57602-52906

main57602-52901iNCP15199908-200212

sub57602-52924

main57602-52906iNCP10,SCP10200001-200009

main57602-52908iNCP10,SCP10..B,F,RS200010-200112

sub57602-52923

main57602-52910iNCP10,13,SCP10..B,CLA,RS,U200009-200501

main57602-52910iSCP10..5D..4FC..F200202-200212

main57602-52923iSCP10..B,F;NCP10..RS,U200112-200501

main57602-52924iNCP15200212-200501

sub57602-52927

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52010iNCP10,13,SCP10199901-200212

main57605-52040iNCP15199908-200212

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52010iSCP10..5D..4FC..F200202-200212

main57606-52010iNCP10,13,SCP10..B,CLA,RS,U199901-200212

main57606-52020iNCP15199908-200212

main57606-52030iSCP10..B,F199901-200010

main57606-52070iSCP10..B,F;NCP10..RS,U200010-200212

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-52901iNCP15..5D199908-200212

main57801-52010iNCP10,13,SCP10199901-200212

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-52900iSCP10199901-199902

sub57802-52010

main57616-52901iNCP15199908-200212

main57802-52010iNCP10,13,SCP10199902-200212

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-52010iNCP10,SCP10..5D..(B,F,RS)199901-200212

main58202-52010iSCP10..5D..4FC..F200202-200308

main58202-52010iNCP10,13,SCP10..5D..(B,CLA,RS,U)199901-200212

main58202-52020iNCP10,13,SCP10..3D..(B,CLA,RS,U)199901-200212

main58202-52030iSCP10..3D..(B,F);NCP10..3D..(RS,U)199901-200212

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-52010iNCP10,13,SCP10199901-200212

main57688-52030iNCP15..3D199908-200212

57771PLATE, REAR SPRING, RH

main51301-52010iNCP10,SCP10199901-200010

main51301-52020iNCP10,13,SCP10200010-200212

57772PLATE, REAR SPRING, LH

main51302-52010iNCP10,SCP10199901-200010

main51302-52020iNCP10,13,SCP10200010-200212

58244KBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-52010iSCP10..5D..4FC..F200202-200308

main58244-52010iNCP10,13,SCP10..5D..(B,CLA,RS,U)199901-200212

main58244-52020iNCP10,13,SCP10..3D..(B,CLA,RS,U)199901-200212

5329247010SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-47010

9095001006

main90950-01006

9095001259

main90950-01259

9095001539

main90950-01539

9095001550

main90950-01550

9095001753

main90950-01753

9095001759

main90950-01759

9095001958

main90950-01958

9095006108

main90950-06108

56 parts on this diagram · 3 diagrams in section
