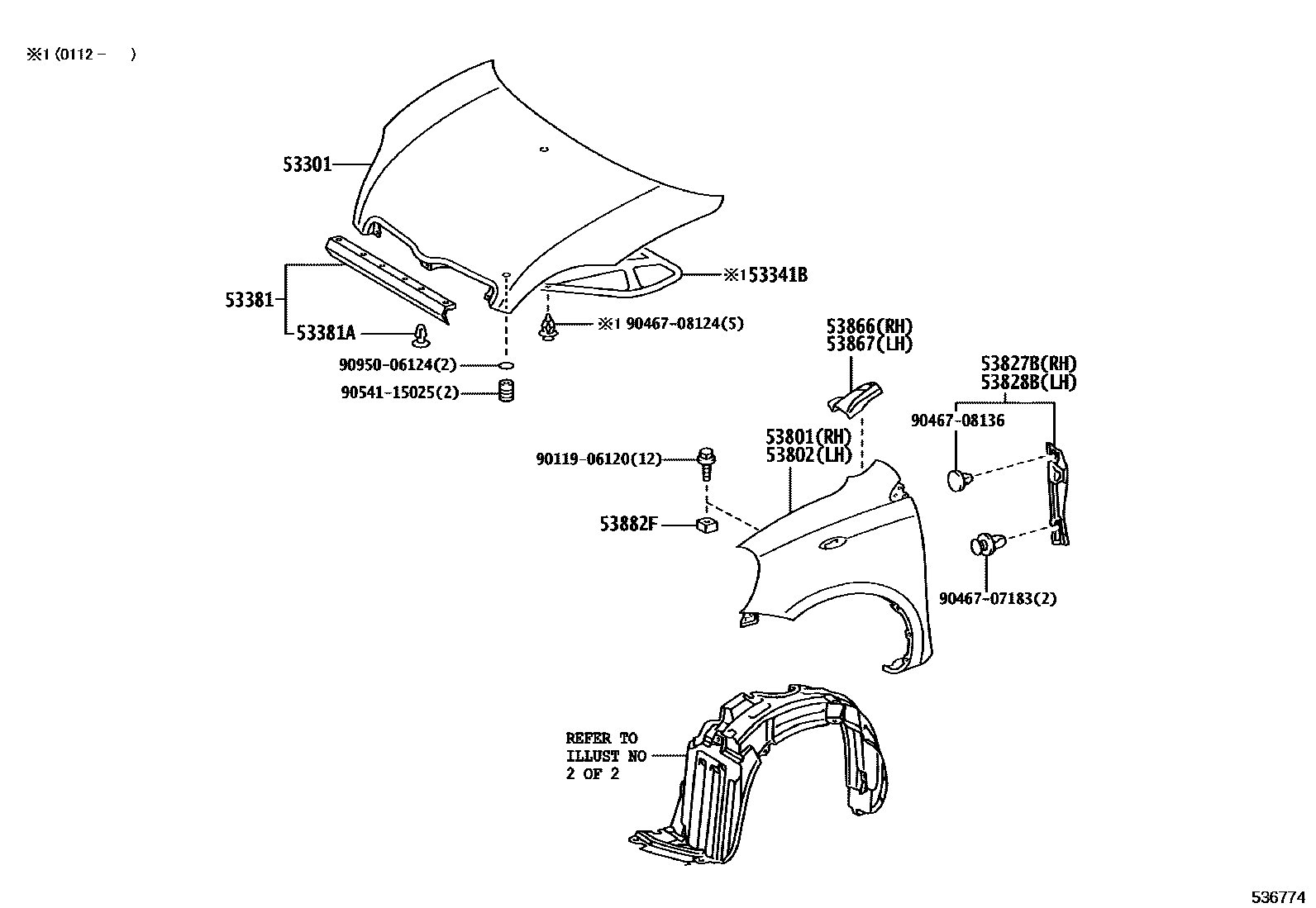

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52010iNCP1#,SCP10..B,F,RS,U199901-200501

main53301-52080iNCP10,15..CLA199909-200212

main53301-52210iNCP15,SCP13..CLA200212-200501

53341BINSULATOR, HOOD

main53341-52011iNCP10,15,SCP10..CLA,F,U200112-200212

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP1#,SCP10199901-200212

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP1#,SCP10199901-200212

53801FENDER SUB-ASSY, FRONT RH

main53811-52010iNCP1#,SCP10199901-200501

53802FENDER SUB-ASSY, FRONT LH

main53812-52010iNCP1#,SCP10199901-200501

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-52010iSCP10199901-199908

sub53827-52040

main53827-52040iNCP1#,SCP10199908-200105

sub53827-52041

main53827-52041iNCP1#,SCP1#200105-200212

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52010iSCP10199901-199908

sub53828-52040

main53828-52040iNCP1#,SCP10199908-200105

sub53828-52041

main53828-52041iNCP1#,SCP10200105-200212

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52010iNCP1#,SCP10199901-200212

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52010iNCP1#,SCP10199901-200212

53882FSEAL, FRONT FENDER

main53882-16030iNCP1#,SCP10199901-200212

9011906120

main90119-06120

9046707183

main90467-07183

9046708124

main90467-08124

9046708136

main90467-08136

9054115025

main90541-15025

9095006124

main90950-06124

17 parts on this diagram · 2 diagrams in section
