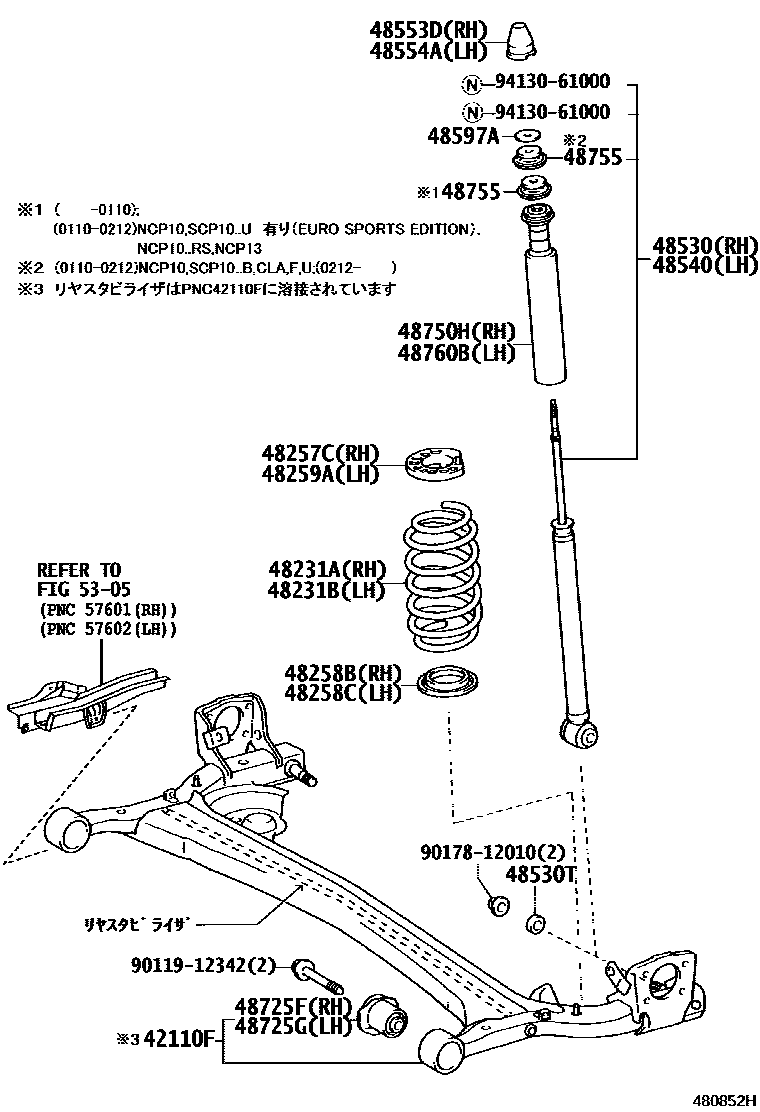

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-52010iNCP10,SCP10199901-200010

main42110-52040iSCP10..U199901-199903

main42110-52041iNCP10,SCP10..U199903-199912

sub42110-52042

main42110-52042iNCP10,SCP10..U199912-200010

main42110-52120iNCP10,SCP10..B,CLA,F,U200010-200501

main42110-52130iNCP10,SCP10..U200010-200112

main42110-52180iNCP10,13..RS200010-200501

48231ASPRING, COIL, REAR RH

main48231-52020iSCP10..B,F199901-200212

main48231-52110iNCP15199908-200212

main48231-52120iNCP10,SCP10..CLA,RS,U199901-200212

main48231-52390iNCP13200010-200212

main48231-52690iNCP10,SCP1#200212

48231BSPRING, COIL, REAR LH

main48231-52020iSCP10..B,F199901-200212

main48231-52110iNCP15199908-200212

main48231-52120iNCP10,SCP10..CLA,RS,U199901-200212

main48231-52390iNCP13200010-200212

main48231-52690iNCP10,SCP1#200212

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNCP10,13,SCP10199901-200212

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52010iNCP10,13,SCP10199901-200212

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52010iNCP10,13,SCP10199901-200212

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNCP10,13,SCP10199901-200212

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-59145iNCP10,SCP10199901-200001

main48530-59146iNCP10,SCP10..B,CLA,F,U200001-200110

sub48530-59147

main48530-59148iNCP10,SCP10..B,CLA,F,U200110-200208

main48530-59155iSCP10..U199901-199903

sub48530-59156

main48530-59156iNCP10,SCP10..U199903-200001

main48530-59157iNCP10,SCP10..RS,U200001-200212

main48530-59185iNCP15199908-200001

sub48530-59395

main48530-59395iNCP15200001-200501

sub48530-59187

main48530-59435iNCP13200010-200212

sub48530-59755

main48530-59705iNCP10,SCP10..B,CLA,F,U200208-200212

main48530-59735iSCP10200212-200501

main48530-59745iNCP10200212-200501

main48530-59755iNCP13200212-200501

main48530-59775iSCP13200212-200501

48530TSPACER(FOR REAR SHOCK ABSORBER)

main90560-12065iNCP10,13,SCP10199901-200212

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-59145iNCP10,SCP10199901-200001

main48530-59146iNCP10,SCP10..B,CLA,F,U200001-200110

sub48530-59147

main48530-59148iNCP10,SCP10..B,CLA,F,U200110-200208

main48530-59155iSCP10..U199901-199903

sub48530-59156

main48530-59156iNCP10,SCP10..U199903-200001

main48530-59157iNCP10,SCP10..RS,U200001-200212

main48530-59185iNCP15199908-200001

sub48530-59395

main48530-59395iNCP15200001-200501

sub48530-59187

main48530-59435iNCP13200010-200212

sub48530-59755

main48530-59705iNCP10,SCP10..B,CLA,F,U200208-200212

main48530-59735iSCP10200212-200501

main48530-59745iNCP10200212-200501

main48530-59755iNCP13200212-200501

main48530-59775iSCP13200212-200501

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-52010iNCP13200010-200501

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-52010iNCP13200010-200501

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iNCP10,13,SCP10199901-200212

48725FBUSH, REAR AXLE CARRIER, RH

main48725-52010iNCP10,SCP10..B,CLA,F,U199901-200212

main48725-52011iSCP1#200212

main48725-52020iNCP10,13..RS200010-200212

main48725-52020iNCP10,SCP10..U199901-200112

main48725-52021iNCP10,13200212

48725GBUSH, REAR AXLE CARRIER, LH

main48725-52010iNCP10,SCP10..B,CLA,F,U199901-200212

main48725-52011iSCP1#200212

main48725-52020iNCP10,SCP10..U199901-200112

main48725-52020iNCP10,13..RS200010-200212

main48725-52021iNCP10,13200212

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52010iNCP10,13,SCP10199901-200212

main48750-52030iNCP15199908-200001

sub48750-52050

main48750-52050iNCP15200001-200212

main48750-52090iNCP10,13,SCP1#200212

48755SUPPORT, REAR SUSPENSION

main48755-52010iNCP10,13,SCP10199901-200212

main48755-52070iNCP10,13,SCP1#200212

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52010iNCP10,13,SCP10199901-200212

main48750-52030iNCP15199908-200001

sub48750-52050

main48750-52050iNCP15200001-200212

main48750-52090iNCP10,13,SCP1#200212

5305

9011912342

main90119-12342

9017812010

main90178-12010

9413061000

main94130-61000

22 parts on this diagram · 2 diagrams in section
