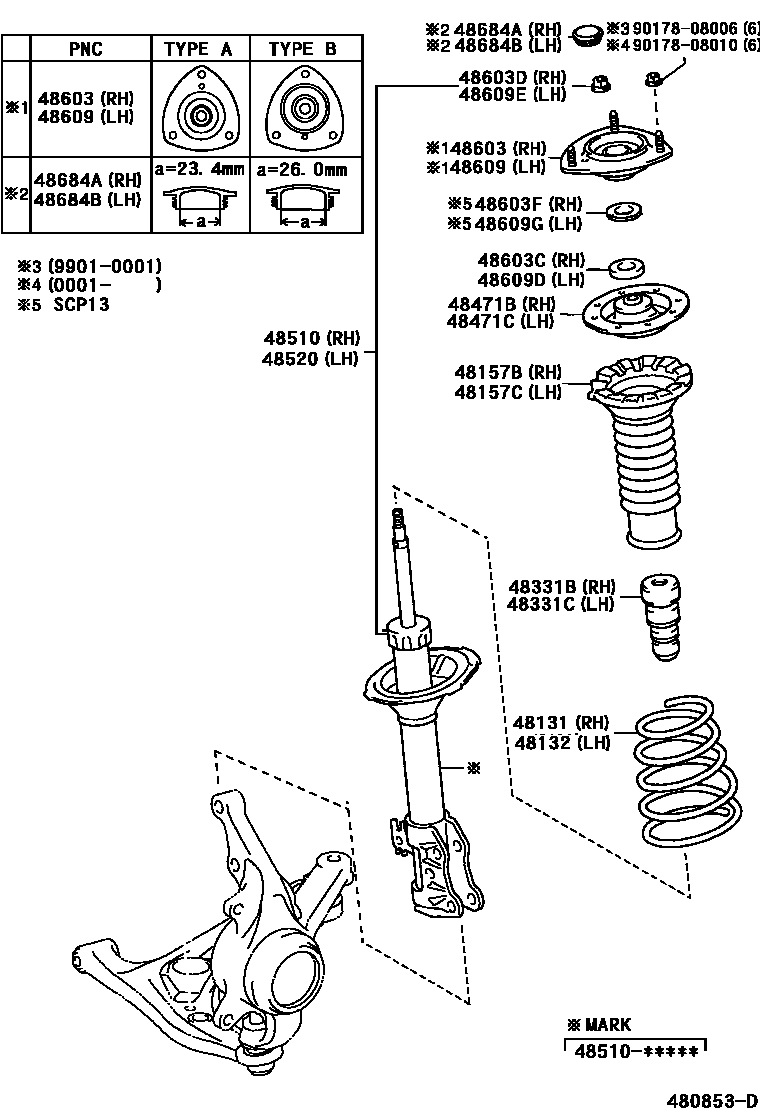

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1�������� �������,��(��������)

48131SPRING, FRONT COIL, RH

main48131-52010iSCP10..B;SCP10..5F..(F,U)199901-200212

main48131-52020iNCP10..CLA,U;SCP10..4FC..(F,U)199901-200212

main48131-52030iSCP10..5F..U199901-200112

main48131-52050iNCP15199908-200212

main48131-52070iNCP10..RS200010-200212

main48131-52070iNCP10..U;SCP10..4FC..U199901-200112

main48131-52340iNCP13200010-200212

main48131-52580iSCP10..5F200212-200501

main48131-52590iSCP10..ATM200212-200501

main48131-52600iNCP10200212-200501

main48131-52610iNCP13200212-200501

main48131-52620iNCP15,SCP13200212-200501

48132SPRING, FRONT COIL, LH

main48131-52010iSCP10..B;SCP10..5F..(F,U)199901-200212

main48131-52020iNCP10..CLA,U;SCP10..4FC..(F,U)199901-200212

main48131-52030iSCP10..5F..U199901-200112

main48131-52050iNCP15199908-200212

main48131-52070iNCP10..RS200010-200212

main48131-52070iNCP10..U;SCP10..4FC..U199901-200112

main48131-52340iNCP13200010-200212

main48131-52580iSCP10..5F200212-200501

main48131-52590iSCP10..ATM200212-200501

main48131-52600iNCP10200212-200501

main48131-52610iNCP13200212-200501

main48131-52620iNCP15,SCP13200212-200501

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52010iNCP1#,SCP10199901-200212

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52010iNCP1#,SCP10199901-200212

48331BBUMPER, FRONT SPRING, RH

main48331-52010iNCP10,15199908-200212

main48331-52010iNCP10,SCP10..U199901-200112

main48331-52020iNCP10,SCP10..B,CLA,F,U199901-200212

main48331-52050iNCP13200010-200212

48331CBUMPER, FRONT SPRING, LH

main48331-52010iNCP10,SCP10..U199901-200112

main48331-52010iNCP10,15199908-200212

main48331-52020iSCP1#199901-200212

main48331-52050iNCP13200010-200212

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-52010iNCP1#,SCP10199901-200212

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-52010iNCP1#,SCP10199901-200212

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-59125iNCP10,SCP10199901-200001

main48510-59126iNCP10,SCP10200001-200006

sub48510-59127

main48510-59127iNCP10,SCP10..B,CLA,F,U200006-200205

sub48510-59128

main48510-59128iNCP10,SCP10..B,CLA,F,U200205-200208

main48510-59129iNCP10,SCP10..B,CLA,F,U200208-200212

sub48510-59685

main48510-59135iNCP15199908-200001

main48510-59145iSCP10..U199901-199903

sub48510-59146

main48510-59146iNCP10,SCP10..U199903-200001

sub48510-59149

main48510-59147iNCP10,SCP10..U200001-200006

sub48510-59148

main48510-59148iNCP10,SCP10..RS,U200006-200205

sub48510-59149

main48510-59149iNCP10..RS200205-200212

sub48510-59456

main48510-59335iNCP15200001-200006

sub48510-59336

main48510-59336iNCP15200006-200205

sub48510-59337

main48510-59337iNCP15200205-200501

sub48510-59138

main48510-59385iNCP13200010-200205

sub48510-59386

main48510-59386iNCP13200205-200212

main48510-59685iSCP10200212-200501

main48510-59695iNCP10200212-200501

main48510-59705iNCP13200212-200501

main48510-59755iSCP13200212-200501

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-59125iNCP10,SCP10199901-200001

main48510-59126iNCP10,SCP10200001-200006

sub48510-59127

main48510-59127iNCP10,SCP10..B,CLA,F,U200006-200205

sub48510-59128

main48510-59128iNCP10,SCP10..B,CLA,F,U200205-200208

main48510-59129iNCP10,SCP10..B,CLA,F,U200208-200212

sub48510-59685

main48510-59135iNCP15199908-200001

main48510-59145iSCP10..U199901-199903

sub48510-59146

main48510-59146iNCP10,SCP10..U199903-200001

sub48510-59149

main48510-59147iNCP10,SCP10..U200001-200006

sub48510-59148

main48510-59148iNCP10,SCP10..RS,U200006-200205

sub48510-59149

main48510-59149iNCP10..RS200205-200212

sub48510-59456

main48510-59335iNCP15200001-200006

sub48510-59336

main48510-59336iNCP15200006-200205

sub48510-59337

main48510-59337iNCP15200205-200501

sub48510-59138

main48510-59385iNCP13200010-200205

sub48510-59386

main48510-59386iNCP13200205-200212

main48510-59685iSCP10200212-200501

main48510-59695iNCP10200212-200501

main48510-59705iNCP13200212-200501

main48510-59755iSCP13200212-200501

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52010iNCP10,SCP10199901-199912

sub48609-52011

main48609-52011iNCP10,SCP10..B,CLA,F,U200001-200212

main48609-52012iSCP1#200212

main48609-52020iSCP10..B199901-199912

sub48609-52021

main48609-52021iSCP10..B200001-200212

main48609-52030iNCP10,SCP10..U199901-199912

sub48609-52031

main48609-52031iNCP10200010-200212

main48609-52031iNCP10,SCP10..U200001-200112

main48609-52040iNCP15199908-199912

sub48609-52041

main48609-52041iNCP15200001-200212

main48609-52050iNCP13200010-200212

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNCP1#,SCP10200008-200212

main90303-22049iNCP1#,SCP10199901-200008

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iNCP1#,SCP1#199901-200212

48603FSPACER(FOR FRONT SUSPENSION SUPPORT RH)

main90560-25016iSCP13200212

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52010iNCP10,SCP10199901-199912

sub48609-52011

main48609-52011iNCP10,SCP10..B,CLA,F,U200001-200212

main48609-52012iSCP1#200212

main48609-52020iSCP10..B199901-199912

sub48609-52021

main48609-52021iSCP10..B200001-200212

main48609-52030iNCP10,SCP10..U199901-199912

sub48609-52031

main48609-52031iNCP10..RS200010-200212

main48609-52031iNCP10,SCP10..U200001-200112

main48609-52040iNCP15199908-199912

sub48609-52041

main48609-52041iNCP15200001-200212

main48609-52050iNCP13200010-200212

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iNCP1#,SCP10200008-200212

main90303-22049iNCP1#,SCP10199901-200008

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iNCP1#,SCP10199901-200212

48609GSPACER(FOR FRONT SUSPENSION SUPPORT LH)

main90560-25016iSCP13200212

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-10010iNCP10,15,SCP10..B,CLA,F,U199901-200212

main48684-12070iNCP10,SCP10..U199901-200003

main48684-12070iSCP10..B199901-200003

main48684-52010iSCP10..B200003-200212

main48684-52010iSCP10..B200003-200112

main48684-52010iNCP10,13200010-200112

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-10010iNCP10,15,SCP10..B,CLA,F,U199901-200212

main48684-12070iSCP10..B199901-200003

main48684-12070iNCP10,SCP10..U199901-200003

main48684-52010iNCP10,SCP10..U200003-200212

main48684-52010iSCP10..B200003-200112

main48684-52010iNCP10,13..RS200010-200112

9017808006

main90178-08006

9017808010

main90178-08010

22 parts on this diagram · 2 diagrams in section
