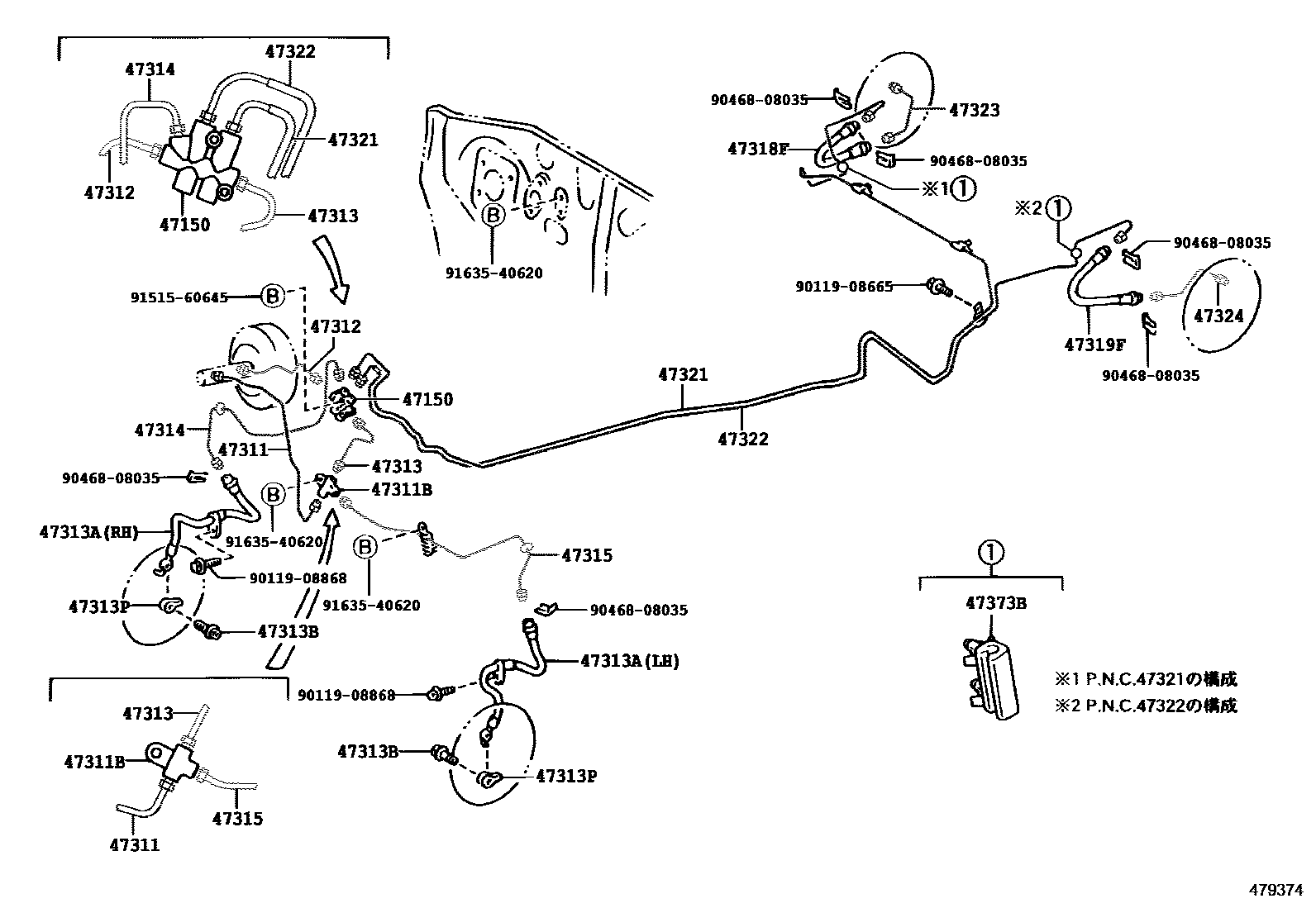

BRAKE TUBE & CLAMP

0001 1��(ABS) 0002 1��(ABS) 0003 1 0004 1 0005 1��(ABS) 0006 1��(ABS) 0007 1 0008 1���� 0009 1��(VSC) 0010 1��(ABS) 0011 1��(VSC) 0012 1��������� ����-�� *(I) 0013 1

47150VALVE ASSY, PROPORTIONING

main47150-12250iSCP10..B199908-200101

main47150-33090iSCP10..B199901-199908

47311TUBE, FRONT BRAKE, NO.1

main47311-52010iSCP10199901-199908

main47311-52011iNCP1#199908-200108

main47311-52011iNCP1#,SCP10200110-200212

main47311-52012iNCP1#,SCP10200108-200110

sub47311-52011

main47311-52040iSCP10..B199901-199908

main47311-52041iSCP10..B199908-200101

sub47311-52042

main47311-52140iNCP13200212

main47311-52180iSCP13..U200212

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10228iSCP10199901-199908

main90412-10235iNCP15..F;SCP10..4HC;NCP10,13,SCP13;NCP15..5D..(CLA,U)199908-200212

main90413-10286iSCP10..B199908-200101

main90413-10786iSCP10..B199901-199908

47312TUBE, FRONT BRAKE, NO.2

main47312-52010iSCP10199901-199908

main47312-52011iSCP10..4FC,5F199908-200212

main47312-52040iSCP10..B199901-199908

main47312-52041iSCP10..B199908-200101

main47312-52120iNCP13200212

main47312-52160iSCP13..U200212

47313TUBE, FRONT BRAKE, NO.3

main47313-52010iSCP10199901-199908

main47313-52011iNCP1#199908-200212

main47313-52020iSCP10..B199901-199908

main47313-52021iSCP10..B199908-200101

main47313-52070iNCP13200212

main47313-52090iSCP13..U200212

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A45iSCP10199901-199908

main90947-02A46iSCP10199901-199908

main90947-02C31iSCP10199909-200308

sub90947-02D76

main90947-02C31iSCP10..4HC;NCP10,13,SCP13199908-200308

sub90947-02D76

main90947-02C32iSCP10..4HC;NCP10,13,SCP13199909-200308

sub90947-02D77

main90947-02C32iSCP10199908-200308

sub90947-02D77

main90947-02C33iNCP15199908-200302

sub90947-02D78

main90947-02C34iNCP15199908-200302

sub90947-02D79

main90947-02D76iNCP10,13,SCP1#200308

main90947-02D77iNCP10,13,SCP1#200308

main90947-02D78iNCP15200302

main90947-02D79iNCP15200302

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNCP1#,SCP10199901-200212

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iNCP1#,SCP10199901-200212

47314TUBE, FRONT BRAKE, NO.4

main47314-52010iSCP10199901-199908

main47314-52011iNCP1#199908-200212

main47314-52020iSCP10..B199901-199908

main47314-52021iSCP10..B199908-200101

sub47314-52022

47315TUBE, FRONT BRAKE, NO.5

main47315-52010iSCP10199901-199908

main47315-52011iNCP1#199908-200212

main47315-52030iSCP10..B199901-199908

main47315-52031iSCP10..B199908-200101

main47315-52070iNCP13200212-200405

main47315-52071iNCP13200405

main47315-52100iSCP13..U200212

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A47iSCP10199901-199908

main90947-02C30iNCP10..CLA,U199908-200212

main90947-02C30iNCP10..CLA,U199909-200112

main90947-02C37iNCP15199908-200302

main90947-02C75iNCP10,13..RS200010-200212

main90947-02D74iNCP15200302

sub90947-02C37

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A47iSCP10199901-199908

main90947-02C30iNCP10..CLA,U199909-200112

main90947-02C30iSCP10199908-200212

main90947-02C38iNCP15199908-200302

main90947-02C76iNCP10,13..RS200010-200212

main90947-02D75iNCP15200302

sub90947-02C38

47321TUBE, REAR BRAKE, NO.1

main47321-52010iSCP10199901-199908

main47321-52011iSCP10199908-200010

main47321-52011iNCP10199909-200010

main47321-52012iNCP10,13,SCP10200010-200501

main47321-52021iNCP15199908-200501

main47321-52200iNCP13200212-200501

main47321-52210iSCP13..U200212-200501

47322TUBE, REAR BRAKE, NO.2

main47322-52010iSCP10199901-199908

main47322-52011iNCP10199909-200010

main47322-52011iSCP10199908-200010

main47322-52012iNCP10,13,SCP10200010-200501

main47322-52021iNCP15199908-200501

main47322-52120iNCP13200212-200501

main47322-52190iSCP13..U200212-200501

47323TUBE, REAR BRAKE, NO.3

main47323-52010iSCP10199901-199908

main47323-52011iSCP10199908-200010

main47323-52011iNCP10199909-200010

main47323-52012iNCP10,SCP10..B,CLA,F,U200010-200204

sub47323-52080

main47323-52031iNCP15199908-200212

main47323-52080iSCP1#200204-200212

47324TUBE, REAR BRAKE, NO.4

main47324-52010iSCP10199901-199908

main47324-52011iSCP10199908-200010

main47324-52011iNCP10199909-200010

main47324-52012iNCP10,SCP10..B,CLA,F,U200010-200204

sub47324-52070

main47324-52031iNCP15199908-200212

main47324-52070iNCP10,SCP10..B,CLA,F,U200204-200212

47373BCLAMP, BRAKE TUBE, NO.3

main47371-52030iNCP10,SCP10199901-200010

9011908665

main90119-08665

9011908868

main90119-08868

9046808035

main90468-08035

9151560645

main91515-60645

9163540620

main91635-40620

22 parts on this diagram · 13 diagrams in section
