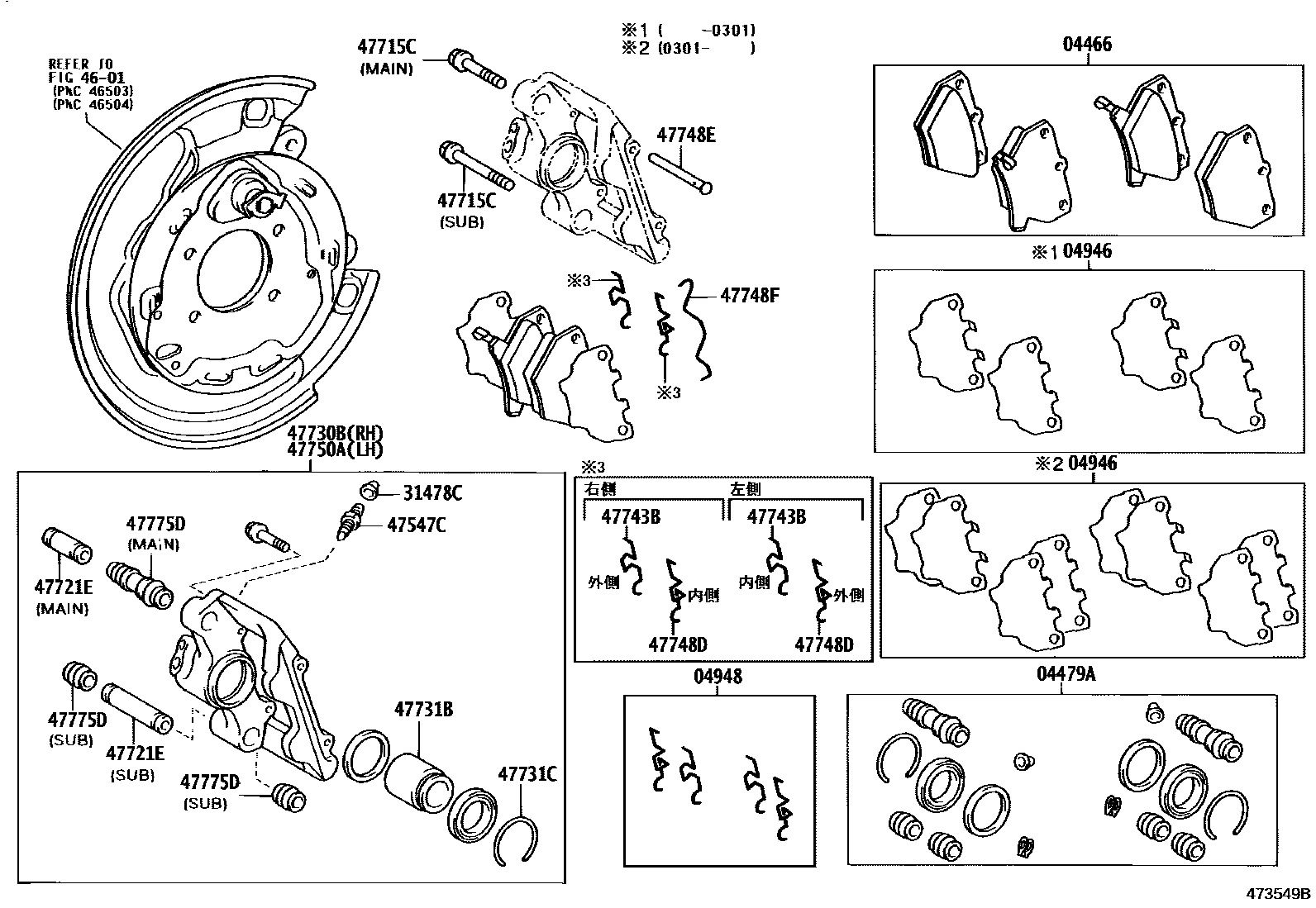

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52020iNCP10,13..RS200112-200212

sub04466-52040

main04466-52030iNCP10,13..RS200010-200106

main04466-52040iNCP10,13200106-200112

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52010iNCP10,13..RS200010-200212

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iNCP10,13..RS200010-200301

main04946-52010iNCP10,13200301

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iNCP10,13..RS200010-200212

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iNCP10,13200010-200212

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iNCP10,13..RS200010-200212

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030iNCP10,13200010-200501

main47715-20040iNCP10,13200010-200501

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053iNCP10,13200010-200212

main90389-10054iNCP10,13200010-200212

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-52040iNCP10,13..RS200010-200301

main47730-52041iNCP10,13200301

47731BPISTON, REAR DISC BRAKE

main47731-52020iNCP10,13..RS200010-200212

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-37001iNCP10,13200010-200212

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030iNCP10,13..RS200010-200212

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040iNCP10,13..RS200010-200212

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021iNCP10,13..RS200010-200212

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025iNCP10,13..RS200010-200212

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-52040iNCP10,13..RS200010-200301

main47750-52041iNCP10,13200301

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020iNCP10,13..RS200010-200212

main47775-42010iNCP10,13..RS200010-200212

18 parts on this diagram · 1 diagram in section
