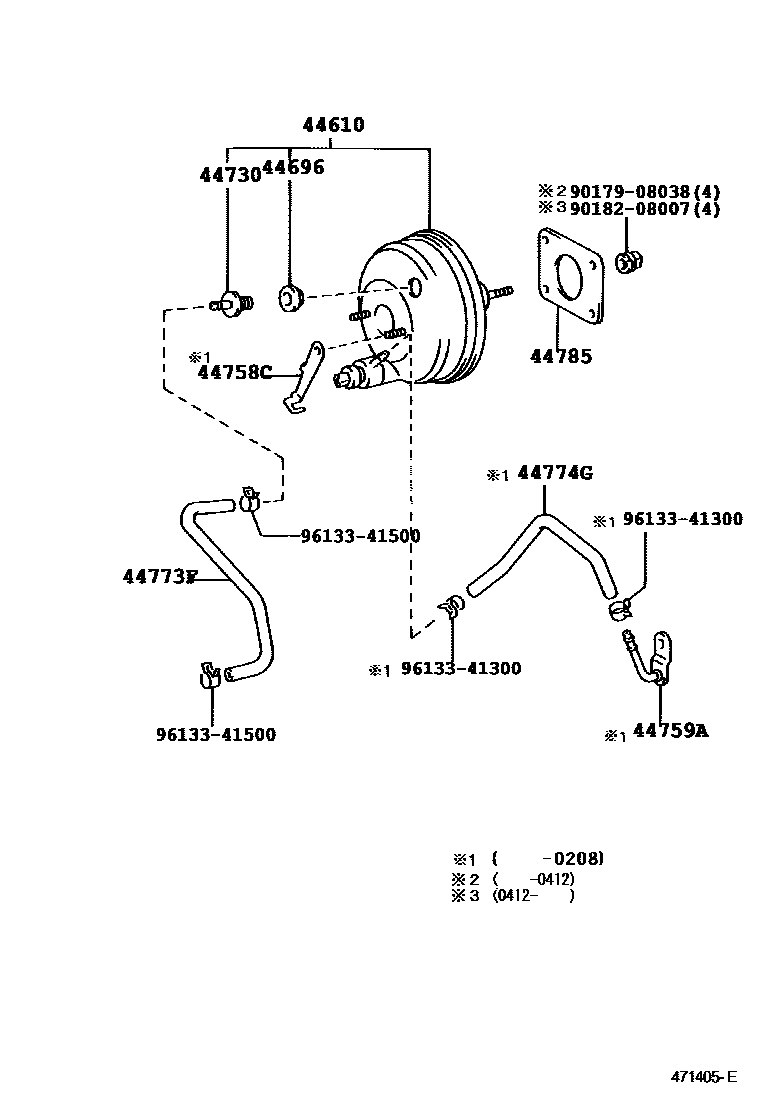

BRAKE BOOSTER & VACUUM TUBE

0001 1��(ABS) 0002 1��(ABS) 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-52010iSCP10199901-200109

sub44610-52011

main44610-52010iNCP1#199908-200109

sub44610-52011

main44610-52011iNCP1#,SCP10200109-200208

main44610-52020iSCP10..B199901-200101

sub44610-52021

main44610-52120iSCP10..5F..B200101-200109

sub44610-52121

main44610-52121iSCP10..5F..B200109-200208

main44610-52240iNCP1#,SCP10200208-200410

sub44610-52241

main44610-52241iNCP1#,SCP1#200411

sub44610-52242

main44610-52260iNCP13200212-200410

sub44610-52261

main44610-52261iNCP13200411

main44610-52270iSCP10..5F..B200208-200212

sub44610-52271

main44610-52300iSCP13..U200212-200410

sub44610-52301

main44610-52301iSCP13..U200411

44696GROMMET, CHECK VALVE

main90480-24439iNCP1#,SCP1#199901-200410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP1#,SCP10199901-200410

44758CBRACKET, SOLENOID VALVE COVER

main44758-52010iNCP1#,SCP10199901-200208

44759AUNION, BRAKE BOOSTER AIR HOSE

main44759-52010iNCP1#,SCP10199901-200208

44773FHOSE, UNION TO CHECK VALVE

main44773-52010iSCP10199901-200212

main44773-52020iNCP1#199908-200212

main44773-52120iSCP13200212

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP1#199908-200212

44774GHOSE, UNION TO SOLENOID

main44774-52010iNCP1#,SCP10199901-200208

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP1#,SCP10199901-200212

9017908038

main90179-08038

9018208007

main90182-08007

9613341300

main96133-41300

9613341500

main96133-41500

13 parts on this diagram · 4 diagrams in section
