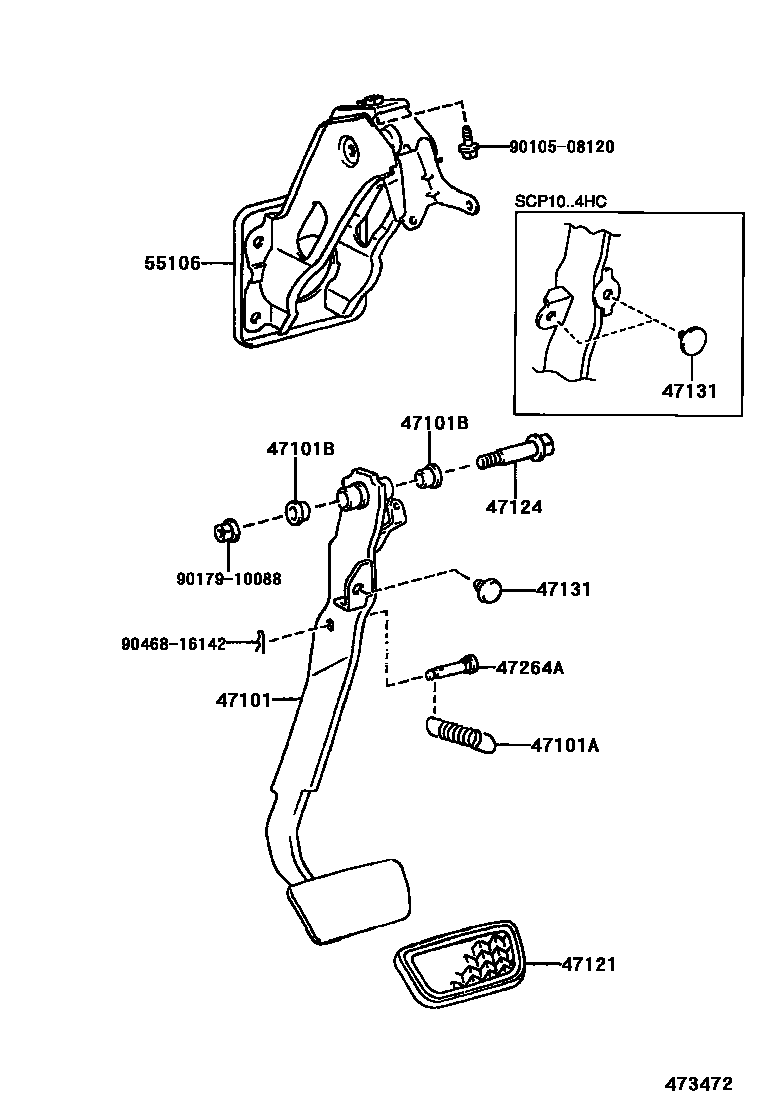

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52010iSCP10..5F..B199901-200101

sub47101-52050

main47101-52020iSCP10..4FC..B199901-200101

sub47101-52060

main47101-52050iSCP10..5F199901-200208

main47101-52050iNCP1#..5F199909-200112

main47101-52060iNCP1#..4FC199901-200208

main47101-52060iNCP1#..4FC199908-200112

main47101-52100iNCP13..5F200212

main47101-52110iNCP13..4FC200212

main47101-52150iNCP1#,SCP10..5F200208-200212

main47101-52160iNCP1#,SCP10..4FC200208-200212

main47101-52170iSCP10..4HC200212

main47101-52200iSCP13..U200212

main47101-52210iSCP13200212

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP1#,SCP10199901-200212

main90506-16072iSCP10..4HC200212

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP1#,SCP10199901-200212

47121PAD, BRAKE PEDAL

main31321-52010iNCP1#,SCP10..5F199901-200212

main47121-52010iNCP1#,SCP10..4FC199901-200212

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP1#,SCP1#199901-200212

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP1#,SCP1#..4FC,5F,CVFC199901-200212

main90541-06049iSCP10..4HC200212

47264APIN(FOR PUSH ROD)

main90249-08051iSCP10199901-199908

main90249-08297iNCP1#,SCP10..4FC,5F199908-200212

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52010iSCP10..B199901-199908

sub55106-52011

main55106-52011iSCP10..B199908-200001

sub55106-52012

main55106-52012iNCP1#;SCP10..4FC;SCP10..5F..(F,U)200208-200212

main55106-52012iSCP10..5F..B200204-200212

main55106-52012iSCP10..B200001-200101

main55106-52030iSCP10199901-199908

sub55106-52031

main55106-52031iNCP1#,SCP10199908-200001

sub55106-52032

main55106-52032iNCP1#,SCP10200001-200112

main55106-52090iNCP1#,SCP10..4FC,5F200212-200501

main55106-52140iSCP10..4HC200212-200501

main55106-52150iSCP13200212-200501

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
