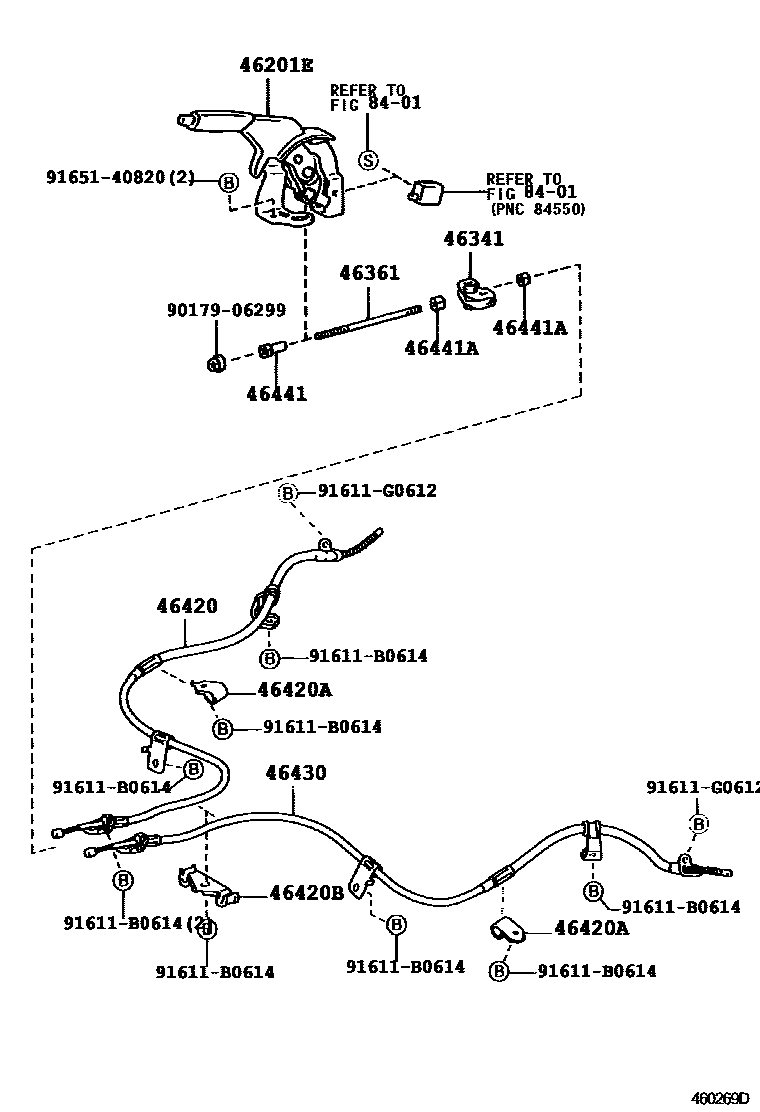

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1W(REAR DISK BRAKE)

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52020iSCP10..4HC200212

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B0iNCP10,15,SCP10..B,CLA,F,U199901-200112

MD.GRAY,TRIM1#

sub46201-52010

main46201-52010-B2iNCP15,SCP10..B,F200112-200212

SHADOW GRAY,TRIM1#

sub46201-52010

main46201-52010-B2iNCP15,SCP10..B,F200210-200212

SHADOW GRAY,TRIM12

sub46201-52010

main46201-52010-B2iNCP10,13..RS200010-200112

SHADOW GRAY,TRIM9#

sub46201-52010

main46201-52010-B3iNCP15,SCP10..(4FC,5F)..(B,F)200212-200501

DK.GRAY,TRIM9#

sub46201-52010

main46201-52010-G0iNCP10,15,SCP10..B,F,U199901-200112

MIST GREEN,TRIM7#

sub46201-52010

main46201-52050-B0iNCP15,SCP10..F;NCP15..5D..4FC..(CLA,U)200112-200212

sub46201-52050

main46201-52050-B0iNCP10,13..RS200112-200212

SHADOW GRAY,TRIM9#

sub46201-52050

main46201-52050-B1iNCP15,SCP10..5D..4FC..F200212-200501

sub46201-52050

main46201-52050-B1iNCP15..CLA,U;NCP15,SCP10..5D..5F..F200308

DK.GRAY,TRIM96,98

sub46201-52050

main46201-52050-B1iNCP15..CLA,U;NCP15,SCP10..5D..5F..F200212-200501

DK.GRAY,TRIM9#

sub46201-52050

main46201-52050-B1iNCP15..CLA,U;NCP15,SCP10..5D..5F..F200308

sub46201-52050

main46201-52050-B1iNCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U)200212-200501

DK.GRAY,TRIM0#,96,98

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP1#,SCP10199901-200212

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP1#,SCP10199901-200212

main46361-52020iSCP10..4HC200212

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52020iNCP10,SCP10..B,CLA,F,U199901-200501

main46420-52030iNCP15199908-200302

sub46420-52031

main46420-52031iNCP15200302-200501

main46420-52080iNCP10,13..RS200010-200501

main46420-52090iSCP10..4HC200212-200501

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B83iNCP15199908-200302

sub90949-01C31

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46451-52010iNCP15200203-200212

main90949-01B84iNCP15199908-200203

sub46451-52010

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52020iNCP10,SCP10..B,CLA,F,U199901-200501

main46430-52030iNCP15199908-200302

sub46430-52031

main46430-52031iNCP15200302-200501

main46430-52080iNCP10,13..RS200010-200501

main46430-52090iSCP10..4HC200212-200501

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP1#,SCP10199901-200212

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP1#,SCP10199901-200212

8401

9017906299

main90179-06299

91611B0614

main91611-B0614

91611G0612

main91611-G0612

9165140820

main91651-40820

15 parts on this diagram · 5 diagrams in section
