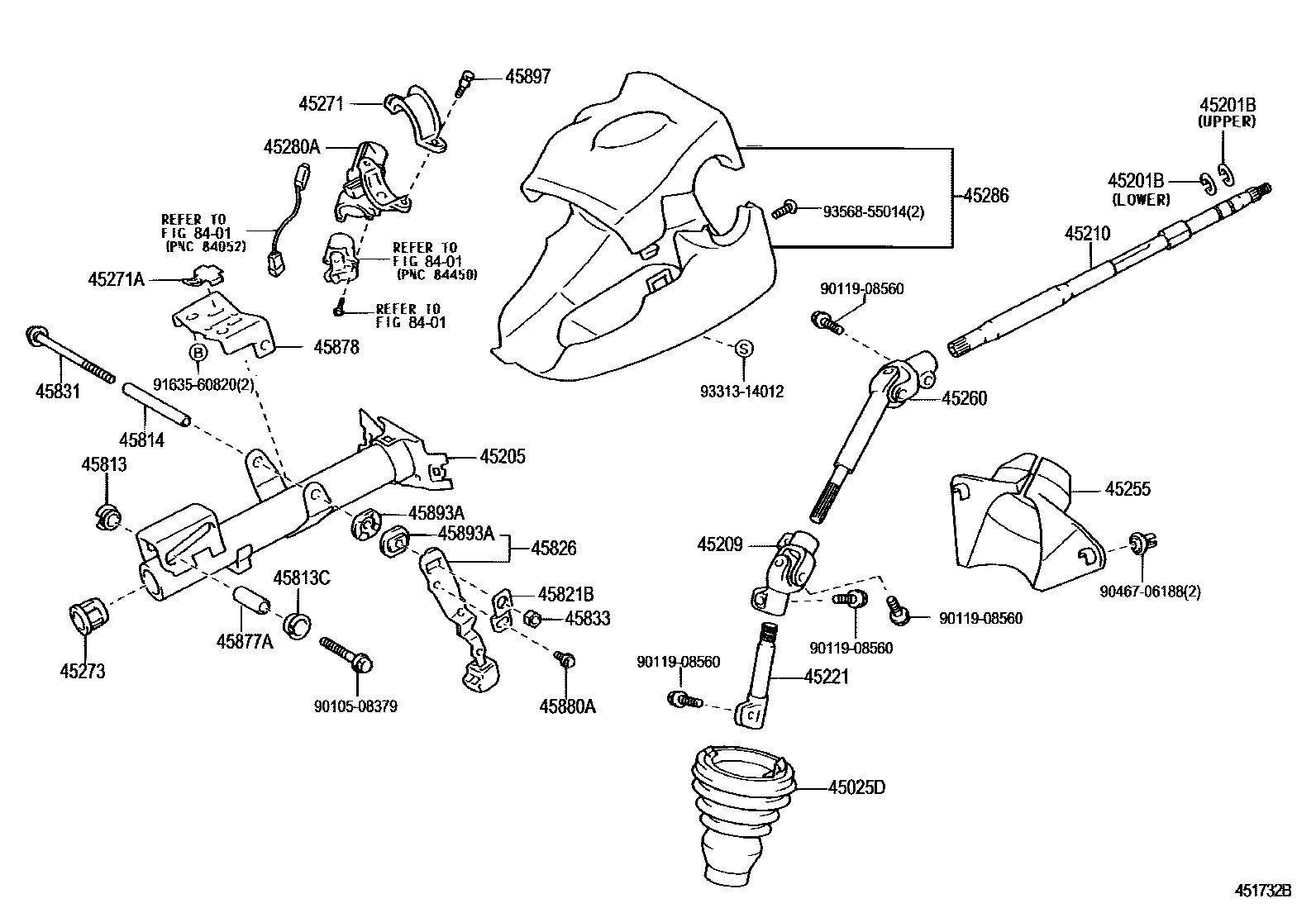

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52010iNCP10,13199901-200207

sub45025-52011

main45025-52010iNCP10,13199909-200112

sub45025-52011

main45025-52011iNCP10,13,SCP10200207-200212

main45025-52020iSCP10..B199901-200212

main45025-52020iSCP13200212

main45025-52050iNCP15199908-200212

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNCP1#,SCP10199901-200212

main90520-17269iNCP1#,SCP10199901-200212

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-52010iNCP1#,SCP10199901-200112

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52020iNCP1#,SCP1#199901-200212

45210SHAFT ASSY, STEERING MAIN

main45210-52010iNCP1#,SCP10199901-200212

45221SHAFT, STEERING INTERMEDIATE

main45297-52010iNCP10,13199901-200212

main45297-52010iNCP10,13199909-200112

main45297-52020iSCP10..B199901-200212

sub45297-52070

main45297-52020iSCP13200212

sub45297-52070

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52010iNCP10,13,SCP10199901-200212

main45255-52030iNCP15199908-200212

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52010iNCP10,13,SCP10199901-200212

main45260-52020iNCP15199908-200212

main45260-52140iSCP13200212

main45260-52160iSCP10..4HC200212

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCP1#,SCP10199901-200212

45271ACLAMP, STEERING COLUMN, UPPER NO.2

main45271-52010iNCP1#,SCP10199901-200112

45273BUSH, STEERING MAIN SHAFT

main45273-33030iNCP1#,SCP10199901-200212

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52020iNCP1#,SCP10..5F199901-200212

sub45280-52030

main45280-52030iNCP1#,SCP10..4FC199901-200212

main45280-52050iSCP10..4HC200212

45286COVER, STEERING COLUMN

main45286-52900-B0iNCP10,15,SCP10..B,CLA,F,U199901-200112

MD.GRAY,TRIM1#

sub45286-52900

main45286-52900-B2iNCP10,15,SCP10..B,CLA,F,U200112-200212

SHADOW GRAY,TRIM1#

sub45286-52900

main45286-52900-C0iNCP10,13..RS200010-200212

BLACK,TRIM9#

sub45286-52900

main45286-52900-G0iNCP10,15,SCP10..B,F,U199901-200112

MIST GREEN,TRIM7#

sub45286-52900

main45286-52908-B4iSCP10..4HC200212

DK.CHARCOAL,TRIM0#

main45286-52920-B0iNCP1#,SCP1#..4FC,5F,CVFC200212

DK.GRAY,TRIM9#

sub45286-52900

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-52010iNCP1#,SCP10199901-200112

45813CCOLLAR, TILT STEERING SUPPORT, NO.1

main45813-52020iNCP1#,SCP10199901-200112

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-52010iNCP1#,SCP10199901-200112

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-52010iNCP1#,SCP10199901-200112

45826LEVER, STEERING TILT

main45826-52010iSCP10199901-199903

sub45826-52011

main45826-52011iNCP1#,SCP10199903-200112

45831BOLT, TILT LEVER LOCK, NO.1

main45831-52010iNCP1#,SCP10199901-200112

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-52010iNCP1#,SCP10199901-200112

45877ASPACER, STEERING COLUMN BRACKET

main45877-52010iNCP1#,SCP10199901-200112

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-52010iNCP1#,SCP10199901-200112

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iNCP1#,SCP10199901-200112

45893ASTOPPER, TILT STEERING PAWL

main45893-52010iNCP1#,SCP10199901-200112

45897BOLT, STEERING LOCK SET

main45897-12020iNCP1#,SCP1#..4FC,5F,CVFC199901-200212

8401

9010508379

main90105-08379

9011908560

main90119-08560

9046706188

main90467-06188

9163560820

main91635-60820

9331314012

main93313-14012

9356855014

main93568-55014

32 parts on this diagram · 6 diagrams in section
