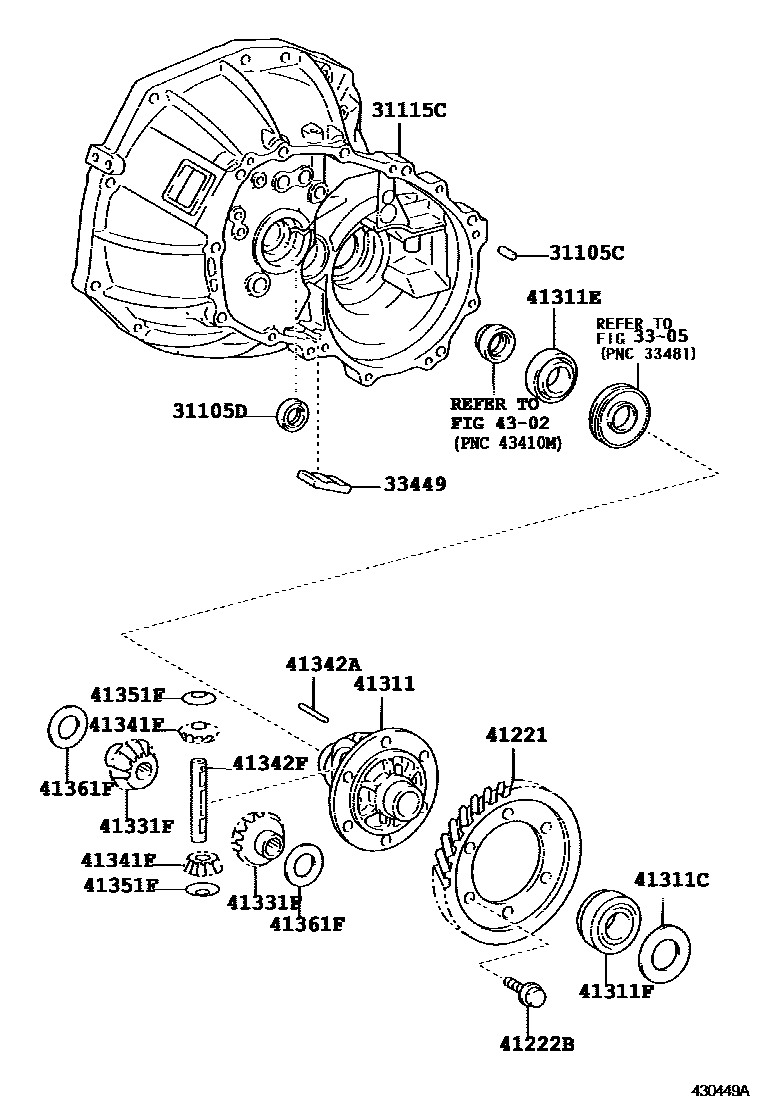

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C550 0002 1C50F 0003 1C56,C154 0004 1U440E,U441E 0005 1U340E

31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)

main90250-08054iSCP10..5F199901-200212

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-23004iSCP10..5F199901-200501

main90311-25011iNCP1#..5F200201-200501

sub90311-25028

main90311-25016iNCP1#..5F199909-200201

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-52010iNCP10,13..5F199909-200401

sub31115-52011

main31115-52011iNCP10,13..5F200401

sub31105-52070

main31115-52020iNCP15..5F199909-200212

sub31105-52080

main31115-52030iSCP10..5F199901-200301

sub31115-52031

main31115-52031iSCP10..5F200301

3305

33449MAGNET, TRANSMISSION

main33449-12020iNCP1#..5F199909-200212

main33449-60010iSCP10..5F199901-200212

41221GEAR, FRONT DIFFERENTIAL RING

main41221-10201iNCP10..5F199909-200212

sub41221-52300

main41221-12330iNCP15..5F199909-200212

sub41221-52260

main41221-12340iNCP13..5F200010-200212

sub41221-52270

main41221-52010iNCP15,SCP10..4FC199901-200212

main41221-52020iNCP10..4FC199909-200212

main41221-52030iSCP10..5F199901-200212

main41221-52060iNCP13..4FC200010-200212

sub41221-52061

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iNCP13..4FC200010-200212

main90105-11040iNCP15;NCP13..5F;NCP10,SCP10..4FC199901-200212

main90105-12100iNCP10..5F199909-200212

main90105-12313iSCP10..5F199901-200212

41311CASE, FRONT DIFFERENTIAL

main41301-10061iNCP10..5F199909-200501

main41301-12041iNCP13..5F200010-200501

main41301-12190iNCP13..5F200212-200501

main41301-52010iNCP10,SCP10..4FC199901-200501

main41301-52020iNCP15..4FC199908-200501

main41301-52030iNCP15..5F199909-200501

main41301-52040iNCP13..4FC200010-200204

sub41301-52070

main41301-52070iNCP13..4FC200112-200501

main41311-52040iSCP10..5F199901-200501

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-41001iSCP10..5F199901-200212

main90564-41002iSCP10..5F199901-200212

main90564-41003iSCP10..5F199901-200212

main90564-41004iSCP10..5F199901-200212

main90564-41005iSCP10..5F199901-200212

main90564-41006iSCP10..5F199901-200212

main90564-41007iSCP10..5F199901-200212

main90564-41008iSCP10..5F199901-200212

main90564-41009iSCP10..5F199901-200212

main90564-41010iSCP10..5F199901-200212

main90564-41011iSCP10..5F199901-200212

main90564-41012iSCP10..5F199901-200212

main90564-41013iSCP10..5F199901-200212

main90564-49001iNCP13..4FC200010-200212

main90564-49002iNCP13..4FC200010-200212

main90564-49003iNCP13..4FC200010-200212

main90564-49004iNCP13..4FC200010-200212

main90564-49005iNCP13..4FC200010-200212

main90564-49006iNCP13..4FC200010-200212

main90564-49007iNCP13..4FC200010-200212

main90564-49008iNCP13..4FC200010-200212

main90564-49009iNCP13..4FC200010-200212

main90564-49010iNCP13..4FC200010-200212

main90564-49011iNCP13..4FC200010-200212

main90564-49012iNCP13..4FC200010-200212

main90564-49013iNCP13..4FC200010-200212

main90564-49014iNCP13..4FC200010-200212

main90564-49015iNCP13..4FC200010-200212

main90564-49016iNCP13..4FC200010-200212

main90564-49017iNCP13..4FC200010-200212

main90564-49018iNCP13..4FC200010-200212

main90564-49019iNCP13..4FC200010-200212

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90080-36101iNCP10,13..5F200010-200402

sub90366-38004

sub90560-41003

main90366-38004iSCP10..5F199901-200501

main90366-38004iNCP10,13..5F..RS200010-200402

main90366-38026iNCP10,SCP10..ATM199901-200501

main90366-40016iNCP13..4FC200010-200501

main90366-50066iNCP15..4FC199908-200501

main90366-55045iNCP15..5F199909-200501

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-38023iNCP10,15,SCP10..ATM199901-200212

main90366-38029iSCP10..5F199901-200212

main90366-44001iNCP13..4FC200010-200212

main90368-38010iNCP1#..5F199909-200212

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10042iNCP10;NCP15,SCP10..ATM199901-200501

sub41331-44011

sub41331-48060

main41331-12011iNCP13;NCP15..5F199909-200501

main41331-52010iSCP10..5F199901-200501

sub41331-52011

41341FPINION, FRONT DIFFERENTIAL

main41341-10030iNCP10;NCP15,SCP10..4FC199901-200501

sub41341-44011

sub41341-48050

main41341-12030iNCP13,15..5F199909-200501

main41341-52010iSCP10..5F199901-200407

sub41341-52011

main41341-52011iSCP10..5F200407-200501

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iNCP15..4FC;NCP10,SCP10199901-200501

main90250-06058iNCP13;NCP15..5F199909-200501

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10041iNCP10;NCP15,SCP10..ATM199901-200501

main41342-12140iNCP13,15..5F199909-200501

sub41342-20060

main41342-20060iNCP13..4FC200010-200501

main41342-52010iSCP10..5F199901-200501

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030iNCP10..5F199909-200501

main41351-12020iNCP13;NCP15..5F199909-200501

main41351-52010iNCP10,15,SCP10..4FC199901-200501

main41351-52020iSCP10..5F199901-200501

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070iNCP10..5F199909-200501

main41361-10080iNCP10..5F199909-200501

main41361-10090iNCP10..5F199909-200501

main41361-10100iNCP10..5F199909-200501

main41361-10110iNCP10..5F199909-200501

main41361-10120iNCP10..5F199909-200501

main41361-17010iNCP13..4FC200010-200501

main41361-17020iNCP13..4FC200010-200501

main41361-17030iNCP13..4FC200010-200501

main41361-17040iNCP13..4FC200010-200501

main41361-17050iNCP13..4FC200010-200501

main41361-17060iNCP13..4FC200010-200501

main41361-22020iNCP13,15..5F199909-200501

main41361-22030iNCP13,15..5F199909-200501

main41361-22040iNCP13,15..5F199909-200501

main41361-22140iNCP13,15..5F199909-200501

main41361-22150iNCP13,15..5F199909-200501

main41361-22160iNCP13,15..5F199909-200501

main41361-52010iNCP10,15,SCP10..4FC199901-200501

main41361-52020iNCP10,15,SCP10..ATM199901-200501

main41361-52030iNCP10,15,SCP10..4FC199901-200501

main41361-52040iNCP10,15,SCP10..4FC199901-200501

main41361-52050iNCP10,15,SCP10..ATM199901-200501

main41361-52060iNCP10,15,SCP10..4FC199901-200501

main41361-52070iSCP10..5F199901-200501

main41361-52080iSCP10..5F199901-200501

main41361-52090iSCP10..5F199901-200501

main41361-52100iSCP10..5F199901-200501

main41361-52110iSCP10..5F199901-200501

main41361-52120iSCP10..5F199901-200501

main41361-52130iSCP10..5F199901-200501

main41361-52140iSCP10..5F199901-200501

main41361-52150iSCP10..5F199901-200501

main41361-52160iSCP10..5F199901-200501

4302

18 parts on this diagram · 5 diagrams in section
