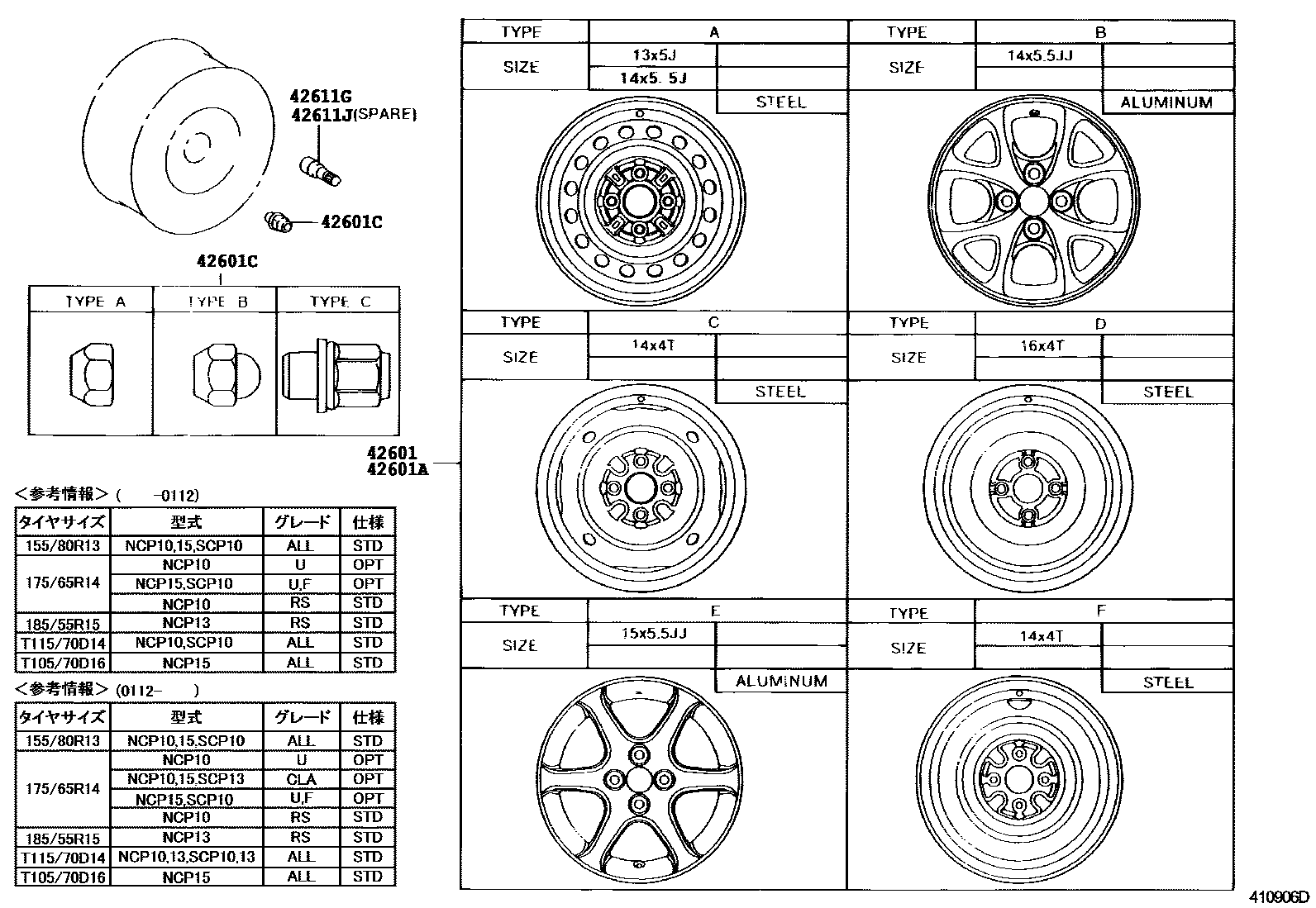

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52010iNCP15,SCP10..5D..4FC..F200106-200308

sub42611-52011

main42611-52010iSCP10..B199901-200212

sub42611-52011

main42611-52020iNCP10,15,SCP10..CLA,F,U199901-200212

sub42611-52021

main42611-52030iSCP10..5D..4FC..F200308-200404

main42611-52040iNCP10,15,SCP10..F,RS;NCP15..5D..4FC..(CLA,U)200001-200212

sub42611-52590

main42611-52040iNCP1#,SCP10..F,U199901-200001

sub42611-52590

main42611-52200iNCP13200010-200405

sub42611-52201

42601AWHEEL, DISC (FOR SPARE)

main42611-10321iNCP15199908-200212

sub42611-10322

main42611-16310iSCP10..4FC,5F199901-200212

sub42611-1A330

main42611-1A330iNCP10,13..RS200010-200212

42601CNUT, HUB (FOR AXLE)

main90942-01007iNCP15,SCP1#..CLA,F,U199901-200212

main90942-01007iSCP10..5D..4FC..F200308-200404

main90942-01021iNCP15,SCP10..5D..4FC..F200106-200308

main90942-01021iSCP10..B199901-200308

main90942-01033iNCP1#,SCP10..F,RS;NCP15..5D..4FC..(CLA,U)199901-200212

main90942-01082iSCP10..B200308

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNCP1#,SCP1#199901-200405

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP1#,SCP1#199901-200212

5 parts on this diagram · 3 diagrams in section
