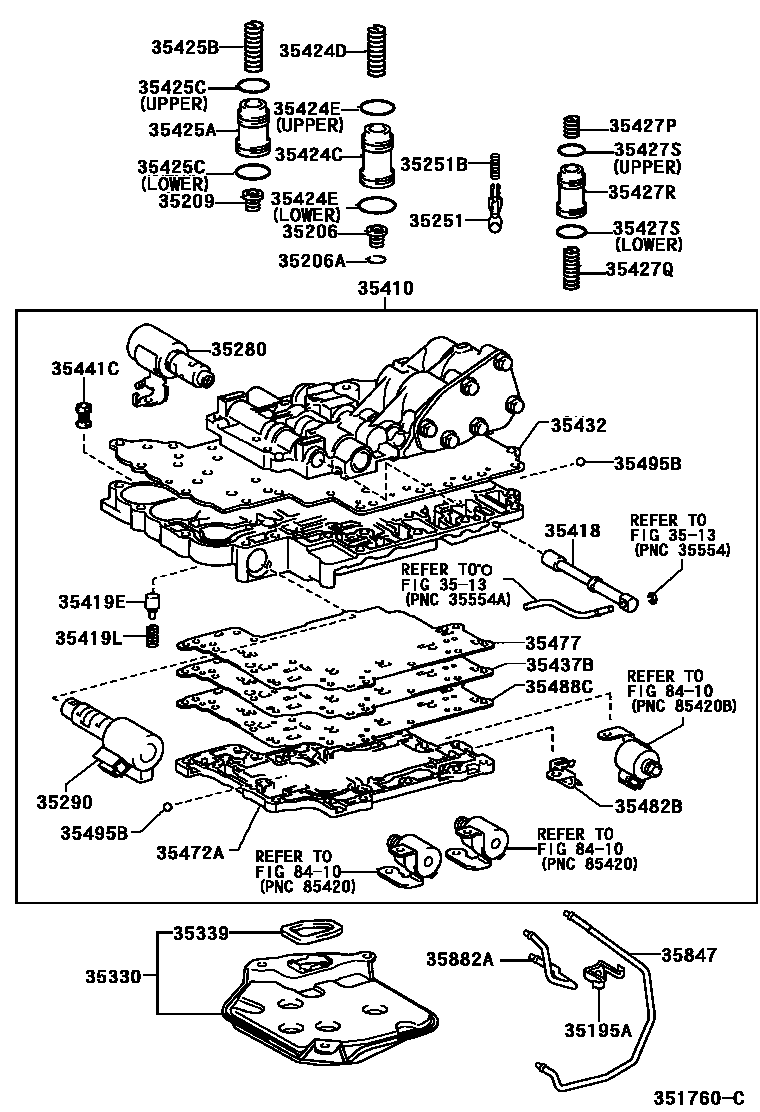

VALVE BODY & OIL STRAINER (ATM)
3513
35195ACLAMP, TRANSAXLE APPLY TUBE, NO.1
35206ARING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35251BODY, CHECK BALL
35251BSPRING, COMPRESSION(FOR CHECK BALL BODY)
35280SOLENOID ASSY, LOCK UP CONTROL
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35339GASKET, OIL STRAINER
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419EVALVE, CHECK, NO.3
sub35419-52050
35419LSPRING, COMPRESSION (FOR CHECK VALVE NO.3)
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35427COVER, ACCUMULATOR
35427PSPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427QSPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)
35427RPISTON B-1 ACCUMULATOR
35427SRING, O(FOR B-1 ACCUMULATOR PISTON)
35432PLATE, VALVE BODY, NO.1
35437BPLATE, VALVE BODY COVER
35441CSTRAINER, SOLENOID OIL
35472ACOVER, LOWER VALVE BODY
35477GASKET, VALVE BODY COVER
35482BCLAMP, TEMPERATURE SENSOR
35488CGASKET, VALVE BODY COVER, NO.2
35495BBALL, CHECK, NO.1
35847TUBE, TRANSMISSION LUBE APPLY
35882ATUBE, DIFFERENTIAL GEAR LUBE APPLY
8410
38 parts on this diagram · 10 diagrams in section
