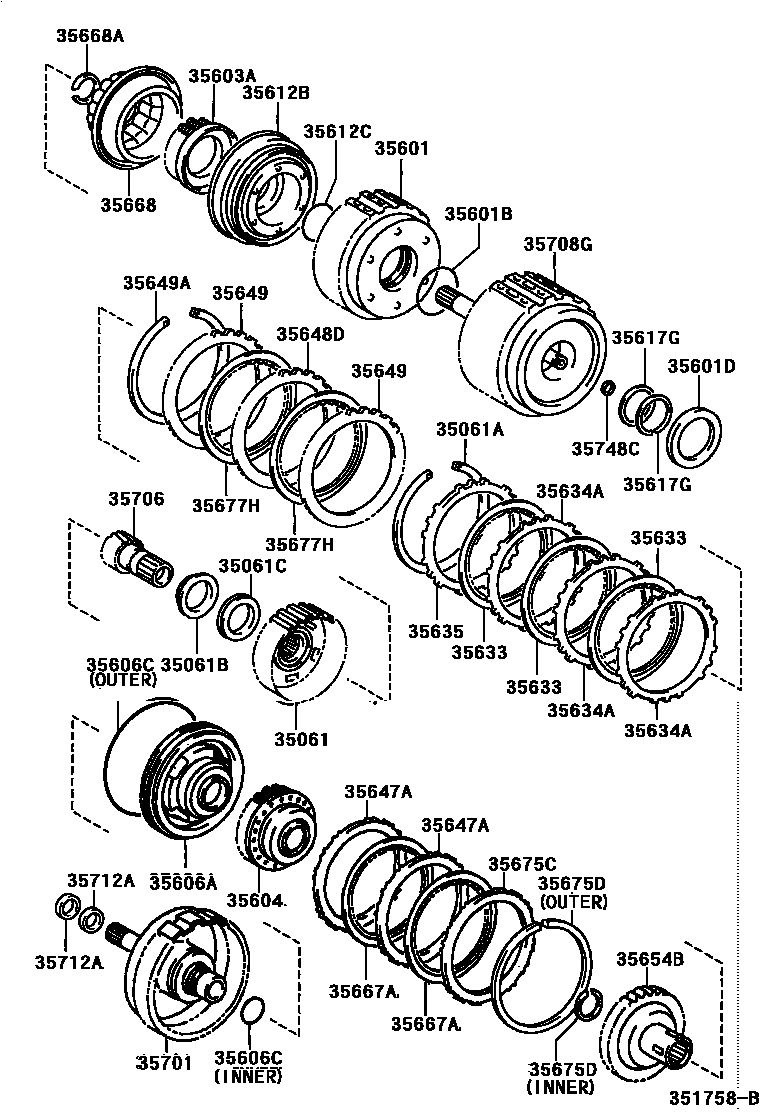

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061ARING, HOLE SNAP(FOR FORWARD CLUTCH FLANGE)
35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35601DRUM SUB-ASSY, CLUTCH
35601BRING, O (FOR FRONT CLUTCH DRUM)
sub90301-46007
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35617GRING, CLUTCH DRUM OIL SEAL
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35648DPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35667ADISK, DIRECT CLUTCH
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675FLANGE, REAR CLUTCH
35675CFLANGE, DIRECT CLUTCH
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35701SHAFT SUB-ASSY, INPUT
35706GEAR SUB-ASSY, PLANETARY SUN
35708GSHAFT SUB-ASSY, INTERMEDIATE
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
sub35748-52011
34 parts on this diagram · 2 diagrams in section
