TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

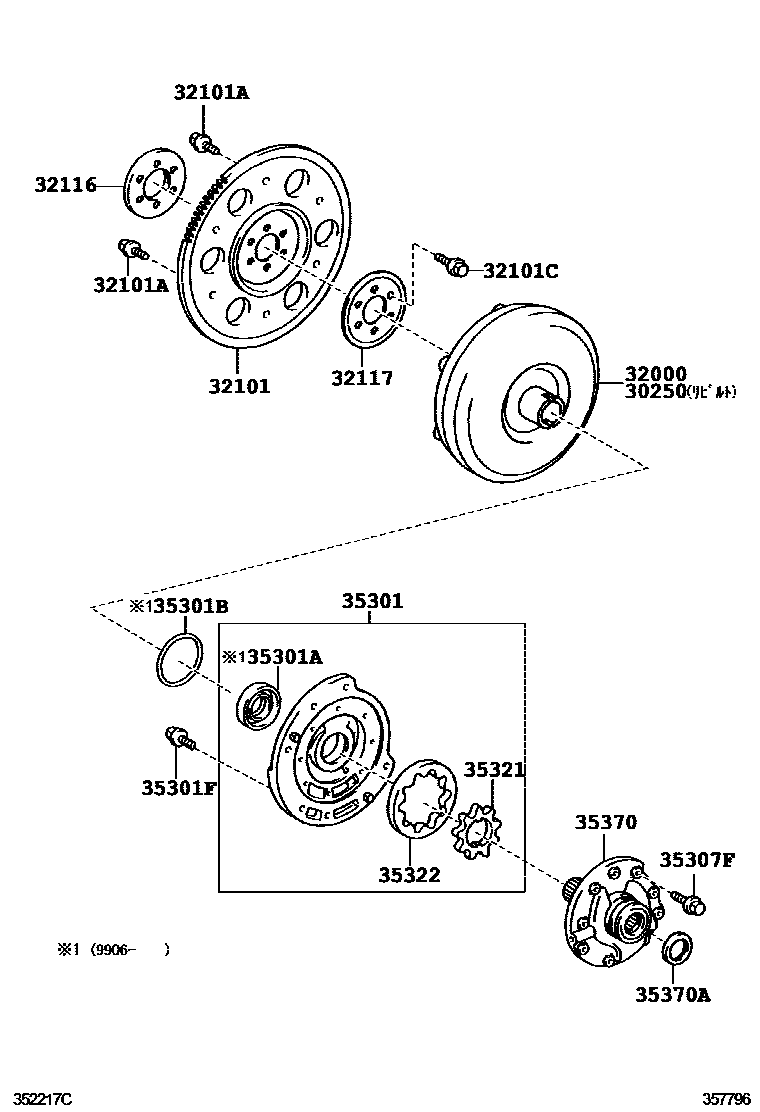

Parts diagram
30250CONVERTER ASSY, TORQUE, REBUILT
main30250-52010i199901-200501
main30250-52020i199909-200501
sub30250-52110
main30250-52060i199909-200501
sub30250-52110
32000CONVERTER ASSY, TORQUE
main32000-52010i199901-200501
main32000-52020i199909-200501
sub32000-52110
main32000-52040i200010-200501
sub32000-52041
main32000-52060i199908-200501
sub32000-52110
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-52010i199901-199910
sub32111-52010
main32101-52020i199908-200208
sub32101-52021
main32101-52021i200208-200212
main32111-52010i199910-200212
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08107i199901-200403
main90109-08113i200404
main90109-08113i200001-200212
main90119-08269i199901-200403
main90119-08498i200001-200212
main90119-08498i200404
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i199901-200212
32116SPACER, DRIVE PLATE, FRONT
main32116-52010i199901-200212
main32116-52030i199908-200212
32117SPACER, DRIVE PLATE, REAR
main32117-52010i199901-200212
main32117-52030i199908-200212
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-52010i199901-199906
main35035-52030i199906-200212
main35035-52040i200010-200212
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38064i200112-200212
main90311-38064i200010-200112
main90311-38075i199906-200212
main90311-38077i200010-200112
sub90311-38064
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99123i199906-200501
main90301-99124i200010-200501
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08301i200010-200501
main90105-08376i199901-200501
35307FBOLT (FOR STATOR SHAFT)
main90119-06559i200212
main90119-06808i199901-200212
sub90119-06559
main90148-60027i200010-200212
35321GEAR, FRONT OIL PUMP DRIVE
main35321-52010i199901-200212
main35321-52020i199901-200212
main35321-52030i199901-200212
main35321-52040i199901-200212
main35321-52050i199901-200212
main35321-52060i200010-200212
main35321-52070i200010-200212
main35321-52080i200010-200212
main35321-52090i200010-200212
main35321-52100i200010-200212
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-52010i199901-200212
main35322-52020i199901-200212
main35322-52030i199901-200212
main35322-52040i199901-200212
main35322-52050i199901-200212
main35322-52060i200010-200212
main35322-52070i200010-200212
main35322-52080i200010-200212
main35322-52090i200010-200212
main35322-52100i200010-200212
35370SHAFT ASSY, STATOR
main35370-52010i199901-200212
main35370-52030i200010-200212
sub35370-52070
35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
main90374-26003i200010-200501
main90374-32007i199901-200501
main90374-32008i199901-200501

16 parts on this diagram · 2 diagrams in section
