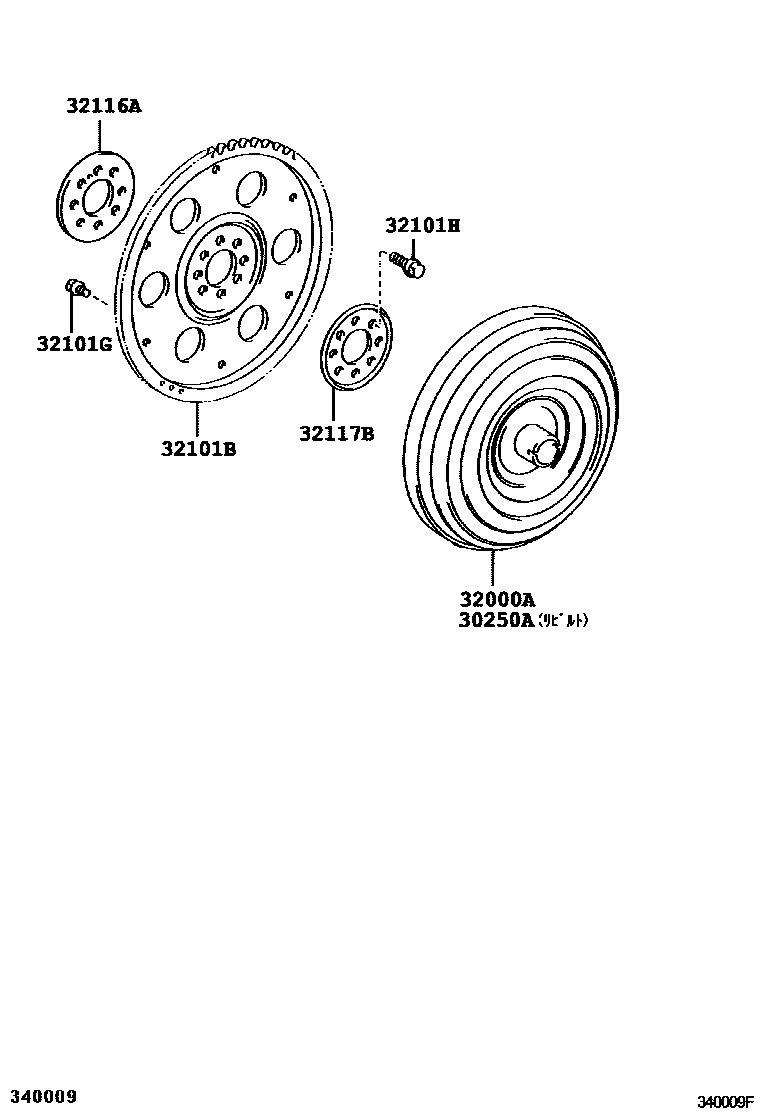

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-52080iSCP13200212-200501

32000ACONVERTER ASSY, TORQUE

main32000-52080iSCP13200212-200501

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52050iSCP13..U200302

sub32101-52060

main32111-52030iSCP13200212

sub32101-52080

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iSCP13200212-200404

main90109-08113iSCP13200404

main90119-08269iSCP13200212-200404

main90119-08498iSCP13200404

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iSCP13200212

32116ASPACER, DRIVE PLATE, FRONT

main32116-52010iSCP13200212

32117BSPACER, DRIVE PLATE, REAR

main32117-52010iSCP13200212

7 parts on this diagram · 1 diagram in section
