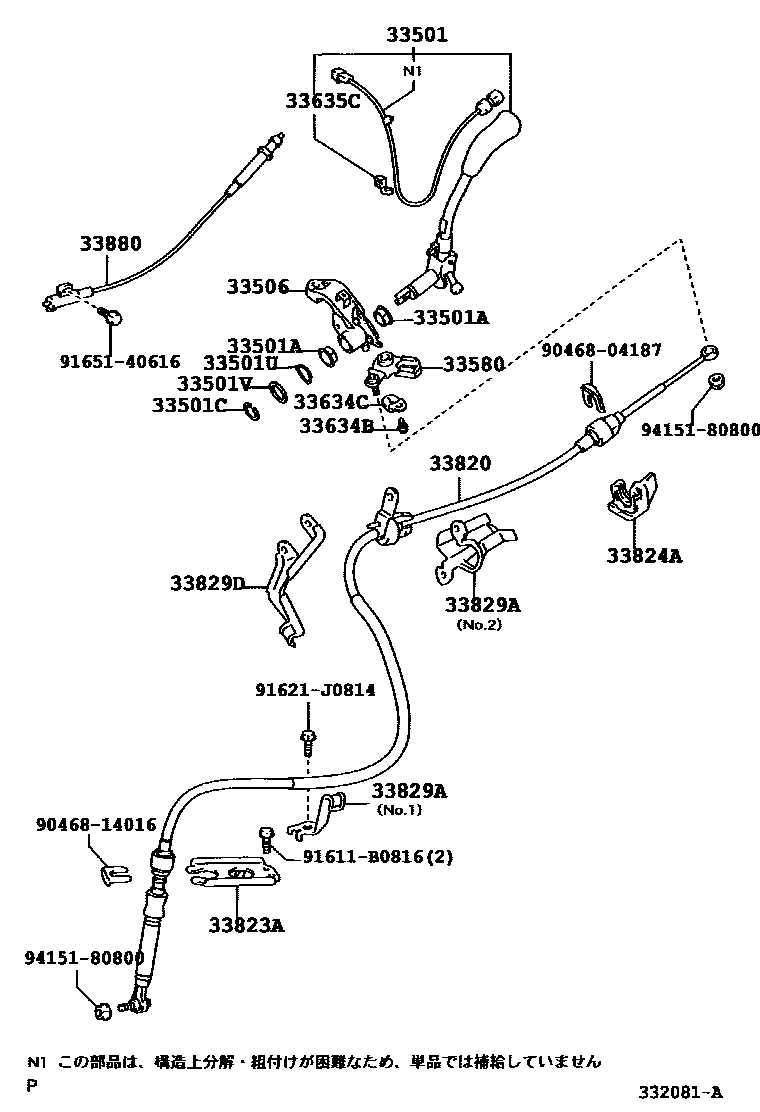

CONTROL SHAFT & CROSSSHAFT

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-52030iSCP10..4HC200212

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-21002iSCP10..4HC200212

33501CRING (FOR CONTROL SHAFT)

main96150-02000iSCP10..4HC200212

33501UWASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)

main90206-21002iSCP10..4HC200212

33501VSPACER(FOR COLUMN SHIFT CONTROL SHIFT)

main90560-22005iSCP10..4HC200212

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-52022iSCP10..4HC200212

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-52010iSCP10..4HC200212

33634BBOLT(FOR WIRE PROTECTOR)

main33529-52010iSCP10..4HC200212

33634CBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-32010iSCP10..4HC200212

33635CGUIDE, WIRE

main33635-52010iSCP10..4HC200212

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-52350iSCP10..4HC200212

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-52010iSCP10..4HC200212

33824ACOVER, TRANSMISSION CONTROL CABLE

main33824-52010iSCP10..4HC200212

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-52010iSCP10..4HC200212

main33829-52050iSCP10..4HC200212

33829DBRACKET, TRANSMISSION CONTROL CABLE

main33829-52070iSCP10..4HC200212

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-52030iSCP10..4HC200212-200501

9046804187

main90468-04187

9046814016

main90468-14016

91611B0816

main91611-B0816

91621J0814

main91621-J0814

9165140616

main91651-40616

9415180800

main94151-80800

22 parts on this diagram · 1 diagram in section
