TRANSMISSION GEAR (MTM)

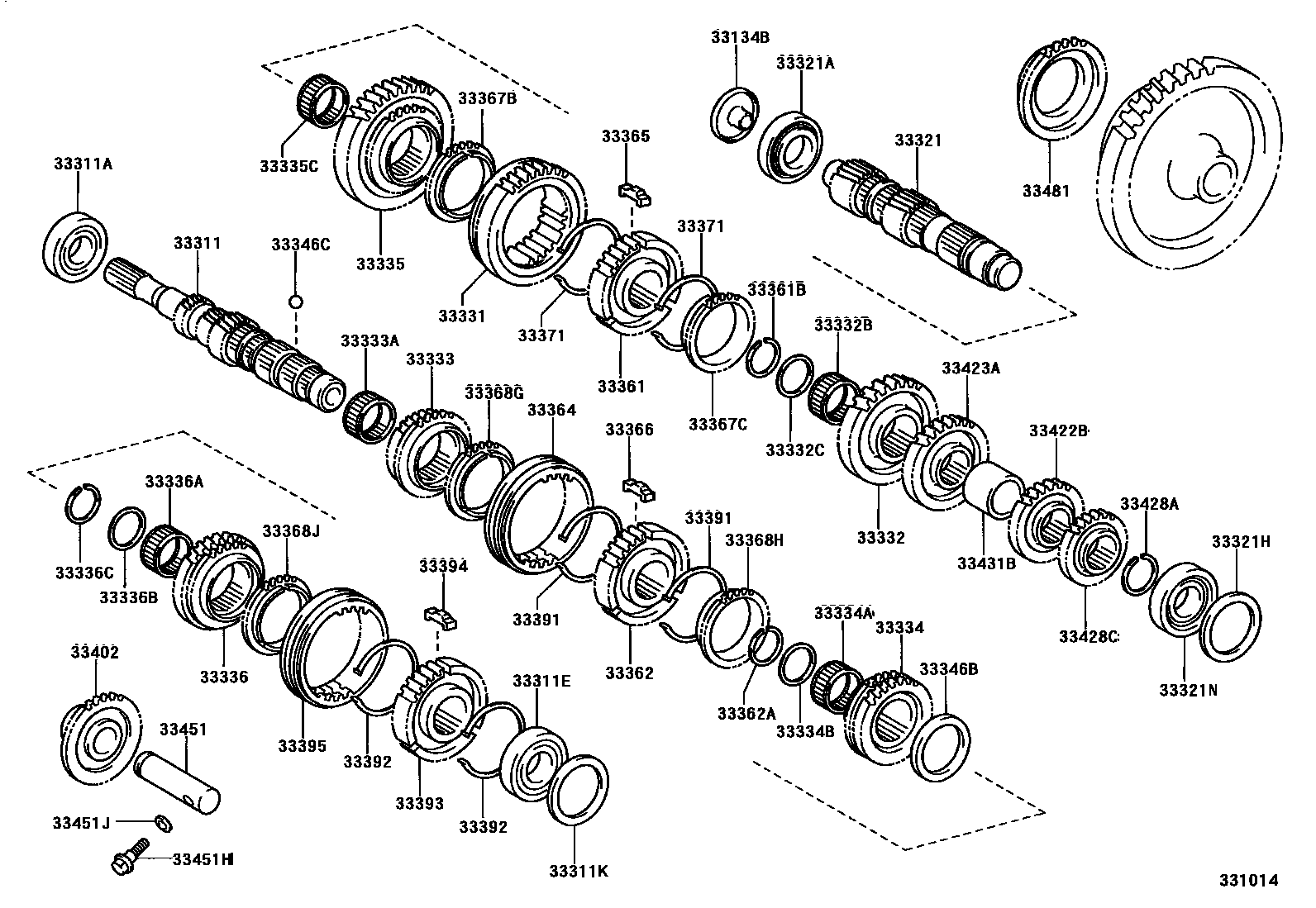

Parts diagram
33134BCOVER, OUTPUT SHAFT(MTM)
main33134-12022i199909-200212
main33134-52010i199901-200212
33311SHAFT, INPUT
main33311-10061i199909-200203
sub33311-10062
main33311-10062i200203-200501
sub33311-12220
main33311-12170i199909-200204
sub33311-12171
main33311-12180i200010-200204
sub33311-12181
main33311-12181i200204-200501
sub33311-12240
main33311-12230i200204-200501
sub33311-12231
main33311-52010i199901-200411
sub33311-52011
main33311-52011i200411-200501
sub33311-52012
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-23001i199901-200212
main90365-25021i199909-200212
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
main90363-25035i199909-200501
main90363-25048i199909-200501
sub90363-25091
main90363-25073i199901-200501
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
main90564-38006i199901-200212
main90564-38007i199901-200212
main90564-38008i199901-200212
main90564-38009i199901-200212
main90564-38010i199901-200212
main90564-38011i199901-200212
main90564-38012i199901-200212
main90564-38013i199901-200212
main90564-38014i199901-200212
main90564-38015i199901-200212
main90564-38016i199901-200212
main90564-38017i199901-200212
main90564-38018i199901-200212
33321SHAFT, OUTPUT
main33321-10051i199909-200501
sub33321-12230
main33321-12071i199909-200501
sub33321-52100
main33321-17011i200010-200501
sub33321-52110
main33321-52010i199901-200501
sub33321-52011
33321ABEARING (FOR OUTPUT SHAFT REAR)
main90363-25034i199909-200212
main90363-25066i199909-200212
main90363-25067i200010-200212
sub90903-63010
main90366-25012i199901-200212
main90903-63010i200212
sub90363-25060
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
main90564-38001i199901-200212
main90564-38002i199901-200212
main90564-38003i199901-200212
main90564-38004i199901-200212
main90564-38005i199901-200212
main90564-38006i199901-200212
main90564-38007i199901-200212
main90564-38008i199901-200212
main90564-38009i199901-200212
main90564-38010i199901-200212
main90564-38011i199901-200212
main90564-38012i199901-200212
main90564-38013i199901-200212
main90564-38014i199901-200212
main90564-38015i199901-200212
33321NBEARING (FOR OUTPUT SHAFT FRONT)
main90365-33005i199909-200212
main90366-23001i199901-200212
33331GEAR, REVERSE
main33331-12060i199909-200501
main33331-52010i199901-200411
sub33331-52H00
main33331-52030i200411-200501
33332GEAR, 2ND
main33033-10030i199909-200501
sub33033-12080
main33033-12060i199909-200501
sub33033-12090
main33332-52010i199901-200501
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-32014i199909-200501
main90364-32017i199909-200501
main90364-34009i199901-200501
33332CSPACER (FOR 2ND GEAR BEARING)
main90560-32008i199909-200212
main90560-34005i199901-200212
33333GEAR, 3RD
main33034-10050i199909-200301
sub33034-10051
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
main33034-10051i200301-200501
sub33034-12190
main33034-12110i199909-200301
sub33034-12111
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
main33034-12111i200301-200501
sub33034-12150
main33034-12130i200010-200301
sub33034-12131
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
main33034-12131i200301-200501
sub33034-12160
main33034-52010i199901-200501
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-31002i199909-200501
main90364-31004i199909-200501
main90364-34008i199901-200501
33334GEAR, 4TH
main33035-20080i199909-200005
sub33035-20160
main33035-20090i199909-200005
sub33035-20170
main33035-20160i200005-200301
sub33035-20161
sub33368-12180
sub33368-12190
main33035-20161i200301-200501
sub33035-12140
main33035-20170i200005-200301
sub33035-20171
sub33368-12180
sub33368-12190
main33035-20171i200301-200501
sub33035-52060
main33035-52010i199901-200501
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
main90364-29002i199909-200501
main90364-34008i199901-200501
33334BSPACER (FOR 4TH GEAR BEARING)
main90560-29001i199909-200212
main90560-34005i199901-200212
33335GEAR, 1ST
main33032-10040i199909-200501
sub33032-12080
main33032-12060i199909-200501
sub33032-12090
main33032-12070i200010-200501
sub33032-12100
main33335-52010i199901-200501
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-34007i199901-200501
main90364-38007i199909-200501
main90364-38008i199909-200501
33336GEAR, 5TH
main33036-12100i199909-200501
sub33036-20070
main33036-20090i199909-200501
sub33036-42010
main33036-52010i199901-200501
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90364-24006i199909-200501
sub90364-24005
main90364-31008i199901-200501
sub90364-T0001
33336BSPACER (FOR 5TH GEAR BEARING)
main90560-25006i199909-200212
main90560-31003i199901-200212
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
main90520-29049i199901-200212
main90520-29050i199901-200212
main90520-29052i199901-200212
main90520-29053i199901-200212
main90520-29054i199901-200212
main90520-29055i199901-200212
33346BWASHER, 5TH GEAR THRUST
main33346-52010i199901-200212
33346CBALL (FOR 5TH GEAR THRUST WASHER)
main90360-05012i199901-200212
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-12030i199909-200212
main33361-52010i199901-199908
sub33361-52011
main33361-52011i199908-199912
sub33361-52012
main33361-52012i199912-200212
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
main90520-29018i199909-200212
main90520-29019i199909-200212
main90520-29020i199909-200212
main90520-29021i199909-200212
main90520-29022i199909-200212
main90520-29023i199909-200212
main90520-32014i199901-200212
main90520-32015i199901-200212
main90520-32016i199901-200212
main90520-32017i199901-200212
main90520-32018i199901-200212
main90520-32019i199901-200212
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-12020i199909-200212
main33362-52010i199901-199908
sub33362-52011
main33362-52011i199908-200212
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90520-27046i199909-200212
main90520-27047i199909-200212
main90520-27048i199909-200212
main90520-27049i199909-200212
main90520-27050i199909-200212
main90520-27051i199909-200212
main90520-32014i199901-200212
main90520-32015i199901-200212
main90520-32016i199901-200212
main90520-32017i199901-200212
main90520-32018i199901-200212
main90520-32019i199901-200212
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-12050i200212-200501
sub33364-12051
main33364-20030i199909-200112
main33364-20031i200112-200301
sub33364-20030
main33364-52010i199901-200501
sub33364-52030
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-12021i199909-200212
main33365-12021i200212-200407
main33365-52010i199901-200212
main33365-52020i200407
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33366-12020i199909-200407
main33366-52010i199901-200212
main33366-52020i200407
33367RING, SYNCHRONIZER, NO.1
main33367-12140i199909-200212
main33367-12150i199909-200212
33367BRING, SYNCHRONIZER (FOR 1ST GEAR)
main33367-52010i199901-200212
33367CRING, SYNCHRONIZER (FOR 2ND GEAR)
main33367-52020i199901-200212
33368RING, SYNCHRONIZER, NO.2
main33368-12130i199909-200301
main33368-12140i199909-200301
main33368-12200i200301
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
main33368-52010i199901-200212
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
main33368-52020i199901-200212
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
main33369-52010i199901-200212
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-12020i199909-200407
main33371-52010i199901-200212
main33371-52020i200407
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
main33371-52010i199901-200212
main33391-12020i199909-200407
main33391-52010i200407
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33371-52010i199901-200212
main33391-12030i199909-200212
33393HUB, TRANSMISSION CLUTCH, NO.3
main33393-12040i199909-200212
main33393-52010i199901-199908
sub33393-52011
main33393-52011i199908-200212
33394KEY, SYNCHROMESH SHIFTING, NO.3
main33394-12011i199909-200407
sub33394-52020
main33394-52010i199901-200212
main33394-52020i200407
33395SLEEVE, TRANSMISSION HUB, NO.3
main33395-20040i199909-200501
sub33395-20041
main33395-52010i199901-200501
sub33395-52030
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-10030i199909-200407
sub33402-10031
main33402-10031i200407
main33402-12041i199909-200407
sub33402-12042
main33402-12042i200407
main33402-52010i199901-200411
sub33331-52H00
main33402-52030i200411
33422BGEAR, 4TH DRIVEN
main33422-10040i199909-200501
sub33422-52040
main33422-12050i199909-200501
sub33422-12090
main33422-52010i199901-200501
33423AGEAR, 3RD DRIVEN
main33423-10011i199909-200212
main33423-12010i199909-200212
main33423-12040i200010-200212
main33423-52010i199901-200212
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
main90520-27070i199901-200212
main90520-27071i199901-200212
main90520-27072i199901-200212
main90520-27073i199901-200212
main90520-27074i199901-200212
main90520-27075i199901-200212
main90520-27076i199901-200212
main90520-27077i199901-200212
main90520-27078i199901-200212
33428CGEAR, 5TH DRIVEN
main33428-10040i199909-200501
sub33428-42010
main33428-12050i200501
sub33428-12110
main33428-12070i199909-200501
sub33428-12050
main33428-42010i200501
sub33428-12120
main33428-52010i199901-200212
33431BSPACER, OUTPUT SHAFT
main33431-52010i199901-200212
sub33431-52020
33451SHAFT, REVERSE IDLER GEAR
main33451-10021i199909-200212
main33451-12021i199909-200212
main33451-52010i199901-200212
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90109-08097i199901-200212
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90430-08010i199901-200212
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-10080i199909-200212
main33481-12040i200010-200212
main33481-16050i199909-200212
main33481-52010i199901-200212

56 parts on this diagram · 3 diagrams in section
