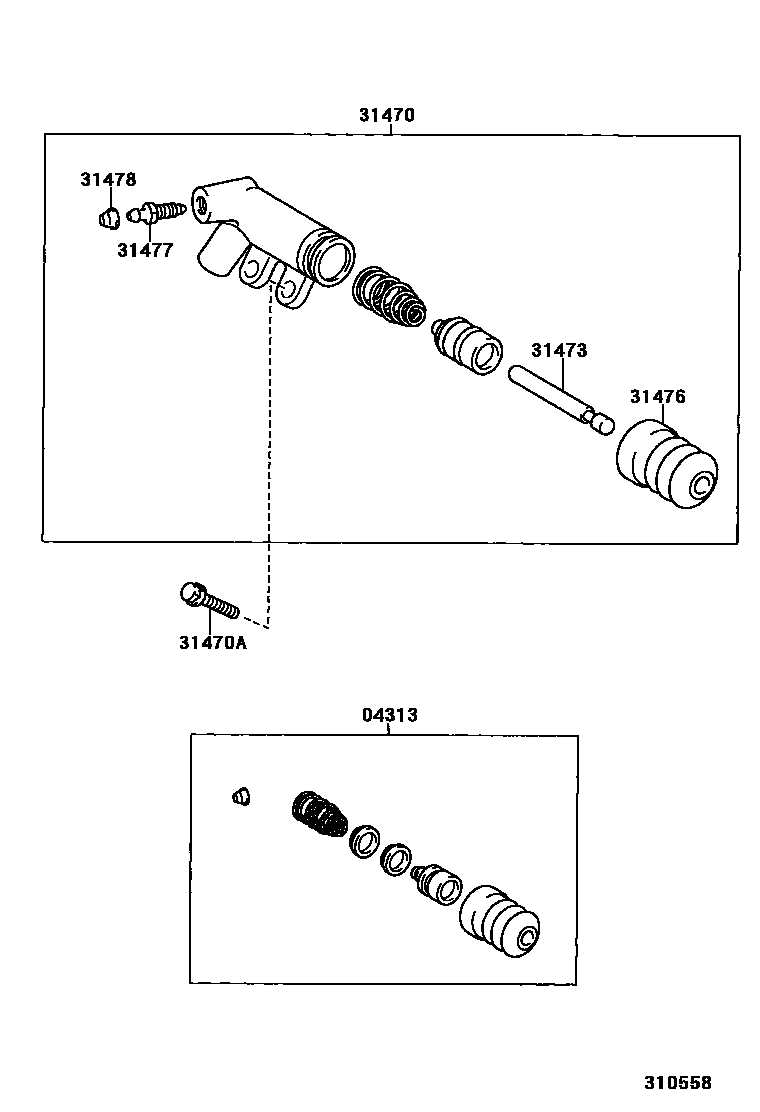

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1���� ����-��

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12060iNCP1#..5F200407-200501

main04313-17010iSCP10..5F199901-200501

main04313-18020iNCP1#..5F199909-200212

main04313-22030iSCP10..5F..B200101-200212

main04313-35060iNCP1#..5F200109-200406

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52010iNCP1#..5F199909-200109

sub31470-52011

main31470-52011iNCP1#..5F200109-200212

sub31470-12200

main31470-52020iSCP10..5F199901-200212

main31470-52050iSCP10..5F..B200101-200212

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNCP1#,SCP10..5F199901-200212

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iSCP10..5F199901-200212

main31473-32010iNCP1#..5F199909-200112

main31473-35050iNCP1#..5F200112-200212

main31473-52020iSCP10..5F..B200101-200212

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP1#,SCP10..5F199901-200212

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP1#,SCP10..5F199901-200212

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP1#,SCP10..5F199901-200212

7 parts on this diagram · 3 diagrams in section
