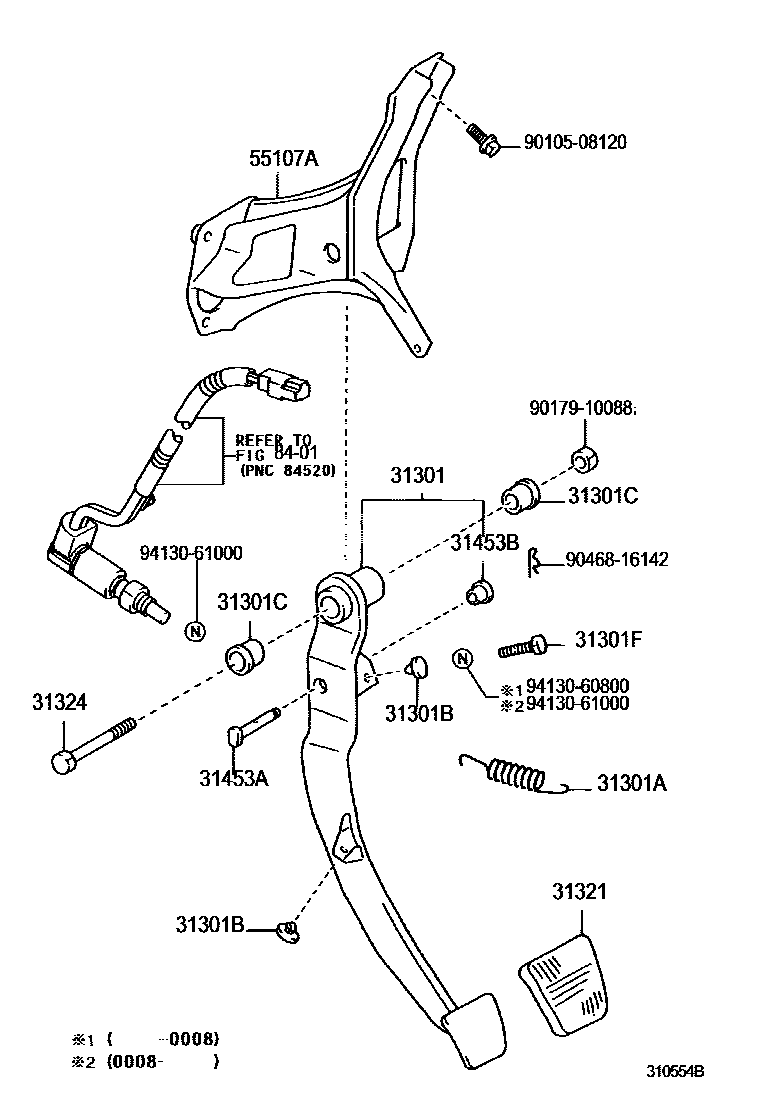

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1���� ������� 0003 1 0004 1 0005 1���� ����-��

31301PEDAL SUB-ASSY, CLUTCH

main31301-52030iNCP1#,SCP10..5F199901-200112

main31301-52080iSCP10..5F..B200112-200212

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP1#,SCP10..5F200212

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×3iSCP10..5F..B200105-200112

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNCP1#,SCP10..5F199901-200112

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iNCP1#,SCP10..5F199901-200008

main90101-10369iNCP1#,SCP10..5F200008-200112

31321PAD, CLUTCH PEDAL

main31321-52010iNCP1#,SCP10..5F199901-200112

31324SHAFT, CLUTCH PEDAL

main90109-10167iNCP1#,SCP10..5F199901-200112

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iNCP1#,SCP10..5F200212

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP1#,SCP10..5F200112-200212

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52030iNCP1#,SCP10..5F199901-200008

main55107-52031iNCP1#,SCP10..5F200008-200112

main55107-52050iSCP10..5F..B200105-200112

8401

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

9413060800

main94130-60800

9413061000

main94130-61000

16 parts on this diagram · 5 diagrams in section
