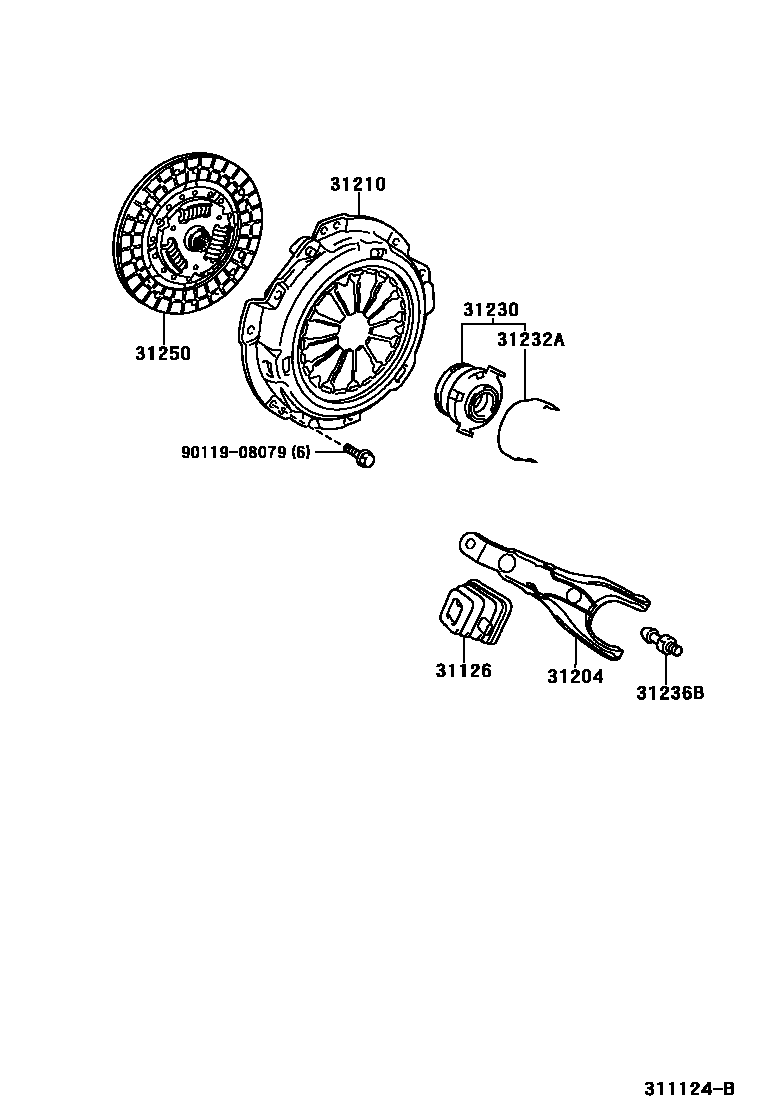

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP1#,SCP10..5F199901-200212

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP1#..5F199909-200212

main31204-52020iSCP10..5F199901-200212

31210COVER ASSY, CLUTCH

main31210-12191iNCP10..5F199909-200405

sub31210-12192

main31210-12192iNCP13,15..5F200406-200501

sub31210-52070

main31210-12210iNCP10..5F199909-200501

sub31210-12280

main31210-52010iSCP10..5F199901-200501

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP1#..5F200109-200501

sub31230-12181

main31230-52010iSCP10..5F199901-200501

sub31230-52011

main31230-52020iNCP1#..5F199909-200109

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP1#..5F200109-200501

main31232-52010iSCP10..5F..(F,U)199901-200501

main31232-52020iNCP1#..5F199909-200109

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP1#..5F199909-200212

main31236-52010iSCP10..5F199901-200212

31250DISC ASSY, CLUTCH

main31250-12360iNCP15..5F199909-200501

sub31250-12361

main31250-12391iNCP10..5F199909-200206

sub31250-12392

main31250-12392iNCP10..5F200206-200501

sub31250-12393

main31250-52010iSCP10..5F199901-200501

sub31250-52080

main31250-52030iNCP15..5F200208-200501

sub31250-52031

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
