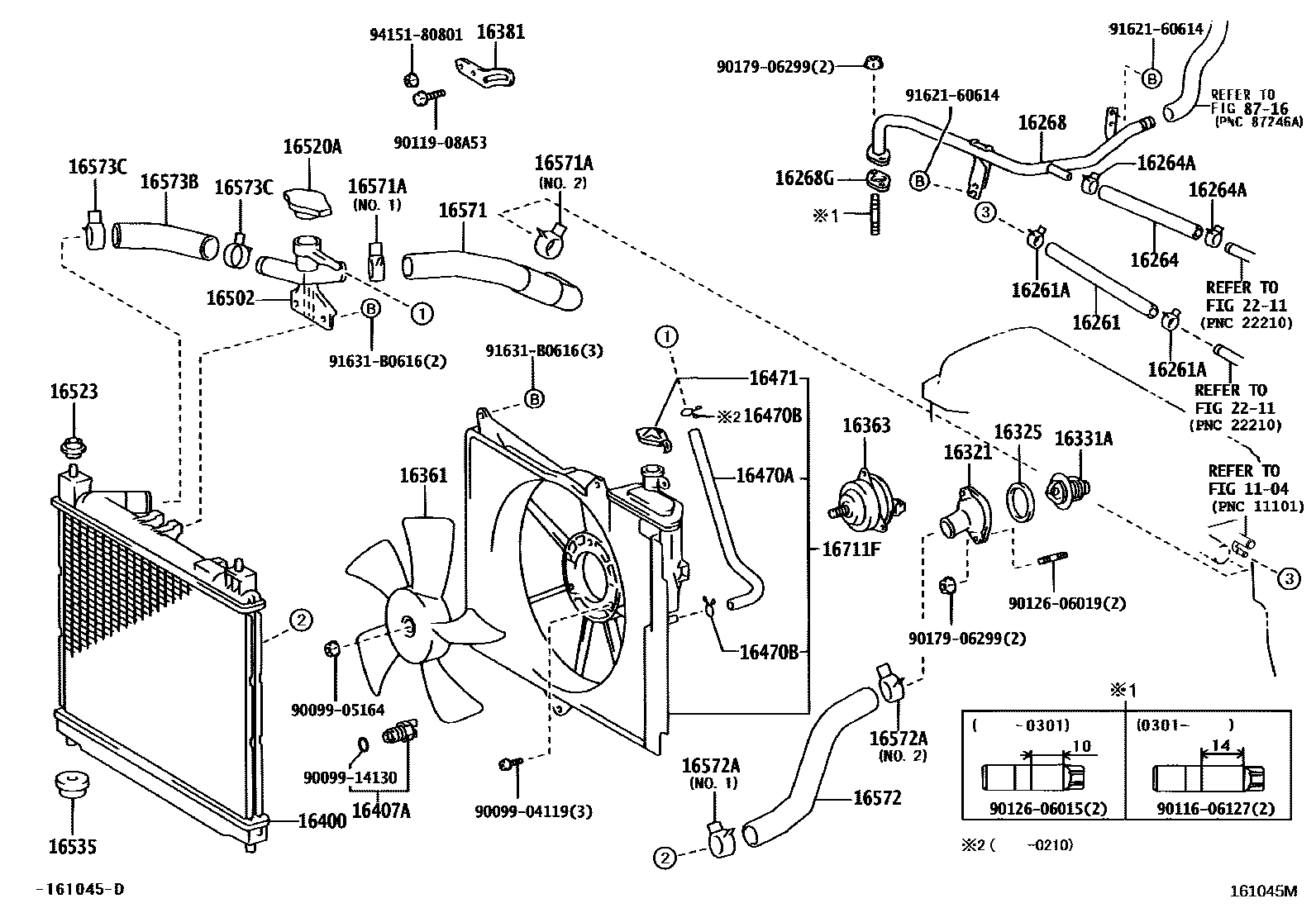

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

16261HOSE, WATER BY-PASS

main99555-10185i1NZFE,2NZFE..NCP1#199908-200212

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13054i1NZFE,2NZFE..NCP1#199908-200501

16264HOSE, WATER BY-PASS, NO.2

main16261-21040i1NZFE,2NZFE..NCP1#200202-200212

main99555-10200i1NZFE,2NZFE..NCP1#199908-200202

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13054i1NZFE,2NZFE..NCP1#199908-200501

16268PIPE, WATER BY-PASS, NO.1

main16268-21020i1NZFE,2NZFE..NCP1#199908-200301

sub16268-21022

main16268-21021i1NZFE,2NZFE..NCP1#200301-200411

sub16268-21022

main16268-21022i1NZFE,2NZFE..NCP1#200411

16268GGASKET(FOR WATER BY-PASS PIPE)

main16258-21010i2NZFE..NCP1#199908-200001

sub16258-21030

main16258-21020i1NZFE,2NZFE..NCP1#200001-200212

sub16258-21021

16321INLET, WATER

main16321-21020i1NZFE,2NZFE..NCP1#199908-200212

main16321-23010i1SZFE..SCP10199901-200212

sub16321-23040

sub90179-06036

sub91671-80630

sub92132-80625

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1NZFE,2NZFE..NCP1#199908-200212

16331ATHERMOSTAT

main90916-03093i1NZFE,2NZFE..NCP1#199908-200212

main90916-03122i1SZFE..SCP10199901-200212

16361FAN

main16361-21030i2NZFE..NCP1#199908-200004

sub16361-21080

main16361-21080i1NZFE,2NZFE..NCP1#200004-200212

main16361-23040i1SZFE..SCP10199901-200202

sub16361-28100

main16361-28100i1SZFE..SCP10200202-200212

16363MOTOR, COOLING FAN

main16363-23020i1SZFE..SCP10199901-200306

main16363-23050i2SZFE..SCP13200212-200501

main16363-28150i1SZFE..SCP10200306-200501

16381BAR, FAN BELT ADJUSTING

main16381-21020i2NZFE..NCP10,15199908-200212

main16381-21030i1NZFE..NCP13200010-200212

main16381-23030i1SZFE..SCP10199901-200212

main16381-23030i1SZFE..SCP10200212-200501

main16381-23040i2SZFE..SCP13..U200212-200501

16400RADIATOR ASSY

main16400-21060i2NZFE..NCP10,15..5F199909-200501

sub16400-21120

main16400-21070i1NZFE,2NZFE..NCP1#..4FC199908-200501

sub16400-21071

main16400-21080i1NZFE..NCP13..5F200010-200501

sub16400-21081

main16400-23080i1SZFE..SCP10..5F199901-200501

main16400-23090i1SZFE..SCP10..4FC199901-200112

sub16400-23091

main16400-23091i1SZFE..SCP10..4FC200112-200501

sub16400-23111

main16400-23140i2SZFE..SCP13..U200212-200501

sub16400-23150

main16400-23150i2SZFE..SCP13..CLA200212-200501

main16400-23150i2SZFE..SCP13..U200302-200501

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1NZFE,2NZFE..NCP1#199908-200212

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33370i1SZFE..SCP10199901-200212

main90445-12078i1NZFE,2NZFE..NCP1#199908-200501

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1SZFE..SCP10199901-200501

16471CAP SUB-ASSY, RESERVE TANK

main16471-0J010i1NZFE,2NZFE..NCP1#200212-200306

main16471-23010i1NZFE,2NZFE..NCP1#199901-200501

main16471-23010i1NZFE,2NZFE..NCP1#200212-200306

16502FILLER SUB-ASSY, WATER

main16502-21010i1NZFE,2NZFE..NCP1#199908-200212

16520ACAP SUB-ASSY, WATER FILLER

main16401-62100i1NZFE,2NZFE..NCP1#199908-200212

sub16401-31520

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-23010i1NZFE,2NZFE..NCP1#199901-200212

16535SUPPORT, RADIATOR, LOWER

main90480-40016i1SZFE..SCP10199901-200212

16571HOSE, RADIATOR, INLET

main16571-21020i1NZFE,2NZFE..NCP1#199908-200212

main16571-23040i1SZFE..SCP10199901-200212

main16571-23060i2SZFE..SCP13200212

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i1SZFE,2SZFE..SCP1#199901-200501

main90467-33006i1NZFE,2NZFE..NCP1#199908-200501

main90467-33006i1SZFE..SCP10200110-200212

NO.1 OR NO.2

main90467-34003i1SZFE..SCP10199901-200109

sub90467-34004

main90467-34003i1NZFE,2NZFE..NCP1#199908-200109

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-21020i1NZFE,2NZFE..NCP1#199908-200212

main16572-23020i1SZFE..SCP10..4FC199901-200212

main16572-23030i1SZFE..SCP10..5F199901-200212

main16572-23060i2SZFE..SCP13200212

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i1SZFE..SCP10199901-200501

main90467-33006i1NZFE,2NZFE..NCP1#199908-200212

main90467-34003i1NZFE,2NZFE..NCP1#199908-200212

sub90467-34004

main90467-34003i1SZFE..SCP10199901-200112

sub90467-34004

main90467-34004i1SZFE..SCP10200112-200501

main90467-34004i1NZFE,2NZFE..NCP1#200212

16573BHOSE, RADIATOR, NO.3

main16573-21010i1NZFE,2NZFE..NCP1#199908-200212

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006i1NZFE,2NZFE..NCP1#199908-200212

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-21030i1NZFE,2NZFE..NCP1#199908-200501

main16711-23060i1SZFE..SCP10199901-200501

main16711-23070i2SZFE..SCP13200212-200501

2211

8716

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

9011606127

main90116-06127

9011908A53

main90119-08A53

9012606015

main90126-06015

9012606019

main90126-06019

9017906299

main90179-06299

9162160614

main91621-60614

91631B0616

main91631-B0616

9415180801

main94151-80801

42 parts on this diagram · 6 diagrams in section
