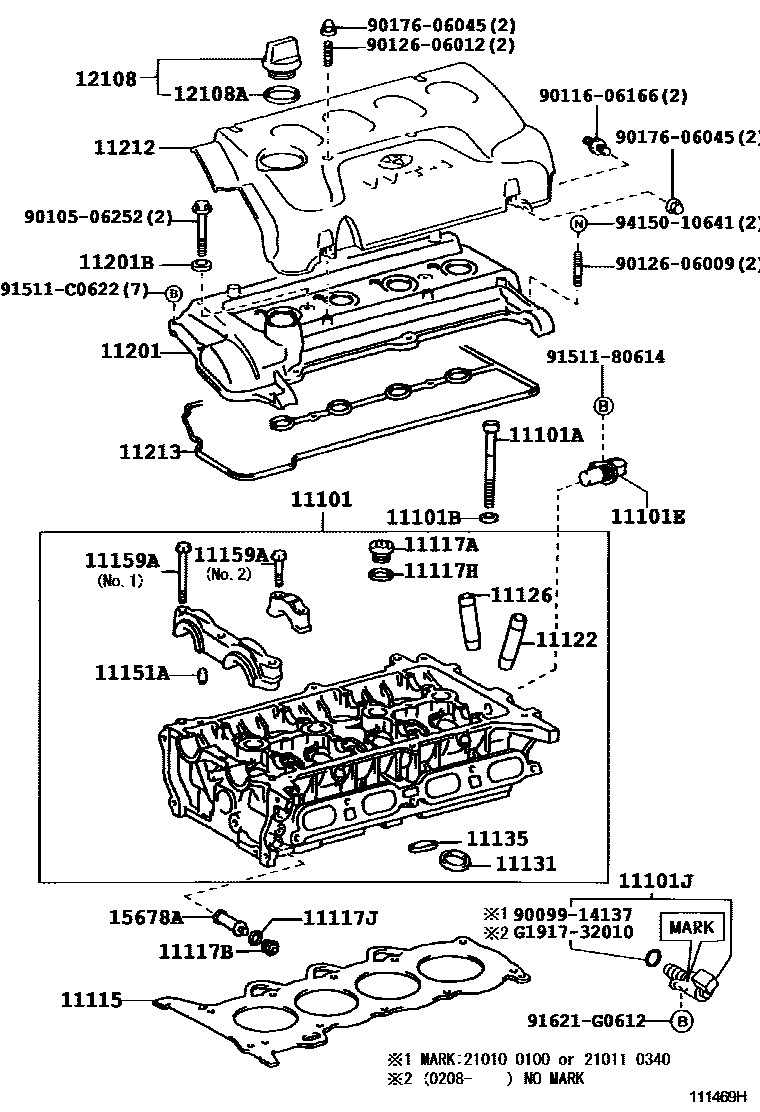

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21030i2NZFE..NCP1#199908-200002

sub11101-21031

main11101-21031i1NZFE,2NZFE..NCP1#200002-200304

sub11101-21033

main11101-21033i1NZFE,2NZFE..NCP1#200304

sub11101-21034

main11101-23030i1SZFE..SCP10199901-200212

sub11101-23060

main11101-23050i2SZFE..SCP13200212-200402

sub11101-23051

main11101-23051i2SZFE..SCP13200402-200412

sub11101-23080

main11101-23060i1SZFE..SCP10200212-200401

sub11101-23070

main11101-23070i1SZFE..SCP10200401

main11101-23080i2SZFE..SCP13200412

sub11101-23904

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126i1NZFE,2NZFE..NCP1#199908-200212

sub90910-02170

main90910-02137i1SZFE..SCP10199901-200001

sub90910-02143

main90910-02143i1SZFE..SCP10200001-200212

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZFE,2NZFE..NCP1#199908-200212

main90201-10136i1SZFE..SCP10199901-200212

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE,2NZFE..NCP1#199901-200212

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21010i1NZFE,2NZFE..NCP1#199908-200112

sub15330-21011

main15330-21011i1NZFE,2NZFE..NCP1#200112-200212

11115GASKET, CYLINDER HEAD

main11115-21030i1NZFE,2NZFE..NCP1#199908-200302

sub11115-21040

main11115-21040i1NZFE,2NZFE..NCP1#200302-200308

sub11115-21050

main11115-21050i1NZFE,2NZFE..NCP1#200308-200501

sub11115-21080

main11115-23030i1SZFE..SCP10199901-200212

main11115-23050i2SZFE..SCP13200212

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14013i1SZFE..SCP10199901-200212

main90341-20002i1NZFE,2NZFE..NCP1#199908-200212

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE,2NZFE..NCP1#199908-200212

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE,2NZFE..NCP1#199908-200212

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE,2NZFE..NCP1#199901-200212

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFE,2NZFE..NCP1#199901-200501

main11122-23020i2SZFE..SCP13200212

main11123-21010i1SZFE..SCP10199901-200501

main11123-23020i2SZFE..SCP13200212

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1SZFE..SCP10199901-200501

main11122-23020i2SZFE..SCP13200212

main11123-21010i1NZFE,2NZFE..NCP1#199901-200501

main11123-23020i2SZFE..SCP13200212

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE,2NZFE..NCP1#199908-200501

sub11131-21021

main11131-23010i1SZFE..SCP10199901-200212

main11131-23020i2SZFE..SCP13200212

main11132-21020i1NZFE,2NZFE..NCP1#199908-200501

sub11132-21021

main11132-23010i1SZFE..SCP10199901-200212

main11132-23020i2SZFE..SCP13200212

11135SEAT, EXHAUST VALVE

main11135-21020i1NZFE,2NZFE..NCP1#199908-200208

sub11135-21041

main11135-21040i1NZFE,2NZFE..NCP1#200208-200501

sub11135-21041

main11135-23020i1SZFE..SCP10199901-200212

sub11135-23050

main11135-23030i2SZFE..SCP13200212

main11135-23050i1SZFE..SCP10200212

main11136-21020i1NZFE,2NZFE..NCP1#199908-200208

main11136-21040i1NZFE,2NZFE..NCP1#200208-200501

main11136-23020i1SZFE..SCP10199901-200212

sub11136-23050

main11136-23030i2SZFE..SCP13200212

main11136-23050i1SZFE..SCP10200212

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZFE,2NZFE..NCP1#199908-200212

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i1NZFE,2NZFE..NCP1#199908-200212

main90119-06884i1SZFE..SCP10199901-200212

main90119-08A29i1NZFE,2NZFE..NCP1#199908-200212

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE,2NZFE..NCP1#199908-200501

sub11201-21051

main11201-23070i1SZFE..SCP10199901-200212

main11201-23080i2SZFE..SCP13200212

sub11201-23081

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1SZFE..SCP10199901-200212

11212COVER, CYLINDER HEAD, NO.2

main11212-21010i1NZFE,2NZFE..NCP1#199908-200304

sub11212-21011

main11212-21030i1NZFE,2NZFE..NCP1#200304-200410

sub11212-21031

main11212-21031i1NZFE,2NZFE..NCP1#200410-200501

sub11212-21032

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE,2NZFE..NCP1#199908-200212

main11213-23020i1SZFE..SCP10199901-200212

main11213-23030i2SZFE..SCP13200212

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE,2NZFE..NCP1#199908-200212

main12180-55010i1SZFE..SCP10199901-200307

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i1NZFE,2NZFE..NCP1#199901-200212

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1SZFE..SCP10199901-200212

9009914137

main90099-14137

9010506252

main90105-06252

9011606166

main90116-06166

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

9151180614

main91511-80614

91511C0622

main91511-C0622

91621G0612

main91621-G0612

9415010641

main94150-10641

G191732010

mainG1917-32010
