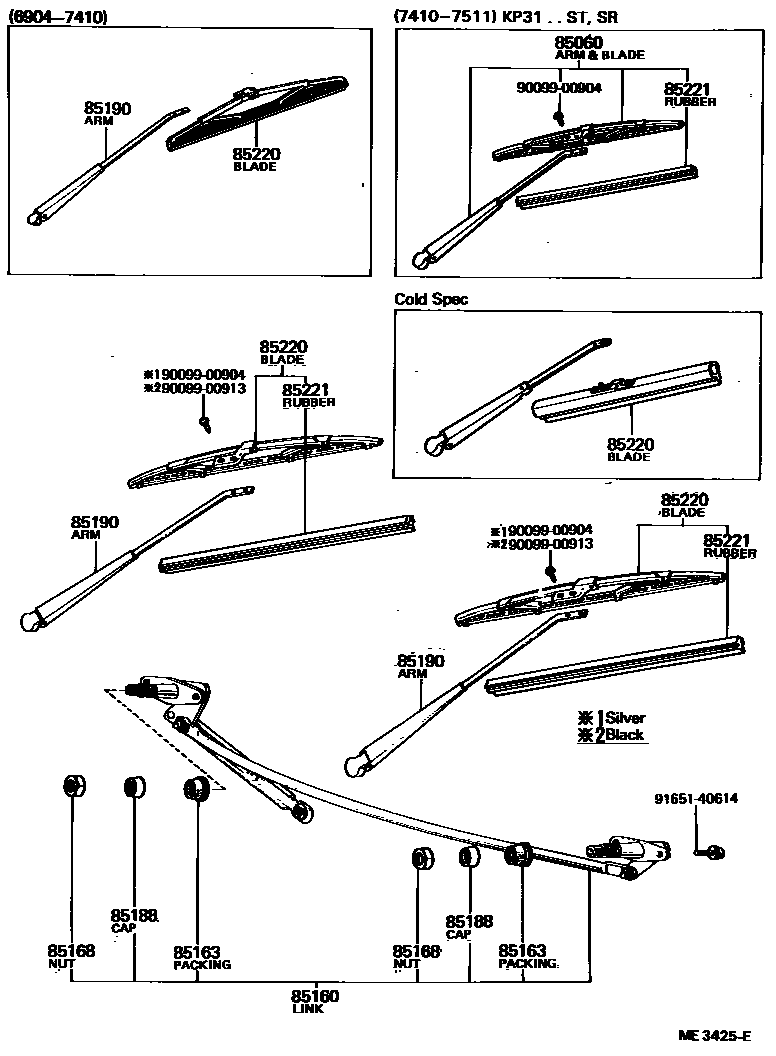

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

main85060-10050iKP31..SR,ST197410-197511

MARK=A

main85060-10080iKP31..SR,ST197410-197511

MARK=B

85160LINK ASSY, WINDSHIELD WIPER

main85160-10052iKP3#,50,UP3#196904-198808

85163PACKING, WINDSHIELD WIPER PIVOT

main85174-10050iKP3#,UP3#196904-197010

main85174-10052iKP3#,50,UP3#197010-198808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90099-05808iKP3#,50,UP3#196904-198808

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main90099-01380iKP3#,50,UP3#196904-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-10070iKP3#..DLX,HDX,STD,XL196904-197410

MARK=A

sub85190-10130

main85190-10090iKP3#,UP3#196904-197410

MARK=B

sub85190-10070

main85190-10130iKP31..S,SR,ST197201-197410

MARK=A

main85190-10140iKP31..S,SR,ST197201-197410

MARK=B

sub85190-10130

main85190-10190iKP3#,50..DLX,HDX,STD,XL197410-197610

sub85190-10210

main85190-10190iKP3#,50197610-198808

MARK=B;MARK=A

sub85190-10210

85220BLADE ASSY, WINDSHIELD WIPER

main85220-10030iKP30,36,37,UP3#196904-197410

sub85220-11H90

main85220-10040iKP31..S,SR,ST197201-197410

main85220-10050iKP3#,50197610-198808

WINTER BLADE

sub85220-10H90

main85220-10060iKP3#,50197410-198808

sub85220-10080

main85220-12050iKP31..SR197103-197112

sub85220-11H90

main85220-20030iKP3#,UP3#196904-196911

WINTER BLADE

sub85220-20031

main85220-20031iKP3#,UP3#196911-197005

WINTER BLADE

sub85220-20032

main85220-20032iKP3#,UP3#197005-197101

WINTER BLADE

sub85220-30063

main85220-20033iKP3#,50,UP3#197101-197610

WINTER BLADE

sub85220-10050

85221BLADE, WINDSHIELD WIPER

main85221-10040iKP3#,50197410-198808

sub85214-68011

sub85221-10H00

9009900904

main90099-00904

9009900913

main90099-00913

9165140614

main91651-40614

11 parts on this diagram · 3 diagrams in section
