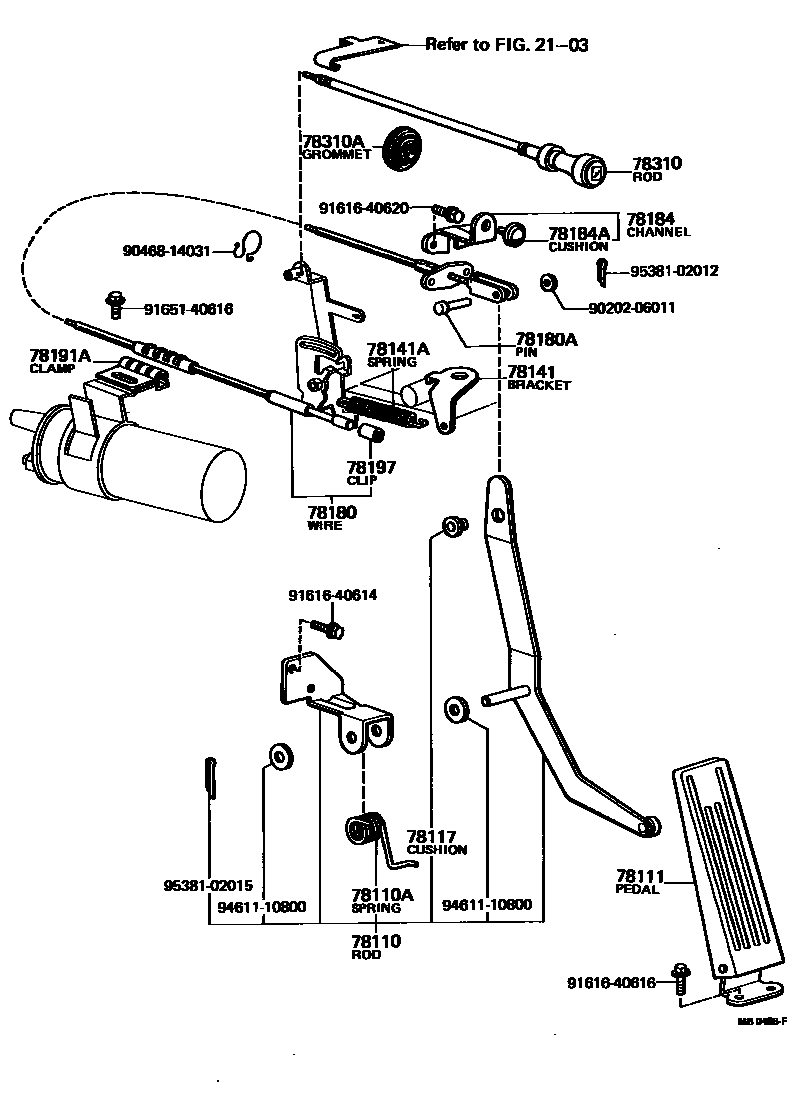

ACCELERATOR LINK

0001 1 0002 1 0004 1

2103

78110ROD ASSY, ACCELERATOR PEDAL

main78102-10040iKP3#,UP3#196904-197112

main78102-10041iKP3#,50197201-198808

main78102-10060iKP31..SR197008-197112

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23204iKP3#,50,UP3#197008-198808

78111PEDAL, ACCELERATOR

main78101-10040iKP3#,50,UP3#196904-198808

78117CUSHION (FOR ACCELERATOR ROD)

main90540-05038iKP3#,50,UP3#196904-198808

78141BRACKET, ACCELERATOR WIRE RETURN SPRING

main78141-10020iUP3#196904-197112

main78141-12011iKP3#196904-197404

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90506-08192iKP30..SL196904-197005

sub90506-07308

main90506-10151iKP3#..DLX,STD196904-197007

sub90506-12336

main90506-10230iUP3#196904-197007

sub90506-12336

main90506-12336iKP3#,UP3#197007-197012

sub90507-12010

main90506-12337iKP31..SR,ST197005-197206

main90507-10017iKP31..SR,ST197206-197310

main90507-12010iKP3#..DLX,HDX,S,STD,XL197012-197404

78180WIRE ASSY, ACCELERATOR

main78180-10010iKP3#..DLX,HDX,STD196904-197404

main78180-10020iKP30,31..SL,SR,ST196904-197310

main78180-10021iKP31..SR,ST197310-197511

main78180-10030iUP3#196904-197112

main78180-10080iKP3#..DLX,HDX,STD,XL197310-197511

main78180-10081iKP37,50197511-197701

main78180-10082iKP3#,50197701-198808

78180APIN, ACCELERATOR WIRE SET

main90240-05072iKP3#,50,UP3#196904-198808

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78184-10901iKP3#,50,UP3#196904-198808

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iKP3#,50,UP3#196904-198808

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78124-10020iKP3#..4F197310-197511

main78124-12010iKP3#..DLX,STD196904-197001

main78124-12020iKP30,31..SL,SR,ST196904-197310

main78124-12030iKP3#..DLX,HDX,S,STD,XL197001-197404

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78125-10020iKP3#..4F197310-197511

main78125-12010iKP30..2FC196904-197404

main78125-12020iKP30,31..SL,SR,ST196904-197310

main90462-16117iUP3#196904-197112

78197CLIP, ACCELERATOR JOINT BALL

main78197-10010iKP3#,UP3#196904-197404

78310CABLE ASSY, CHOKE

main78310-10050iKP3#196904-197010

sub78310-10090

main78310-10051iKP30..2FC197010-197404

main78310-10070iUP3#196904-197010

main78310-10071iUP3#197010-197112

main78310-10110iKP31..SR,ST197310-197404

sub78310-10130

main78310-10120iKP3#..4F..(DLX,HDX,STD,XL)197310-197401

main78310-10120iKP36,37197401-197511

RIGID

main78310-10121iKP3#,50197511-198808

main78310-10130iKP30,31..4F..(DLX,HDX,STD,XL)197401-197511

COLLAPSIBLE

78310AGROMMET, CHOKE CABLE

main90480-33199iUP3#196904-197112

main90480-33200iKP3#,50196904-198808

9020206011

main90202-06011

9046814031

main90468-14031

9161640614

main91616-40614

9161640616

main91616-40616

9161640620

main91616-40620

9165140616

main91651-40616

9461110800

main94611-10800

9538102012

main95381-02012

9538102015

main95381-02015

25 parts on this diagram · 3 diagrams in section
