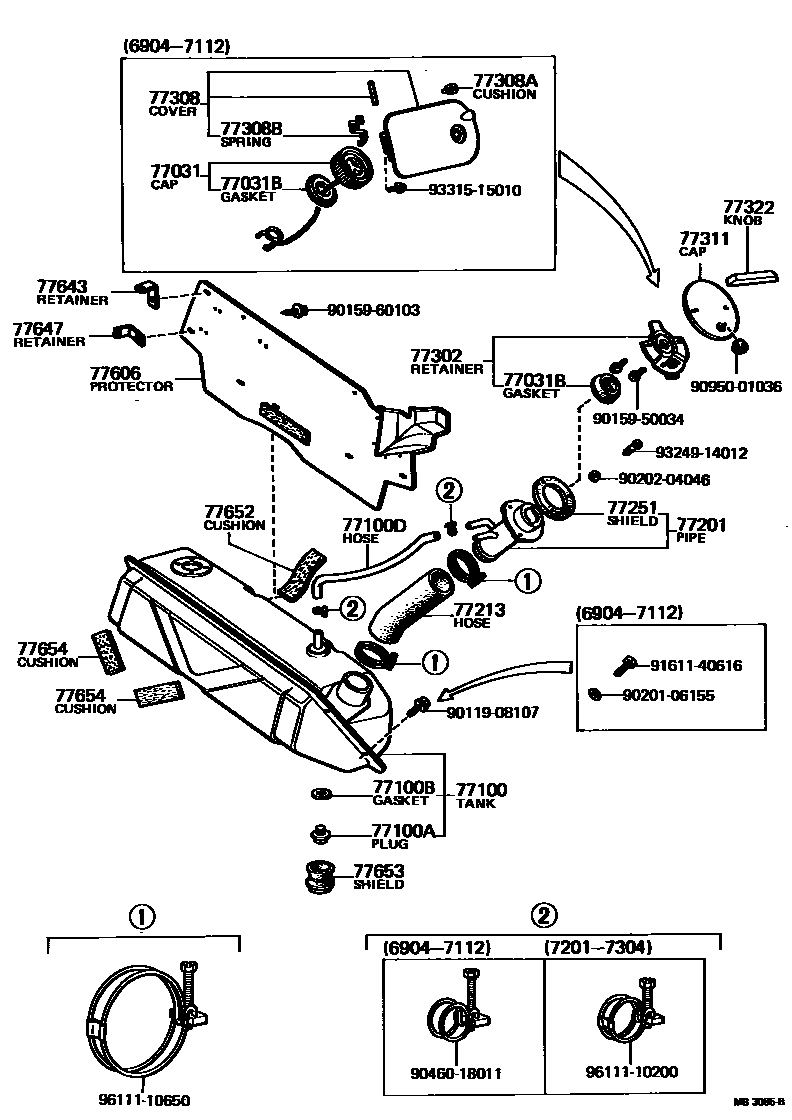

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

77031CAP ASSY, FUEL TANK

main77310-10030iKP3#,UP3#197106-197205

sub77310-14010

main77310-12010iKP3#,UP3#196904-196906

sub77310-12011

main77310-12011iKP3#,UP3#196906-197106

sub77310-10030

main77310-12041iKP36,37,38,39197205-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-10010iKP3#,UP3#197106-197205

main77316-12010iKP3#,UP3#196904-196906

sub77316-12012

main77316-12012iKP3#,UP3#196906-197304

sub77316-10010

main77316-12040iKP36,37197205-198808

77100TANK ASSY, FUEL

main77001-10031iKP30,31,UP30196910-197304

sub77001-10080

sub77213-10013

main77001-10032iKP30,31197304-197511

sub77001-10060

sub77213-10013

main77001-10033iKP50197601-197802

main77001-19045iKP30,UP30196904-196910

sub77001-10080

sub77213-10013

sub90446-16232

main77100-11060iKP36,37,UP36..V196904-197205

main77100-11061iKP36,37..V197205-197304

main77100-11062iKP36,37..V197304-197809

main77100-11070iKP36,37..PIC196911-197205

main77100-96400iKP36,37..PIC197205-197304

main77100-96401iKP36,37,38,39..PIC197304-198808

77100APLUG(FOR FUEL TANK)

main90105-12018iKP3#,50,UP3#196904-198808

77100BGASKET(FOR FUEL TANK)

main90430-12038iKP3#,50,UP3#196904-197705

main90430-12245iKP3#,50197705-198808

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-18869iKP30,31197201-197511

L=850

main90445-18878iKP3#..PIC197205-198201

L=680

main90445-18903iKP36,37..PIC197205-197210

L=900

main90445-18970iKP39197511-198808

main90445-22006iKP50197601-197802

L=405

main90446-09001iKP36,37,UP36..V196904-197205

L=575

main90446-09132iKP36,37..PIC196911-197205

L=500

main90446-16160iKP30,UP30196904-196910

L=625

sub90446-16241

main90446-16232iKP30,31,UP30196910-197112

L=850

sub90445-18853

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10031iKP30,31197201-197304

main77201-10050iKP30,31197304-197511

main77201-10051iKP50197601-197802

main77201-10901iKP30,31,UP30196904-197112

main77201-11071iKP36,37197205-197809

main77201-11901iKP36,UP36196904-196909

sub77201-11902

sub90446-09001

sub90446-18206

main77201-11902iKP36,37,UP36196909-197205

main77201-96400iKP36,37,38,39..PIC197210-198808

77213HOSE, FUEL TANK SUB INLET

main77213-10010iKP30,31,UP30196904-197112

main77213-10011iKP30,31197201-197209

sub77213-10012

main77213-10012iKP30,31197209-197511

main77213-10013iKP50197601-197802

main77213-11040iKP36,37,UP36..V196904-197209

sub77213-11041

main77213-11041iKP36,37..V197209-197809

main77213-11050iKP36,37..PIC196911-197206

sub77213-96400

main77213-96400iKP36,37,38,39..PIC197206-198808

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iKP3#,50,UP3#196904-198808

77302RETAINER, FUEL TANK CAP

main77302-10010iKP30..STD197201-197304

sub77302-10011

main77302-10011iKP30..STD197304-197404

main77302-10012iKP30..STD197404-197511

main77302-10020iKP30,31..DLX,HDX,S,SR,ST,XL197201-197304

sub77302-10021

main77302-10021iKP30,31..DLX,HDX,S,SR,ST,XL197304-197404

main77302-10022iKP30,31..DLX,HDX,SR,ST,XL197404-197802

77308COVER SUB-ASSY, FUEL INLET BOX

main77308-10010iKP30,31,UP30..SR,STD196904-197112

main77308-10020iKP30,31,UP30..DLX,HDX,SL196904-197112

main77308-11010iKP36,UP36..V..STD196904-197511

main77308-11020iKP37..V196904-197809

main77308-11030iKP36..PIC..STD196911-197511

main77308-11040iKP36..PIC..DLX196911-198808

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05040iKP3#,UP3#196904-198808

sub90541-05018

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main90508-16163iKP3#,UP3#196904-198808

77311CAP, FUEL TANK

main77311-10020iKP30,31197201-197404

main77311-10021iKP30,31..DLX,SR,ST,STD197404-197802

main77311-10030iKP50..XL197404-197802

77322KNOB, FUEL TANK CAP

main77322-10010iKP30,31197201-197404

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10010iKP30,31,UP30196904-197112

main77606-10011iKP30,31,50197201-197802

77643RETAINER, FUEL TANK PROTECTOR

main77643-12011iKP30,31,UP30196904-197112

main77648-10010iKP30,31,50197201-197802

77647RETAINER, FUEL TANK PROTECTOR, SIDE

main77647-10010iKP30,31,50,UP30196904-197802

77652CUSHION, FUEL TANK, NO.1

main77651-13010iKP36,37,UP36..V196904-197809

main77652-10010iKP30,31,50,UP30196904-197802

77653SHIELD, FUEL TANK DRAIN PLUG

main77653-10010iKP30,31,50,UP30196904-197802

77654CUSHION, FUEL TANK, NO.2

main77654-10010iKP30,31,50,UP30196904-197802

9011908107

main90119-08107

9015950034

main90159-50034

9015960103

main90159-60103

9020106155

main90201-06155

9020204046

main90202-04046

9046018011

main90460-18011

9095001036

main90950-01036

9161140616

main91611-40616

9324914012

main93249-14012

9331515010

main93315-15010

9611110200

main96111-10200

9611110650

main96111-10650

33 parts on this diagram · 16 diagrams in section
