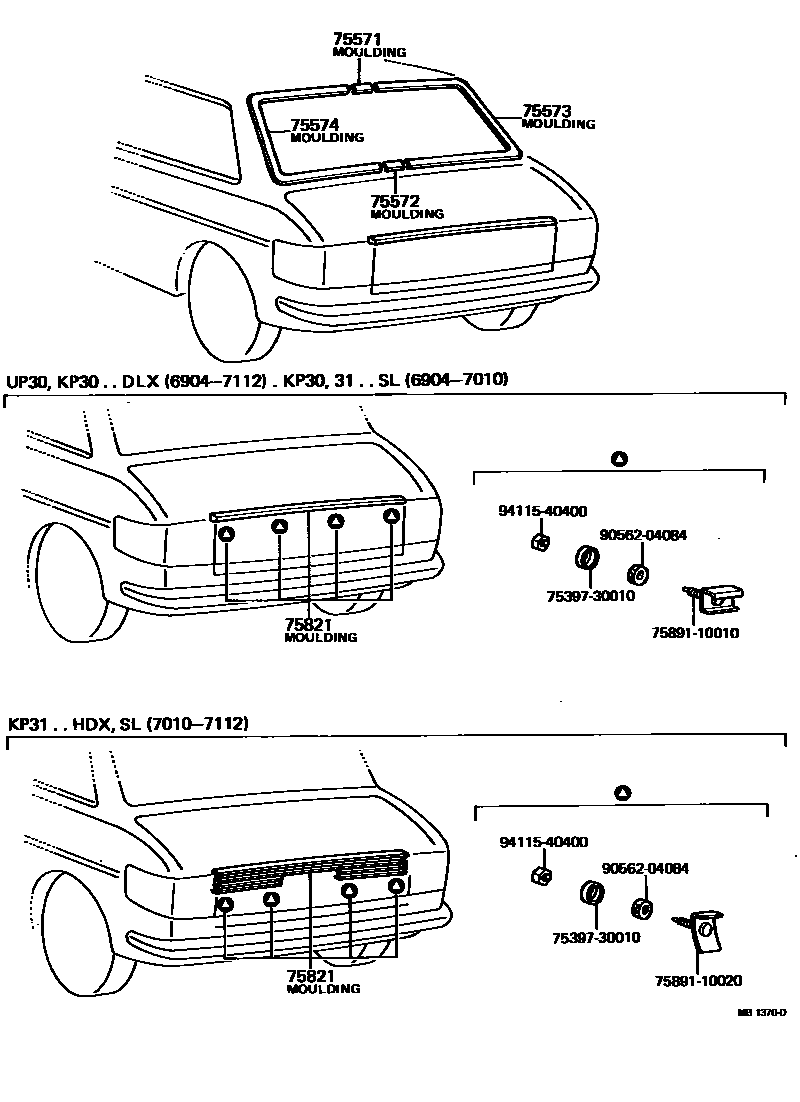

REAR MOULDING

0001 1 0002 1 0003 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75536-10010iKP3#..(SED,V)..(DLX,HDX,S,SR,ST,XL)196904-197809

sub75581-10010

75572MOULDING, BACK WINDOW, LOWER

main75536-10010iKP37..V..(DLX,HDX)196904-197809

sub75581-10010

main75575-10010iKP50..DLX,HDX,XL197201-197802

sub75532-96211

75573MOULDING, BACK WINDOW SIDE, RH

main75571-10020iKP30,31..DLX,HDX,S,SR,ST,XL197201-197802

main75572-10020iKP30,31,UP30..DLX,HDX,SL196904-197112

main75572-11020iKP36,37,UP36..V..(DLX,HDX)196904-197809

75574MOULDING, BACK WINDOW SIDE, LH

main75572-10030iKP30,31..DLX,HDX,S,SR,ST,XL197201-197802

main75573-10020iKP30,31,UP30..DLX,HDX,SL196904-197112

main75573-11020iKP37..V..(DLX,HDX)196904-197809

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75801-19015iKP30,UP30..DLX,SL196904-197112

main75801-19035iKP31..HDX197010-197112

7539730010CLIP, BACK DOOR MOULDING, NO.3

main75397-30010

7589110010CLIP, OUTSIDE MOULDING, NO.6

main75891-10010

7589110020CLIP, OUTSIDE MOULDING, NO.6

main75891-10020

9056204084

main90562-04084

9411540400

main94115-40400

10 parts on this diagram · 3 diagrams in section
