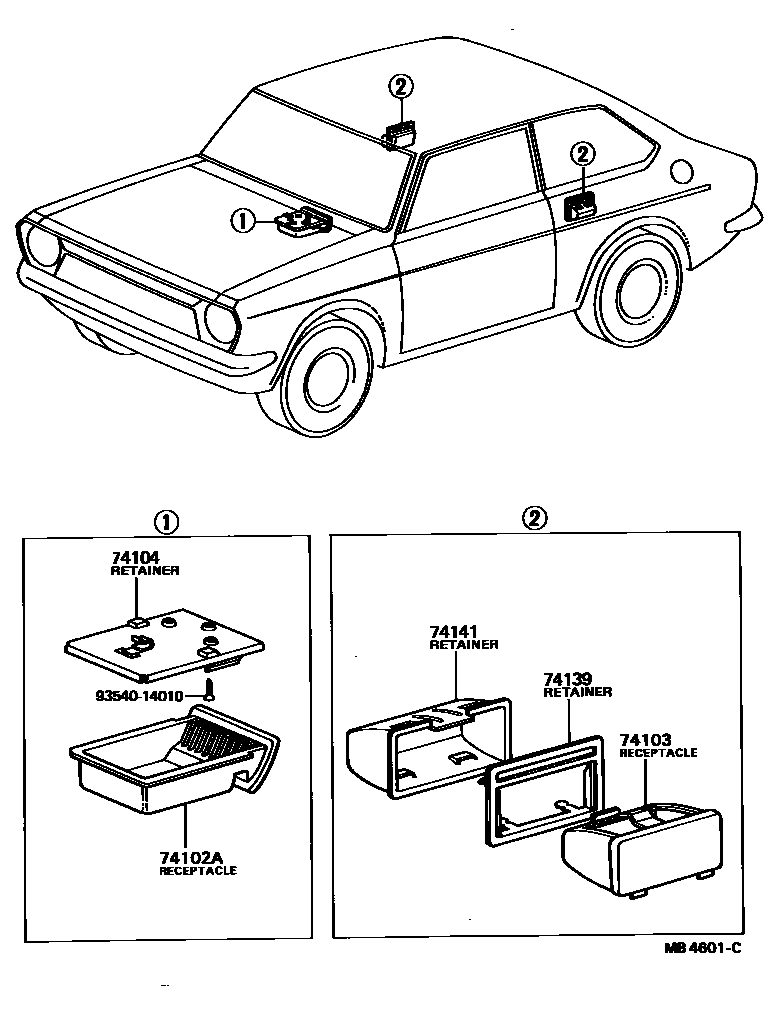

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74112-10030iKP3#,UP3#196904-197010

main74112-10031iKP3#,UP3#..DLX,HDX,STD197010-198808

main74112-10041iKP31..SR197010-197107

sub74112-10031

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74105-10010-01iKP37,50..(SED,V)..(DLX,HDX,XL)197703-197809

BLACK,BLACK,TRIM2#

sub74105-10010

main74105-10010-05iKP50..DLX,HDX,XL197703-197802

BEIGE,BEIGE,TRIM4#

sub74105-10010

main74106-10040iKP3#..(SED,V)..(DLX,HDX,ST,XL)196904-197701

main74106-10040-01iKP37,50..(SED,V)..(DLX,HDX,XL)197701-197703

BLACK,BLACK,TRIM2#

sub74106-10040

main74106-10040-06iKP50..DLX,HDX,XL197701-197703

LIGHT BROWN,BROWN,TRIM4#

sub74106-10040

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10020iKP3#,UP3#196904-197010

main74104-10021iKP3#,50,UP3#197010-198808

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iKP37,50..(SED,V)..(DLX,HDX,XL)197703-197809

main74139-10011iKP3#,UP3#..(SED,V)..(DLX,HDX,SL)196904-197703

sub74135-10030

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iKP37,50..(SED,V)..(DLX,HDX,XL)197703-197809

main74141-10020iKP3#,UP3#..(SED,V)..(DLX,HDX,SL)196904-197703

sub74137-10030

9354014010

main93540-14010

6 parts on this diagram · 1 diagram in section
